Поз.
Артикул
Описание

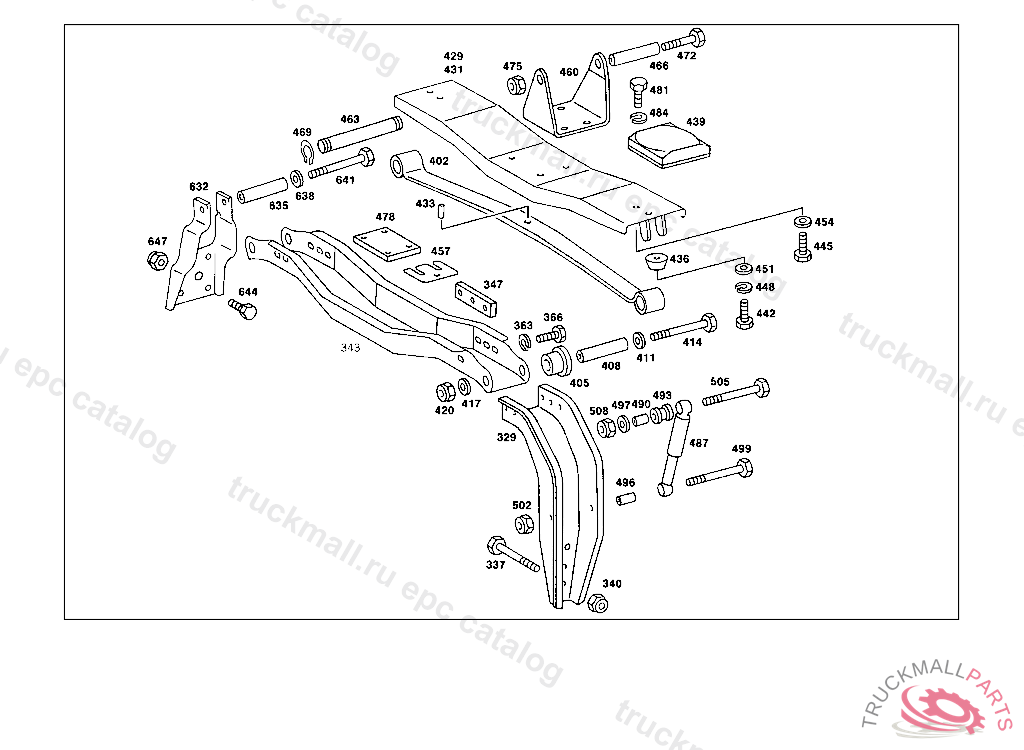

329
CONSOLE CAB SUSPENSION,REAR
329
CONSOLE CONSOLE TO FRAME,4 330046
337
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
337
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
337
SCREW , Replaced By: N308676014020
340
NUT BRACKET TO SIDE MEMBER
340
NUT , Replaced By: N910113014001
343
STRUT , Replaced By: A6558910224, +002A6558910118
343
STRUT CAB MOUNTING,REAR (LEAF SPRING SUSPENSION)
347
SHIM STRUT TO CONSOLE
363
LOCK WASHER FITTING TO BRACKET
366
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
366
SCREW , Replaced By: N308676012012
402
SPRING , Replaced By: A3878911051
402
SPRING (LEAF SPRING),CAB SUSPENSION
402
SPRING (LEAF SPRING),CAB SUSPENSION
405
BUSHING LEAF SPRING
408
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
411
WASHER LEAF SPRING TO STRUT, DISCONTINUED,PART IS NO LONGER REQUIRED
414
SCREW SPRING TO STRUT, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB5 215244
417
WASHER COVER PLATE TO FRAME
420
NUT SUPPORT TO SIDE MEMBER
429
RAIL CAB SUSPENSION,REAR
429
RAIL CAB SUSPENSION,REAR
429
RAIL CAB SUSPENSION,REAR
429
RAIL (CONNECTING RAIL),4 330046
429
RAIL , Replaced By: A3978900122
429
RAIL , Replaced By: A6558900322
429
RAIL , Replaced By: A6558900122
429
RAIL , Replaced By: A3878901222
431
RAIL CAB SUSPENSION,REAR
431
RAIL , Replaced By: A3978900122
431
RAIL , Replaced By: A6558900322
433
CYLINDRICAL PIN RIGHT FRONT
436
BUFFER RAIL STOP
436
BUFFER , Replaced By: A3878910323
439
MOUNTING CAB SUSPENSION,REAR
442
SCREW BUFFER AND MOUNTING TO RAIL M 8X18
442
SCREW BUFFER AND MOUNTING TO RAIL M 8X20
442
SCREW BUFFER AND MOUNTING TO RAIL
445
SCREW PIPE CLAMP
445
SCREW , Replaced By: N304017008021
448
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
451
WASHER BRACKET TO CROSS MEMBER
454
WASHER EXHAUST MUFFLER TO STRAP
454
WASHER , Replaced By: N000125008443
457
SHIM ,4 330046
460
MOUNTING CAB MOUNTING,REAR,4 972621
460
MOUNTING CAB MOUNTING,REAR,4 972621
460
MOUNTING CAB LOCKING MECHANISM
460
MOUNTING CAB LOCKING MECHANISM
460
MOUNTING , Replaced By: A3878918120
463
PIN BEARING BRACKET,4 972621
463
PIN BEARING BRACKET,4 972621
466
SPACER TUBE BEARING BRACKET
466
SPACER TUBE BEARING BRACKET
469
LOCK RING BEARING BRACKET,4 972621
472
SCREW SPACER TUBE TO MOUNTING
472
SCREW SPACER TUBE TO MOUNTING
472
SCREW , Replaced By: N000960016251
475
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
475
NUT COMBINATION CYLINDER TO BEARING BRACKET
478
PLATE MOUNTING AND RAIL TO LEAF SPRING
481
SCREW SHIFTING ROD TO SHIFT LEVER
481
SCREW MOUNTING AND RAIL TO LEAF SPRING
481
SCREW STRAP TO BRACKET
481
SCREW , Replaced By: N000933010192
484
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
487
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
487
SHOCK ABSORBER CAB SUSPENSION,REAR,4 330046
487
SHOCK ABSORBER CAB SUSPENSION,REAR,4 330046
487
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
487
SHOCK ABSORBER , Replaced By: A0008911805
490
BUSHING , Replaced By: A0008910617
490
BUSHING , Replaced By: A0008910117
490
BUSHING ,4 330046
490
BUSHING
493
RUBBER MOUNTING ,4 330046
493
RUBBER MOUNTING
493
RUBBER MOUNTING , Replaced By: A0008910501
493
RUBBER MOUNTING , Replaced By: A0008910001
496
SPACER TUBE MOUNTING TO CONSOLE
496
SPACER TUBE SHOCK ABSORBER TO RAIL
496
SPACER TUBE MOUNTING TO CONSOLE
496
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
496
SPACER TUBE VIBRATION ABSORBER,4 658226
497
WASHER VIBRATION ABSORBER,4 330046
499
SCREW , Replaced By: N000960018072
499
SCREW , Replaced By: N308676018010
499
SCREW , Replaced By: N000960018142
499
SCREW VIBRATION ABSORBER TO CONNECTOR
499
SCREW VIBRATION ABSORBER TO CONSOLE
499
SCREW SHOCK ABSORBER TO CONSOLE M 18X180
499
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
499
SCREW SHOCK ABSORBER TO RAIL
499
SCREW SHOCK ABSORBER TO RAIL M 18X70
502
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
502
NUT , Replaced By: N910113018004
505
SCREW , Replaced By: N308676018010
505
SCREW , Replaced By: N000960018142
505
SCREW SHOCK ABSORBER TO RAIL
505
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
505
SCREW VIBRATION ABSORBER TO CONNECTOR
508
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
508
NUT , Replaced By: N910113018004
632
BRACKET , Replaced By: A6243230340
632
BRACKET ,4 844252, Replaced By: A6203230040, +002A3939900240, +001N000960016065
632
BRACKET ,4 737009 MODELS 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB, Replaced By: A3953230640, +002A3878911183, +001N000960016175
632
BRACKET ,4 330046, Replaced By: A3953230640, +002A3878911153, +001N000960016175
632
BRACKET RIGHT SHOCK ABSORBER
635
SPACER TUBE SHOCK ABSORBER TO BRACKET
638
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
641
SCREW SHOCK ABSORBER TO CONSOLE,TOP
641
SCREW SHOCK ABSORBER TO BRACKET M 16X95, MODELS 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB4 844253
644
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
644
SCREW , Replaced By: N308676014020
647
NUT , Replaced By: N910113014001
647
NUT BRACKET TO SIDE MEMBER
999
PIN , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
MOUNTING SPRING AND STABILIZER,RIGHT
999
MOUNTING SPRING AND STABILIZER,LEFT
999
STABILIZER , Replaced By: A6528900104
999
CONSOLE CAB SUSPENSION,FRONT RIGHT
999
CONSOLE CAB SUSPENSION,FRONT LEFT
999
LEVER CAB LOCKING MECHANISM
999
BUSHING ON TOGGLE LEVER,FOR HYDRAULIC CYLINDER
999
MOUNTING CAB TILTING LEVER
999
BUSHING TILTING LEVER
999
MOUNTING RIGHT VIBRATION ABSORBER
999
MOUNTING LEFT VIBRATION ABSORBER
999
MOUNTING CAB, RIGHT
999
MOUNTING CAB,LEFT
999
MOUNTING , Replaced By: A6558910420
999
MOUNTING , Replaced By: A6558910320
999
MOUNTING CAB SUSPENSION,FRONT RIGHT, ON VEHICLES LESS DB CAB 10/20 UP TO IDENT NO. 4 358957, 50/60 UP TO IDENT NO. 4 362764
999
MOUNTING CAB SUSPENSION,FRONT LEFT, ON VEHICLES LESS DB CAB4 358957
999
MOUNTING LEFT SIDE MEMBER
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
WASHER , Replaced By: A4432610076
999
WASHER STABILIZER TO BEARING
999
BRACKET BUFFER
999
SHIM , Replaced By: A3878910498
999
SHIM MOUNTING TO CONSOLE
999
SPACER TUBE MOUNTING TO CONSOLE
999
SPRING , Replaced By: A3878910551, +002A3638910617, +001N071412008200
999
RAIL , Replaced By: A3878901222
999
ADHESIVE FOIL GUIDE SIGN
999
BEARING BRACKET HYDRAULIC CYLINDER
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
STRUT BUMPER AT TORSION BAR
999
WASHER BEARING BRACKET
999
WASHER , Replaced By: N000125013008
999
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6203170176
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
BUSHING HOLLOW RUBBER SPRING
999
BUFFER (HOLLOW RUBBER SPRING),CAB
999
FLANGE HOLLOW RUBBER SPRING
999
BUFFER TILTING LEVER
999
MOUNTING (RUBBER BUFFER)
999
WASHER BRACKET TO SIDE MEMBER,5 703114
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
CYLINDER , Replaced By: A0015534205, +001A0005537901
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
PUMP , Replaced By: A0005536501
999
PUMP , Replaced By: A0005536801
