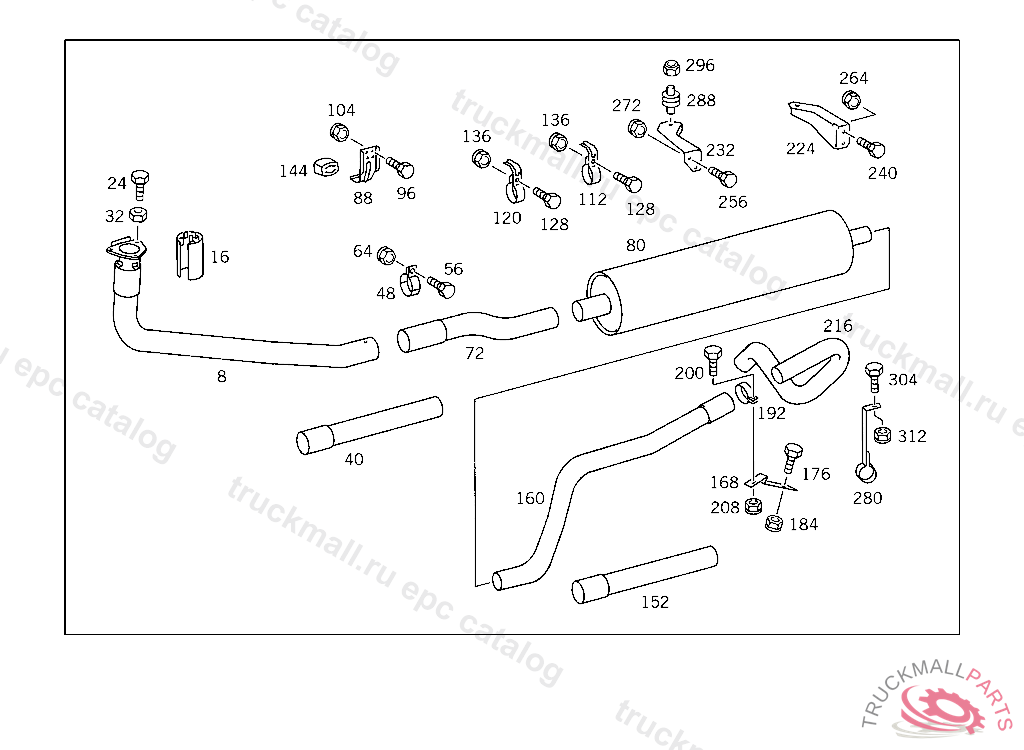

Поз.
Артикул
Описание
8
EXHAUST PIPE FRONT
16
PROTECTIVE PLATE FRONT EXHAUST PIPE
24
SCREW CONNECTOR TO EXHAUST MANIFOLD
32
NUT STRAP TO SUPPORT,5 149419
40
CONNECTOR INTERMEDIATE PIECE,FRONT
48
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
56
SCREW SUPPORT TO CROSS MEMBER M 10X28
64
NUT , Replaced By: N910113010000
64
NUT STRAP TO BRACKET
72
FRONT EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER
80
EXHAUST MUFFLER
88
SUPPORT EXHAUST
96
SCREW BRACKET TO CROSS CONNECTION STRUT
96
SCREW , Replaced By: N304017008034
104
NUT , Replaced By: N913004008001
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
112
BRACKET TAIL PIPES TO BRACKET
128
SCREW SUPPORT TO CROSS MEMBER M 10X28
136
NUT STRAP TO BRACKET
136
NUT , Replaced By: N910113010000
144
DAMPING PAD PARTICLE FILTER
232
SUPPORT EXHAUST PIPE
256
SCREW BRACKET TO CROSS CONNECTION STRUT
256
SCREW , Replaced By: N304017008034
272
NUT , Replaced By: N913004008001
272
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
280
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
280
BRACKET , Replaced By: A3834927941
288
RUBBER BUFFER BRACKET TO SUPPORT
296
NUT STRAP TO BRACKET
296
NUT , Replaced By: N910113010000
999
REAR EXHAUST PIPE
