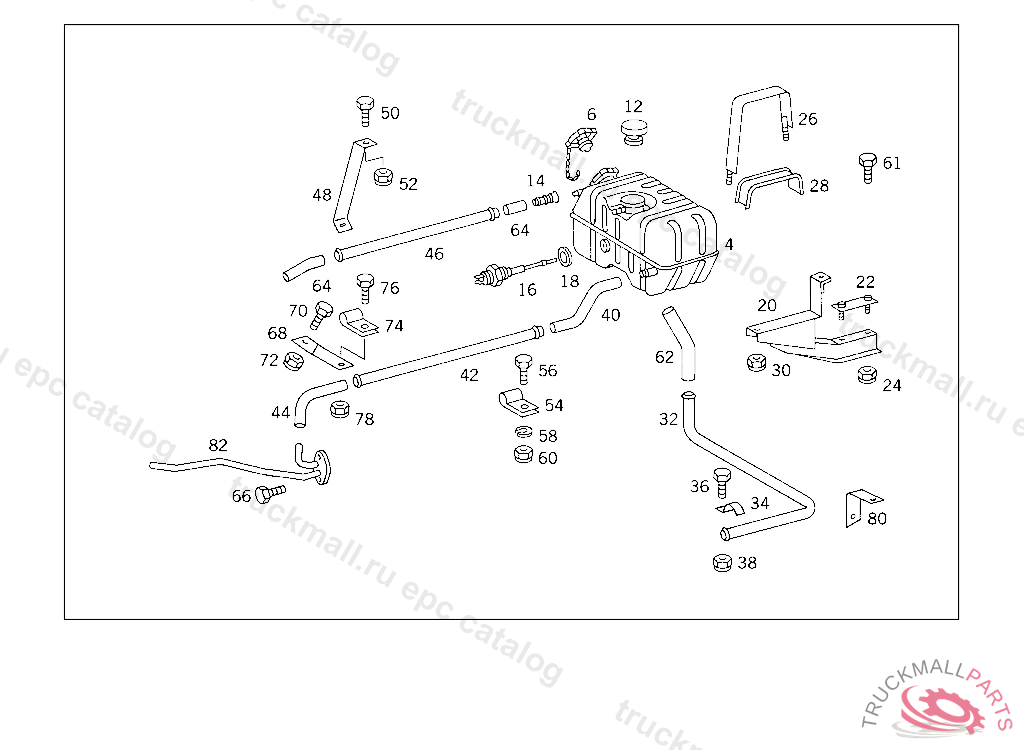

Поз.
Артикул
Описание
4
TANK IN ENGINE TUNNEL
4
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 661211, Replaced By: A3815001349
6
RADIATOR CAP FILLER NECK
6
RADIATOR CAP
6
RADIATOR CAP FILLER NECK
12
RADIATOR CAP
14
DRAIN PIPE
16
SENDER UNIT WATER LEVEL SENSOR
16
SENDER UNIT , Replaced By: A0095426417
18
SEAL RING INJECTION PUMP
20
SUPPORT EXPANSION TANK
22
BRACKET STRUT TO CROSS MEMBER
24
NUT STRAP TO BRACKET
24
NUT , Replaced By: N910113010000
26
BRACKET (STRAP)
28
PAD EXPANSION TANK TO SUPPORT
30
NUT , Replaced By: N913004008001
30
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
32
COOLING WATER PIPE FROM EXPANSION TANK TO WATER PUMP 1780 MM
32
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK 1490 MM
32
COOLING WATER PIPE FROM EXPANSION TANK TO WATER PUMP 1640 MM
32
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK 1100 MM
34
CLAMP COOLING WATER LINE TO BRACKET,5 022370
36
SCREW PIPE CLAMP
36
SCREW , Replaced By: N304017008021
38
NUT , Replaced By: N913004008001
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
40
HOSE ENGINE BREATHING
40
HOSE , Replaced By: A3525010982
42
BREATHER PIPE DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK 750 MM
42
BREATHER PIPE FROM ENGINE TO EXPANSION TANK 640 MM
42
BREATHER PIPE ENGINE BREATHING 810 MM
42
BREATHER PIPE DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK 710 MM
42
BREATHER PIPE DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK 830 MM,4 635938
44
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
46
BREATHER PIPE FROM RADIATOR TO EXPANSION TANK 1290 MM,4 635939
46
BREATHER PIPE FROM RADIATOR TO EXPANSION TANK 1365 MM
46
BREATHER PIPE FROM RADIATOR TO EXPANSION TANK 1480 MM
48
BRACKET
50
SCREW LICENSE PLATE TO BRACKET
50
SCREW , Replaced By: N304017006020
52
NUT , Replaced By: N913004006001
52
NUT PUMP TO BRACKET
54
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
56
SCREW COVER PLATE TO BRACKET
58
LOCK WASHER WIRE CABLE TO LEVER
60
NUT PUMP TO BRACKET
60
NUT , Replaced By: N913004006001
61
SCREW , Replaced By: N000960018072
61
SCREW VIBRATION ABSORBER TO CONSOLE
62
HOSE FROM WATER PUMP TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023 FOR USE WITH SHORT MERCEDES-BENZ CAB
64
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
64
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
66
SCREW COVER PLATE TO BRACKET
68
BRACKET BRACKET TO ENGINE
70
SCREW COVER PLATE TO BRACKET
72
NUT , Replaced By: N913004006001
72
NUT PUMP TO BRACKET
74
CLAMP LINE MOUNTING
74
CLAMP DELIVERY AND SUCTION LINES TO STEERING
74
CLAMP , Replaced By: A6739950001
76
SCREW COVER PLATE TO BRACKET
78
NUT , Replaced By: N913004006001
78
NUT PUMP TO BRACKET
80
BRACKET COOLING WATER LINE TO FRAME
82
FLANGE ENGINE BREATHING
999
BRACKET , Replaced By: A3604292940
999
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
999
TANK , Replaced By: A3815000749
999
TANK AT CAB REAR PANEL, 415 5 014668 416 5 000515 417 4 972023
999
TANK
999
SUPPORT , Replaced By: A3815001227
999
SHIM , Replaced By: A3815010295
999
SHIM , Replaced By: A3815010495
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK 970 MM
999
BRACKET (STRAP), 415 5 014668 416 5 000515 417 4 972023
999
BRACKET EXPANSION TANK
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 1215 MM, FOR USE WITH MERCEDES-BENZ CAB,FROM IDENT NO.4 282787
