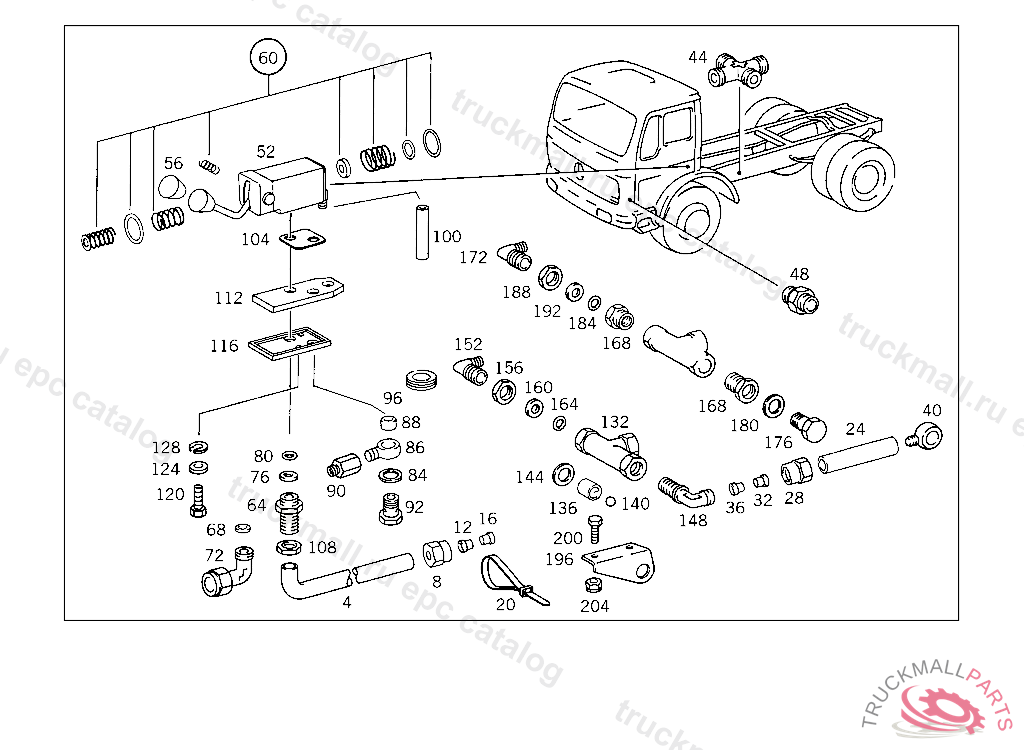

Поз.
Артикул
Описание
4
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
UNION NUT LINE CONNECTION
8
UNION NUT , Replaced By: N915017008100
12
GLAND LINE CONNECTION
16
SLEEVE LINE CONNECTION
20
LOOM TIE LINE MOUNTING
20
LOOM TIE LINE MOUNTING 280 MM
24
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
24
HOSE , Replaced By: A0009872827
28
UNION NUT LINE CONNECTION, Replaced By: N000000006239
28
UNION NUT LINE CONNECTION
32
SEAL CONE LINE CONNECTION
32
GLAND , Replaced By: A0019901967
36
SLEEVE LINE CONNECTION
40
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
40
BANJO UNION , Replaced By: N915052009009
44
CROSS FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
48
FITTING LINE CONNECTION
48
FITTING LINE CONNECTION, Replaced By: N000000006446
52
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034301781
56
HANDLETO 000 430 78 71
60
REPAIR KIT , Replaced By: A0034305381
60
REPAIR KIT , Replaced By: A0014308760
60
REPAIR KIT , Replaced By: A0014300760
60
REPAIR KIT EXTENSIBLE BRAKE VALVE
64
FITTING HYDRAULIC LINE TO BRACKET,K 130132
68
SEAL RING FUEL LINE TO FEED PUMP
72
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
76
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
80
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
84
SEAL RING FUEL LINE TO FEED PUMP
86
BANJO UNION EXTENSIBLE BRAKE VALVE,CONNECTION: "20"
88
SPACER TUBE AT BRAKE VALVE, NOT USED
88
SPACER TUBE , Replaced By: A3124231453
90
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
90
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
92
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
92
HOLLOW SCREW FUEL LINE TO FEED PUMP
92
HOLLOW SCREW , Replaced By: N915036010108
96
GROMMET HAND BRAKE VALVE BLEEDING,4 665938
100
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
104
SHIM EXTENSIBLE BRAKE VALVE TO CAB,4 665938
108
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
112
SHIM EXTENSIBLE BRAKE VALVE TO CAB,4 3141804 665938
116
SHIM HAND BRAKE VALVE
120
SCREW LICENSE PLATE TO BRACKET
120
SCREW , Replaced By: N304017006020
124
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
124
WASHER COMPRESSED AIR LINE TO BRACKET
128
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
132
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
132
VALVE TWO-WAY VOSS
136
VALVE , Replaced By: A0004290782
136
VALVE , Replaced By: A0004291182
136
VALVE BODYTO 002 429 95 44
140
BALLTO 003 429 22 44
144
GASKETTO 003 429 22 44
148
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
152
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
152
ELBOW FITTING , Replaced By: A0019904371
156
NUT CHECK VALVE TO AIR RESERVOIR
160
THRUST RING CHECK VALVE TO AIR RESERVOIR
160
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
164
O-RING CHECK VALVE TO AIR RESERVOIR
168
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
172
ELBOW FITTING RELAY VALVE,CONNECTION: "20"
176
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
180
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
184
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
188
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
192
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
196
BRACKET , Replaced By: A3854290840
196
BRACKET (REAR CROSS MEMBER)
200
SCREW , Replaced By: N304017008034
204
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
204
NUT , Replaced By: N913004008001
999
SLEEVE , Replaced By: N915062006000
999
BUSHING , Replaced By: N915062009000
999
FITTING , Replaced By: A0019972572
999
HOLLOW SCREW , Replaced By: N915036012101
