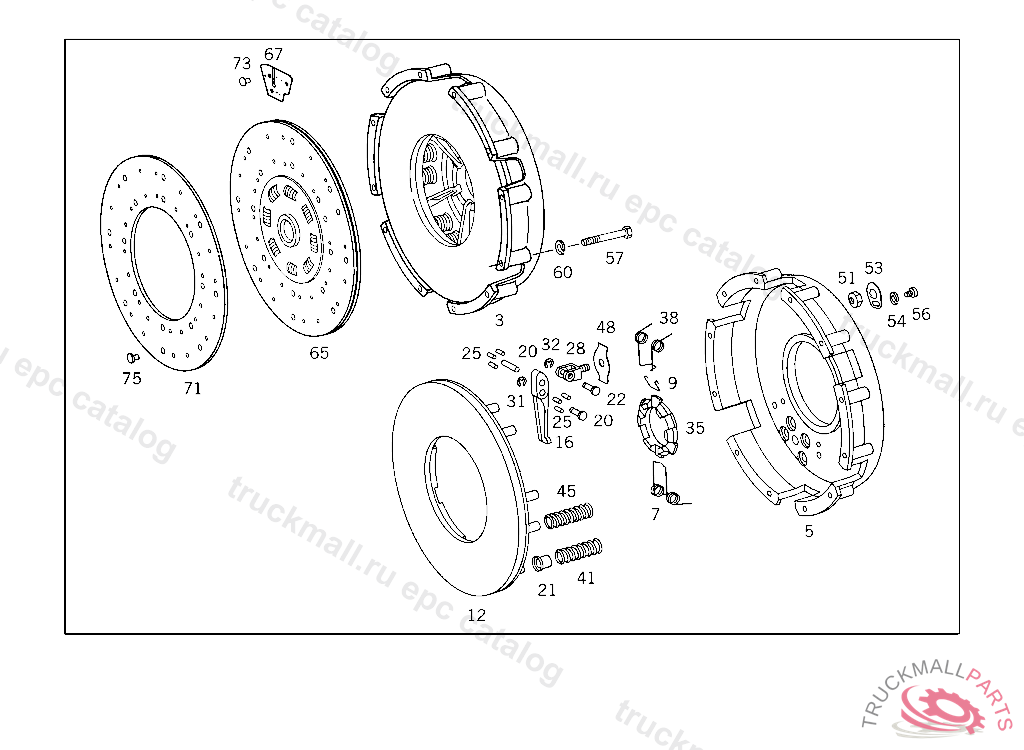

Поз.
Артикул
Описание
3
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
3
CLUTCH PRESSURE PLATE , Replaced By: A0032502504
3
CLUTCH PRESSURE PLATE , Replaced By: A0032502504
5
HOUSING
7
SPRING SUSPENDED BELOW LEAF SPRING
7
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
9
CLAMP RELEASE FLANGE TO RELEASE LEVER
12
PRESSURE PLATE
16
RELEASE LEVER CLUTCH ACTUATION
20
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
20
SPINDLE , Replaced By: A0002520616
21
SLEEVE CLUTCH PRESSURE PLATE
22
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
22
SPINDLE , Replaced By: A0002522816, +001A1249945241
25
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
28
BRACKET RELEASE LEVER
31
LOCK PLATE LEVER TO BRACKET
32
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
32
SPRING SUSPENDED BELOW LEAF SPRING
32
LOCK PLATE RELEASE LEVER TO SHAFT
35
FLANGE
35
FLANGE , Replaced By: A0002522145
38
SPRING , Replaced By: A0002523227
41
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
45
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
48
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
48
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
51
NUT FOR BRACKETS
51
NUT , Replaced By: A0002523072
53
LOCK FOR BRACKETS
54
LOCK WASHER BRACKET TO STEERING COLUMN END
56
SCREW RELEASE LEVER,BRACKET
57
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
60
SCREW , Replaced By: N304017010055
60
SCREW , Replaced By: N304017010050
65
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0072500803
65
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504603
65
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504503
65
CLUTCH DISC , Replaced By: A0052506403
65
CLUTCH DISC , Replaced By: A0022509803
65
CLUTCH DISC
65
CLUTCH DISC
65
CLUTCH DISC ASBESTOS-FREE LINING
65
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
67
LEAF SPRING
67
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
71
CLUTCH LINING , Replaced By: A0012522910
71
CLUTCH LINING , Replaced By: A0012522910
71
CLUTCH LINING
71
CLUTCH LINING ASBESTOS-FREE
73
RIVET LINING WITH INTERMEDIATE SPRING
73
RIVET , Replaced By: A0002521275
73
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
75
RIVET LEAF SPRING TO CLUTCH DISC
75
RIVET LINING WITH CLUTCH DISC,5 563495
999
LOCK WASHER BELL HOUSING TO TRANSMISSION
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SCREW , Replaced By: N308676018010
999
SCREW , Replaced By: N304017008016
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
PLUG BELL HOUSING
999
BRACKET , Replaced By: A3072950840
999
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
999
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
999
COVER PLATE , Replaced By: A3852510210
999
PLUG BELL HOUSING
999
VALVE CLUTCH SLAVE CYLINDER
999
LEVER CLUTCH ACTUATION,4 601610
999
PIN CLUTCH ACTUATION
999
SLAVE CYLINDER CLUTCH ACTUATION
999
SEAL RING CLUTCH ACTUATION
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
999
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
999
SLAVE CYLINDER CLUTCH ACTUATION
999
SLAVE CYLINDER , Replaced By: A0012955307
999
VALVE , Replaced By: A3075530107
999
RIVET LEAF SPRING TO CLUTCH DISC
999
PRESSURE PLATE
999
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
999
CLAMP , Replaced By: A0002523227
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
