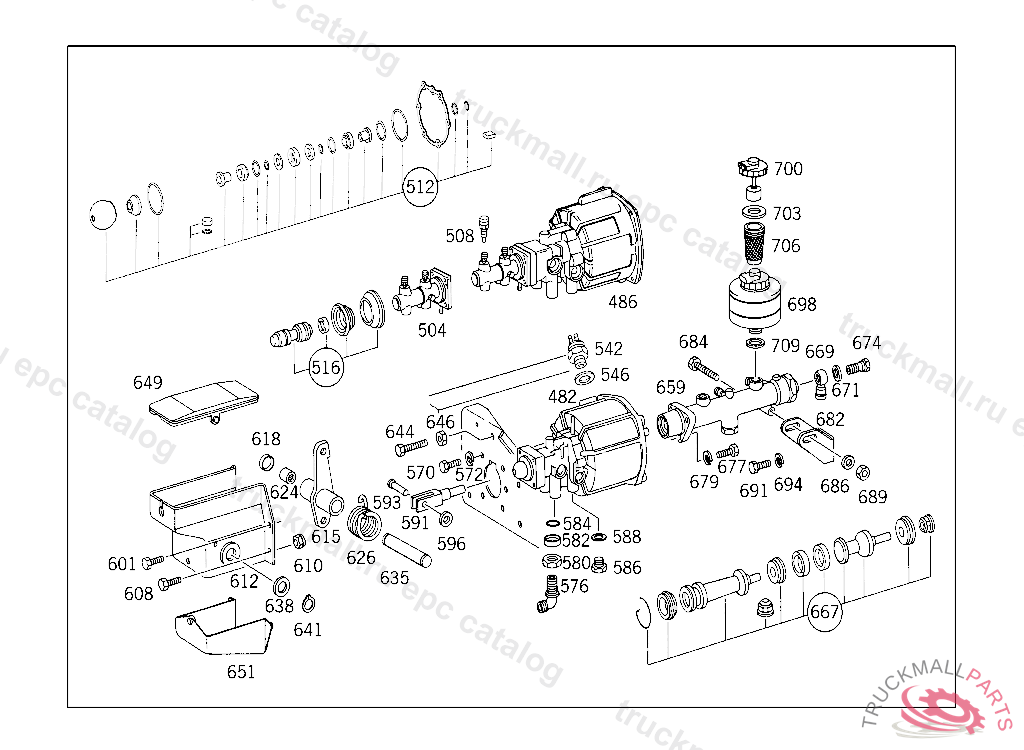

Поз.
Артикул
Описание
482
BRAKE CYLINDER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617 MAKE BOSCH NO. 0 483 004 106, Replaced By: A0014317114
482
BRAKE CYLINDERBOSCH, 385.068,069,FOR USE WITH MERCEDES-BENZ CAB MAKE BOSCH NO. 0 483 004 601 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
482
BRAKE CYLINDER , MAKE WABCO NO. 462 193 000 0, Replaced By: A0014317114
486
BRAKE CYLINDER , MAKE BOSCH NO. 0 483 004 104, Replaced By: A0014317314
486
BRAKE CYLINDER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617 MAKE BOSCH NO. 0 483 004 114, Replaced By: A0014317314
486
BRAKE BOOSTER ASSEMBLY , MAKE WABCO NO. 462 193 002 1, Replaced By: A0014317314
486
BRAKE CYLINDER , MAKE WABCO NO. 462 193 002 0, Replaced By: A0014317314
486
BRAKE CYLINDERBOSCH-SCHAEFER, NOT FOR USE WITH MERCEDES-BENZ CAB
504
WHEEL BRAKE CYLINDER , WITH OFFSET BLEEDER CONNECTION WITH 8-MM,OR 10-MM,MOUNTING SCREWS EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617, Replaced By: A0044206818
508
VALVE CLUTCH SLAVE CYLINDER
508
VALVE , Replaced By: A3075530107
512
REPAIR KIT COMPRESSED AIR CYLINDER TO 000 431 95 14,001 431 32 14
512
REPAIR KIT , Replaced By: A0004302108
516
REPAIR KIT SLAVE CYLINDER TO 007 420 21 18,TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
542
SWITCH PRESSURE SWITCH M 24 X 1 MM
546
SEAL RING , Replaced By: N007603010110
546
SEAL RING PNEUMATIC VALVE
570
SCREW BRACKET TO SIDE MEMBER
570
SCREW , Replaced By: N304017010002
572
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
576
FITTING ,4 667210
576
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
580
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
582
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
584
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
586
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
588
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
588
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
591
ROD , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
593
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
596
WASHER VIBRATION ABSORBER TO BRACKET
596
WASHER , Replaced By: N000433010510
601
SCREW END PIECE TO EXHAUST PIPE M 10X25
608
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
610
NUT STRAP TO BRACKET
610
NUT , Replaced By: N910113010000
612
BRACKET , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444416
615
BRAKE LEVER , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
618
SEAL RING , Replaced By: A0069979147
618
SEAL RING , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
624
NEEDLE BEARING , Replaced By: A0119813410
624
NEEDLE BEARING , Replaced By: A0119813410
624
NEEDLE BEARING
626
SPRING , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
635
SPACER TUBE , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444416
638
WASHER RETAINING ROPE TO BEARING BRACKET, BOTTOM
641
LOCK RING
644
SCREW
644
SCREW , Replaced By: N304017010051
646
NUT BRACKET TO SUPPORT AND TO END PIECE
649
PROTECTIVE PLATE ,4 895864
651
PROTECTIVE PLATE ,4 895864
659
BRAKE MASTER CYLINDERSCHAEFER
667
REPAIR KIT
667
REPAIR KIT , Replaced By: A0004309960
669
CONNECTOR MASTER CYLINDER,CONNECTION "2.1",4 338292
671
SEAL RING FUEL LINE TO FEED PUMP
674
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
677
SCREW BRACKET TO SIDE MEMBER
677
SCREW , Replaced By: N304017010002
679
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
679
LOCK WASHER , Replaced By: N912004010102
682
BRACKET BRAKE MASTER CYLINDER
684
SCREW , Replaced By: N304014008001
684
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
686
WASHER , Replaced By: N000125008443
686
WASHER EXHAUST MUFFLER TO STRAP
689
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
689
NUT , Replaced By: N913004008001
689
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
691
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
694
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
698
RESERVOIR
700
FILLER CAPTO 000 431 87 02
700
FILLER CAP , Replaced By: A0004315533
703
SEAL RING42X21.5 MM
706
STRAINERTO 000 431 87 02
709
SEAL RING LINE CONNECTION
999
CLAMP ,K 147121, Replaced By: N000000000319
999
SLEEVE LINE CONNECTION
999
SLEEVE LEAK LINE
999
FITTING
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
HOLLOW SCREW LINE TO OIL RADIATOR
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW HEATING CONNECTION
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW , Replaced By: N915036012101
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N910113006001
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
NUT BRACKET TO SIDE MEMBER
999
NUT SUPPORT TO SIDE MEMBER
999
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW PIPE CLAMP
999
SCREW SUPPORT TO FENDER
999
SCREW LICENSE PLATE TO BRACKET
999
FITTING BETWEEN THE LINES
999
FITTING , Replaced By: A0009907771
999
FITTING , Replaced By: A0019972372
999
FITTING , Replaced By: A0029971172
999
NUT CHECK VALVE TO AIR RESERVOIR
999
HOLLOW SCREW RELAY VALVE,CONNECTION "2",LEFT
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
HOSE LEAK LINE, ORDER BY THE METER
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
999
SNAP RINGTO 000 431 94 14,000 431 96 14
999
SNAP RING GEAR INDICATOR TO INSTRUMENT PANEL
999
SCREW CLAMP TO BRACKET
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SEAL RING SOLENOID VALVE A 18X24
999
SEAL RING LEFT SPRING-LOAD ACCUMULATOR
999
FITTING AT LEFT SIDE MEMBER,4 347260
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901667
999
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
999
SCREW ACCELERATOR PEDAL TO CAB M 6X20
999
SCREW ACCELERATOR PEDAL TO CAB M 6X25
999
SCREW HAND BRAKE VALVE TO CAB
999
SCREW PEDAL TO CAB FLOOR
999
SCREW , Replaced By: N308676014020
999
SCREW EXHAUST PIPE TO BRACKET 14X1.5X50
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW SPRING CLAMP
999
NUT BALL PIVOT TO LEVER
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017006020
999
SCREW BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT M 10X40,4 338291
999
SCREW CLUTCH TO FLYWHEEL
999
SCREW CROSS MEMBER TO FRAME
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
999
SCREW PLUG , Replaced By: N000908012009
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
LOCK RING22X1.2,TO 001 431 71 14
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PIN , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
SCREW SHIFT CASE TO SLOTTED GATE
999
SCREW CLAMP TO BRACKET
999
FITTING LINE CONNECTION
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
BRACKET COMPRESSED AIR LINES
999
PLATE BRACKET TO CAB FLOOR
999
BRACKET , Replaced By: A6514310240
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,4 367061
999
ADHESIVE FOIL GUIDE SIGN
999
SHIM VALVE TO CAB, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GROMMET BATTERY CABLE THRU SIDE MEMBER
999
WASHER , Replaced By: A3379900440
999
GUIDE SIGN LOAD-DEPENDING BRAKE,4 319045
999
BRACKET HAND BRAKE VALVE
999
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE,4 278268
999
BRACKET , Replaced By: A3854290540
999
BRACKET BATTERY CABLE MOUNTING,5 193595
999
BRACKET RIGHT FRONT BRAKE HOSE TO FRONT AXLE
999
PROTECTIVE PLATE COMPRESSED AIR LINE COVERING IN CAB
999
SUPPORT , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444415, Replaced By: A3854260240, +001A3854310853, +001N000931010379, +001N913004010008
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
GROMMET
999
PIVOT PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444415
999
CLAMP , Replaced By: A6739950001
999
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP , Replaced By: N916016008200
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET , Replaced By: A3853530440
999
BRACKET , Replaced By: A3604292940
999
ANGLE LINE MOUNTING
999
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
