Поз.
Артикул
Описание

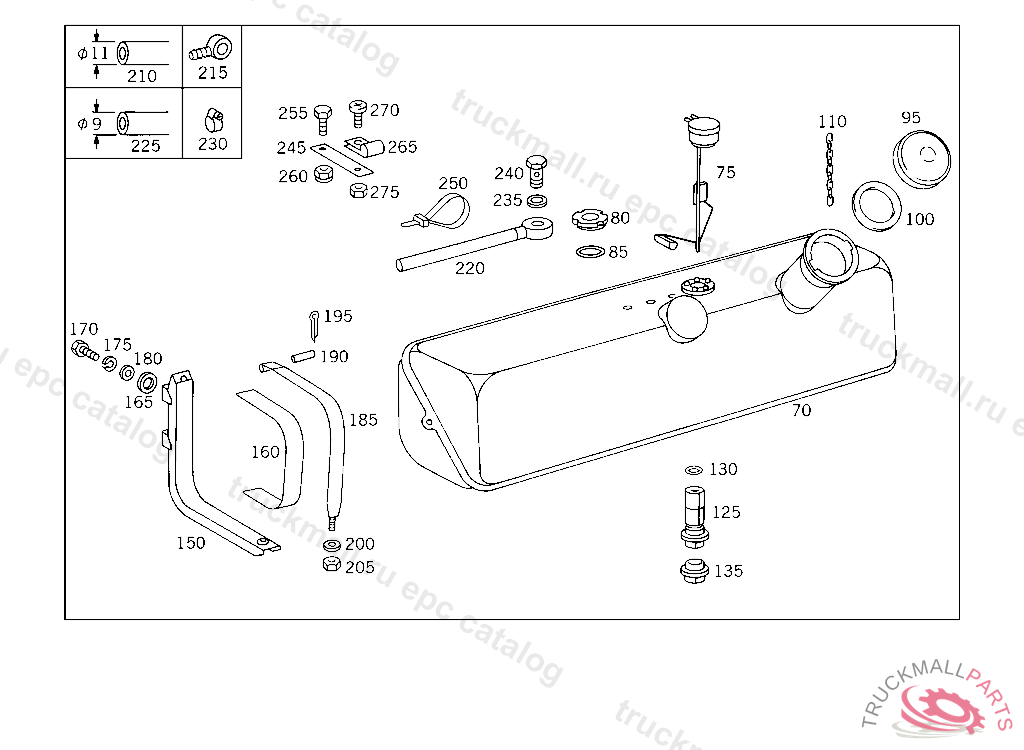

70
FUEL TANK
75
SENDER UNIT ,4 261141, Replaced By: A0045424617, +001A0004710235, +002A3054760126, +001A3879900078
75
SENDER UNIT ,4 261142-4 312464, Replaced By: A0045424617, +001A3054760126, +001A3879900078
75
SENDER UNIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 656938, Replaced By: A0055423417
75
SENDER UNIT , Replaced By: A0085427717
75
SENDER UNIT ,4 312465
80
FILLER CAP IN PLACE OF FUEL GAUGE SENDER UNIT
85
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
95
FILLER CAP , Replaced By: A0004717930
95
FILLER CAP , Replaced By: A0004700305
95
FILLER CAP , Replaced By: A0004700305
95
FILLER CAP , Replaced By: A0004700305
95
FILLER CAP
100
SEAL RING
110
CHAIN FILLER CAP
125
FUEL STRAINER
130
SEAL RING FUEL STRAINER SCREEN
135
FITTING FUEL LINE TO FUEL TANK,4 493047
150
SUPPORT ,4 690101, Replaced By: A3834701442, +001A6174700440, +002A3859900551
150
SUPPORT ,4 690102-4 829901 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3834701842, +002N000961014097, +002N912004014100
150
SUPPORT ,4 829902
160
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
160
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
165
SHIM , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 624614, Replaced By: A3834750384
165
SHIM SUPPORT TO SIDE MEMBER
170
SCREW , Replaced By: N308676012026
170
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
170
SCREW , Replaced By: N308676014020
170
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
175
LOCK WASHER FITTING TO BRACKET
175
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
180
WASHER LEFT AND RIGHT CONSOLES TO CAB
185
STRAP FUEL TANK TO SUPPORT
185
STRAP ,4 6901025 149419, Replaced By: A6174700440, +001N000934012022
185
STRAP FUEL TANK TO SUPPORT,5 149420
190
PIN STRAP TO SUPPORT
195
COTTER PIN STRAP TO SUPPORT
200
WASHER STRAP TO SUPPORT
205
NUT STRAP TO SUPPORT
205
NUT STRAP TO SUPPORT,5 149419
210
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
215
BANJO UNION , Replaced By: N000000000363
220
LINE FUEL COMPENSATING
225
HOSE FUEL LINE, ORDER BY THE METER
230
CLAMP , Replaced By: N000000000665
230
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
235
SEAL RING FUEL LINE TO FEED PUMP
240
HOLLOW SCREW , Replaced By: N915036010108
240
HOLLOW SCREW FUEL LINE TO FEED PUMP
245
BRACKET , Replaced By: A3184924841
245
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
250
LOOM TIE LINE MOUNTING
255
SCREW , Replaced By: N304017008034
260
NUT , Replaced By: N913004008001
260
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
265
CLAMP LINE MOUNTING
270
SCREW PROTECTION PLATE TO BRACKET
275
NUT BALL PIVOT TO LEVER
999
STRAP , Replaced By: A3834700340
999
FUEL TANK , Replaced By: A6734701001
999
FUEL TANK , Replaced By: A3834701101, +001N007603014302, +001N007604014106
