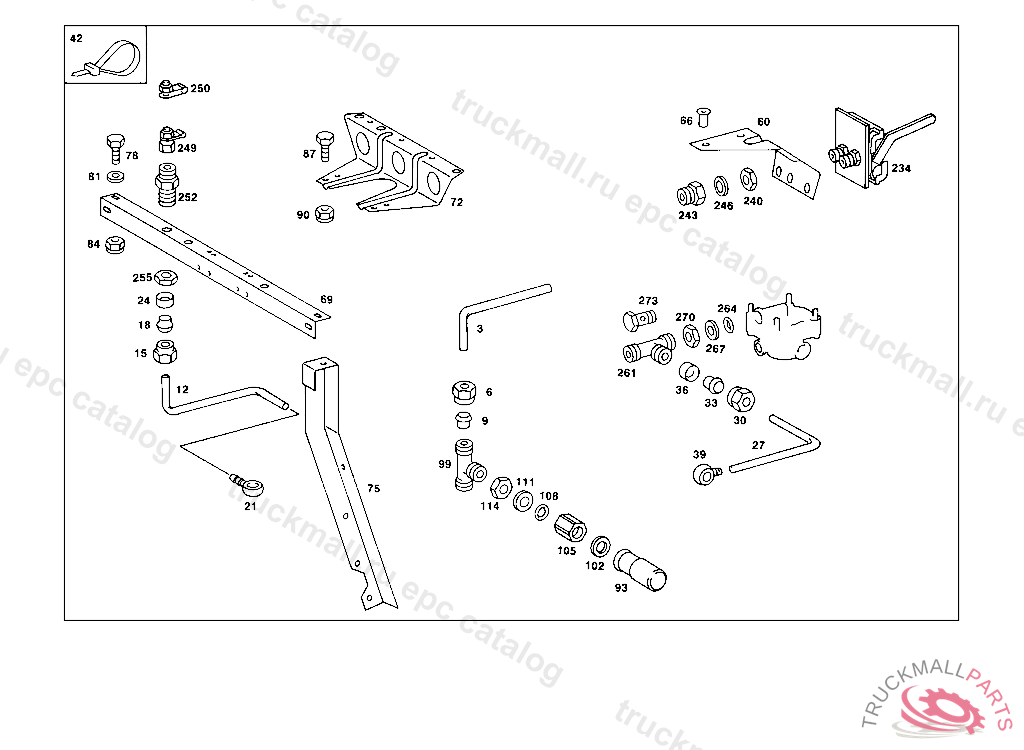

Поз.
Артикул
Описание
3
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
6
UNION NUT LINE CONNECTION
6
UNION NUT LINE CONNECTION, Replaced By: N000000006239
9
SEAL CONE LINE CONNECTION
9
GLAND , Replaced By: A0019901967
12
HOSE , Replaced By: A0009872827
12
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
12
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
12
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
15
UNION NUT LINE CONNECTION, Replaced By: N000000006239
15
UNION NUT LINE CONNECTION
18
GLAND , Replaced By: A0019901967
18
SEAL CONE LINE CONNECTION
21
BANJO UNION , Replaced By: N915052009009
21
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
21
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
24
BUSHING , Replaced By: N915062009000
24
SLEEVE LINE CONNECTION
24
SLEEVE LINE CONNECTION
27
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
27
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
27
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
27
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
27
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
UNION NUT LINE CONNECTION
33
GLAND LINE CONNECTION
36
SLEEVE LINE CONNECTION
39
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
39
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
39
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
42
LOOM TIE LINE MOUNTING
42
LOOM TIE LINE MOUNTING 280 MM
60
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
60
BRACKET ,4 346267 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 895682 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6204296140
60
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
60
BRACKET , Replaced By: A3464290940
60
BRACKET ,4 346267 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 895682 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6204296140
60
BRACKET AT FRAME
60
BRACKET , Replaced By: A3874292140
66
RIVET BRACKET TO FRAME
66
RIVET BRACKET TO FRAME
66
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
69
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
69
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
72
SUPPORT , Replaced By: A3874320916
72
SUPPORT BRAKE LINE COUPLINGS
72
SUPPORT , Replaced By: A6214320116
72
SUPPORT , Replaced By: A3874321616
75
ANGLE RIGHT
75
ANGLE , Replaced By: A6214320117
75
ANGLE LEFT
75
ANGLE , Replaced By: A6214320017
78
SCREW PIPE CLAMP
78
SCREW , Replaced By: N304017008021
81
WASHER EXHAUST MUFFLER TO STRAP
81
WASHER EXHAUST MUFFLER TO STRAP
81
WASHER EXHAUST MUFFLER TO STRAP
81
WASHER , Replaced By: N000125008443
84
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
84
NUT , Replaced By: N913004008001
87
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
90
NUT STRAP TO BRACKET
90
NUT , Replaced By: N910113010000
93
VALVE PRESSURE LIMIT,K 025180
93
VALVE ,K 025179, Replaced By: A0044297044
93
VALVE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 903131, Replaced By: A0034295044
99
T-FITTING (SAFETY VALVE)
102
SEAL RING VALVE TO VALVE,K 025179
105
ADAPTER FITTING RESERVOIR TO SUPPORT
108
O-RING CHECK VALVE TO AIR RESERVOIR
111
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
111
THRUST RING CHECK VALVE TO AIR RESERVOIR
114
NUT CHECK VALVE TO AIR RESERVOIR
234
BRAKE LINE COUPLING DOUBLE BRAKE LINE COUPLING
240
NUT CHECK VALVE TO AIR RESERVOIR
243
ADAPTER FITTING , Replaced By: A0029971072
243
FITTING BRAKE LINE COUPLING,CONNECTION: "11,12"
246
SEAL RING , Replaced By: N007603012121
246
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
249
TEST CONNECTION , Replaced By: A0004312931
249
TEST CONNECTION
250
PLUG
252
FITTING BRAKE LINE COUPLING TO BRACKET
255
NUT BRACKET TO SIDE MEMBER
255
NUT BRACKET TO SIDE MEMBER
261
T-FITTING
261
FITTING RELAY VALVE,CONNECTION: "42"
261
T-FITTING
261
FITTING RELAY VALVE,CONNECTION: "42"
264
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
264
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
264
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
267
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
267
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
270
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
270
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
273
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
COVERING
999
REPAIR KITTO 002 429 79 44
999
PLUG FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING , Replaced By: A0019972572
999
REPAIR KIT DOUBLE BRAKE LINE COUPLING
999
PLUG TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
