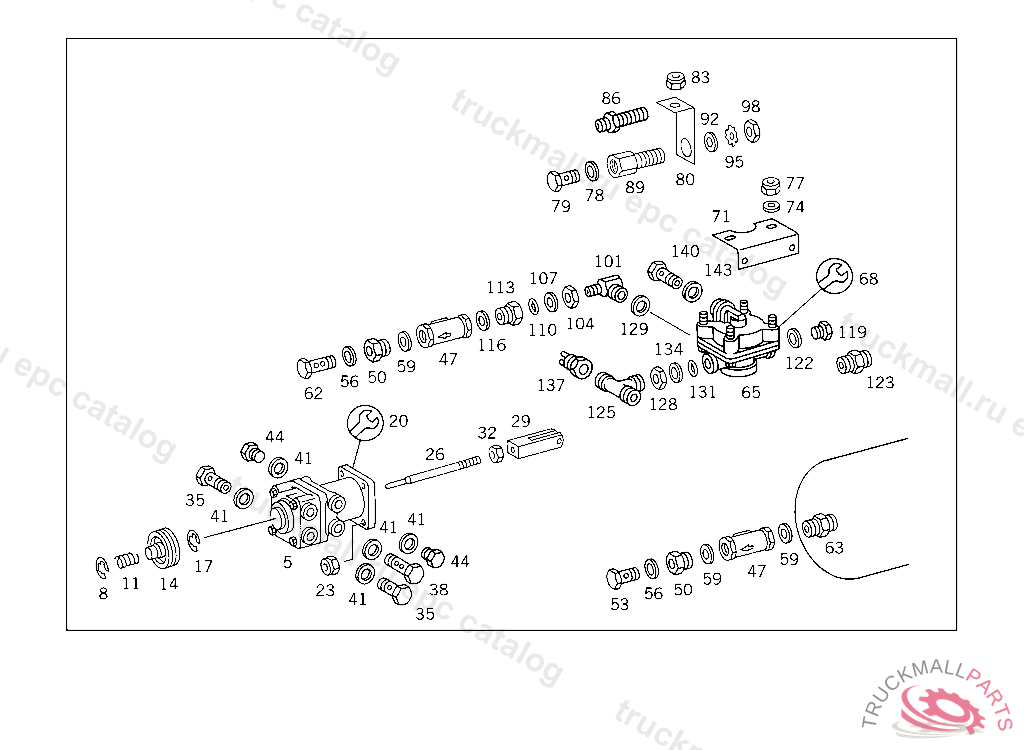

Поз.
Артикул
Описание
5
BRAKE VALVE SERVICE BRAKE KNORR
5
BRAKE VALVE SERVICE BRAKE WABCO
8
LOCKTO 345 431 70 05
11
SPRINGTO 345 431 71 05
11
SPRINGTO 345 431 70 05
11
SPRINGTO 345 431 70 05
14
PISTONTO 345 431 70 05
14
PISTONTO 345 431 71 05
17
LOCK RING
17
LOCK RING PLANETARY CARRIER
17
LOCK RINGTO 345 431 71 05
17
LOCK RINGTO 345 431 71 05
20
REPAIR KIT SMALL SCOPE TO 345 431 71 05
20
REPAIR KIT SMALL SCOPE TO 345 431 70 05
20
REPAIR KIT LARGE SCOPE TO 345 431 70 05
20
REPAIR KIT , Replaced By: A0014300460
23
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
23
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
ROD FROM FITTING TO CLUTCH BOOSTER
26
ROD , Replaced By: A3842927032, +001A3849967001, +001N000934012009
29
YOKE
32
NUT FUEL TANK TO SUPPORT
35
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
38
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
41
SEAL RINGTO 006 997 00 72
44
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
47
VALVE (CHECK VALVE)
47
VALVE (CHECK VALVE)
47
VALVE (CHECK VALVE)
50
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
53
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
56
SEAL RINGTO 006 997 00 72
59
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
62
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
63
FITTING CHECK VALVE,SB073155
65
VALVE (RELAY VALVE) WABCO
65
VALVE (RELAY VALVE),REAR AXLE
65
VALVE (RELAY VALVE) KNORR
68
REPAIR KITTO 003 429 30 44,KNORR
68
REPAIR KIT SMALL SCOPE TO 001 429 68 44
68
REPAIR KITWABCO
68
REPAIR KITKNORR
71
BRACKET (RELAY VALVE)
74
WASHER TRAILER PLUG SOCKET TO BRACKET
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
77
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
78
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
79
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
80
BRACKET
83
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
83
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
89
ADAPTER FITTING , Replaced By: A0004296934
92
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
95
TOOTHED WASHER SENDER UNIT TO BRACKET
98
NUT BRACKET TO SIDE MEMBER
101
T-FITTING FROM CHECK VALVE TO RELAY VALVE
101
T-FITTING FROM CHECK VALVE TO RELAY VALVE
104
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
104
NUT CHECK VALVE TO AIR RESERVOIR
107
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
107
THRUST RING CHECK VALVE TO AIR RESERVOIR
107
THRUST RING LOCKING VALVE
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
O-RING CHECK VALVE TO AIR RESERVOIR
113
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
116
SEAL RING LINE CONNECTION
119
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
122
SEAL RINGTO 006 997 00 72
123
SCREW-IN FITTING OIL LINE CONNECTION
125
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
128
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
129
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
131
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
134
THRUST RING LOCKING VALVE
137
SWITCH SUPPLY PRESSURE,5 966147
137
SWITCH FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
137
SWITCH RELAY VALVE,CONNECTION "2"
137
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
140
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
143
SEAL RINGTO 006 997 00 72
