Поз.
Артикул
Описание

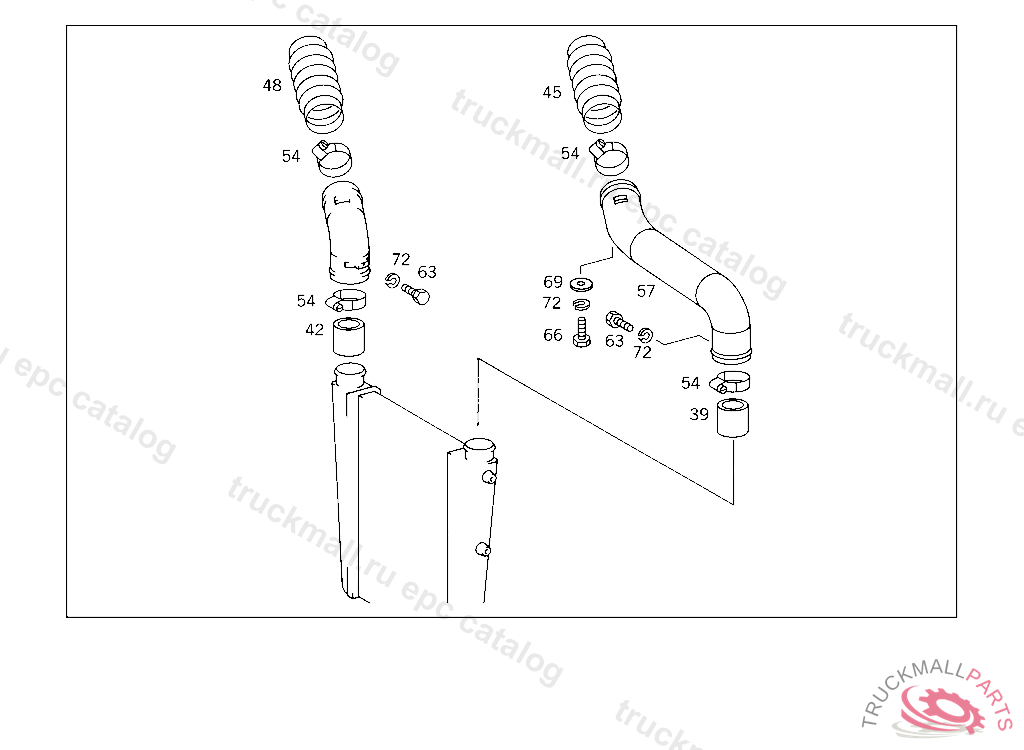

39
HOSE PIPE ELBOW TO CHARGING AIR INTERCOOLER
42
HOSE PIPE ELBOW TO CHARGING AIR INTERCOOLER
45
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER
48
HOSE CHARGE AIR COOLER TO ENGINE CIRCUIT'S COLD SIDE,D 173028
48
HOSE CHARGE AIR COOLER TO ENGINE CIRCUIT'S HOT SIDE,D 173028
48
HOSE , Replaced By: A6845011082
48
HOSE CHARGE AIR COOLER TO ENGINE CIRCUIT'S COLD SIDE,D 173028
54
LOOM TIE FROM CHARGING AIR INTERCOOLER TO ENGINE
54
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
57
PIPE ELBOW FROM TURBOCHARGER TO CHARGE AIR INTERCOOLER
63
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
66
SCREW , Replaced By: A0079900801
66
SCREW REDUCTION VALVE TO BRACKET
69
WASHER BRACKET TO CAB REAR PANEL
72
LOCK WASHER TAIL LAMP TO BRACKET
999
HOSE FROM ENGINE TO EXPANSION TANK 15X24X740 MM
999
HOSE FROM EXPANSION TANK TO PIPE ELBOW 15X24X600
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE FROM RADIATOR TO THERMOSTAT
999
RADIATOR
999
SPACER TUBE
999
FAN
999
WASHER1.5 MM
999
HUB FAN DRIVE
999
LOCK
999
V-BELT ALTERNATOR 12.5X975
