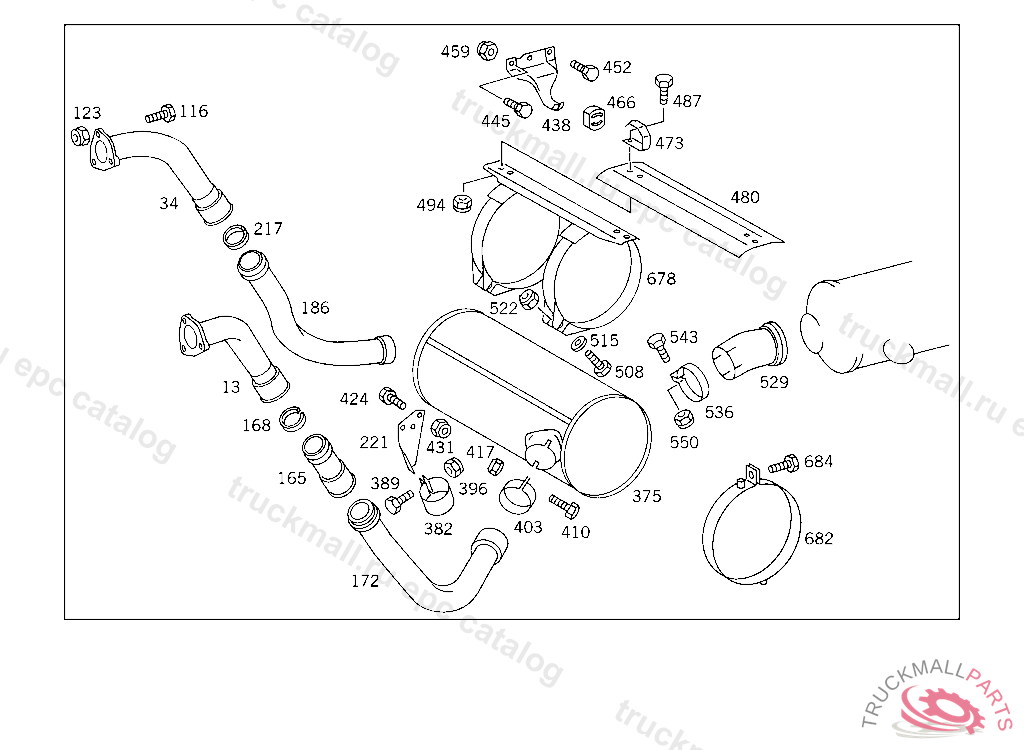

Поз.
Артикул
Описание
13
CONNECTOR LEFT FRONT,4 836062
34
CONNECTOR RIGHT FRONT,4 836062
116
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
123
NUT CONNECTOR TO EXHAUST MANIFOLD
165
CONNECTOR FRONT EXHAUST PIPE FRONT PART TO REAR PART,4 836062
165
CONNECTOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6204901625
168
SEAL RING ,5 004844
172
EXHAUST PIPE FRONT,REAR LEFT PART,4 836062
186
EXHAUST PIPE FRONT,REAR RIGHT PART,4 836062
217
SEAL RING ,5 004844
221
BRACKET RIGHT EXHAUST PIPE,4 836062
221
BRACKET LEFT EXHAUST PIPE,4 836062
375
EXHAUST MUFFLER
375
EXHAUST MUFFLER FRONT
382
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
389
SCREW BRACKET TO SIDE MEMBER
389
SCREW , Replaced By: N304017010002
396
NUT , Replaced By: N910113010000
396
NUT STRAP TO BRACKET
403
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
403
CLAMP , Replaced By: N071555094502
410
SCREW , Replaced By: N304017010002
410
SCREW BRACKET TO SIDE MEMBER
417
NUT , Replaced By: N910113010000
417
NUT STRAP TO BRACKET
424
SCREW REAR EXHAUST PIPE TO MUFFLER
424
SCREW , Replaced By: N304017010002
424
SCREW BRACKET TO SIDE MEMBER
431
NUT , Replaced By: N910113010000
431
NUT STRAP TO BRACKET
438
SUPPORT FRONT EXHAUST MUFFLER,5 129244
445
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
452
SCREW SUPPORT TO FRAME M 14X32,5 129244
459
NUT BRACKET TO SIDE MEMBER
459
NUT , Replaced By: N910113014001
466
DAMPING PAD PARTICLE FILTER
473
BRACKET PARTICLE FILTER
480
PROTECTIVE PLATE EXHAUST MUFFLER SUSPENSION,5 129244
487
SCREW PIPE CLAMP
487
SCREW , Replaced By: N304017008021
494
NUT , Replaced By: N913004008001
494
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
508
SCREW SHOCK ABSORBER TO CONSOLE
508
SCREW , Replaced By: N304017008042
515
WASHER , Replaced By: N000125008443
515
WASHER EXHAUST MUFFLER TO STRAP
522
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
522
NUT , Replaced By: N913004008001
529
EXHAUST PIPE FRONT AND REAR EXHAUST MUFFLERS,5 129244
536
CLAMP EXHAUST PIPE
543
SCREW END PIECE TO EXHAUST PIPE M 10X25
550
NUT , Replaced By: N910113010000
550
NUT STRAP TO BRACKET
678
SUPPORT REAR CROSS MEMBER
682
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
684
SCREW , Replaced By: N304017008008
684
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
999
STRAP PARTICLE FILTER
999
BRACKET RIGHT EXHAUST PIPE,5 129244
999
BRACKET LEFT EXHAUST PIPE,5 129244
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
STRAP , Replaced By: A6554900942
999
EXHAUST MUFFLER LEFT AND RIGHT
999
BRACKET OIL LINE MOUNTING,5 129244
999
CONNECTOR LEFT FRONT,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
CONNECTOR LEFT,5 129244
999
CONNECTOR RIGHT,5 129244
999
CONNECTOR LEFT FRONT,5 129244
999
CONNECTOR LEFT
999
EXHAUST MUFFLER REAR
999
EXHAUST MUFFLER REAR
999
STRAP EXHAUST MUFFLER TO BRACKET
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
SUPPORT FRONT EXHAUST MUFFLER,5 193594
999
CLAMP FRONT EXHAUST PIPE TO BRACKET,5 129244
999
CONNECTOR RIGHT FRONT
999
CONNECTOR LEFT FRONT
