Поз.
Артикул
Описание

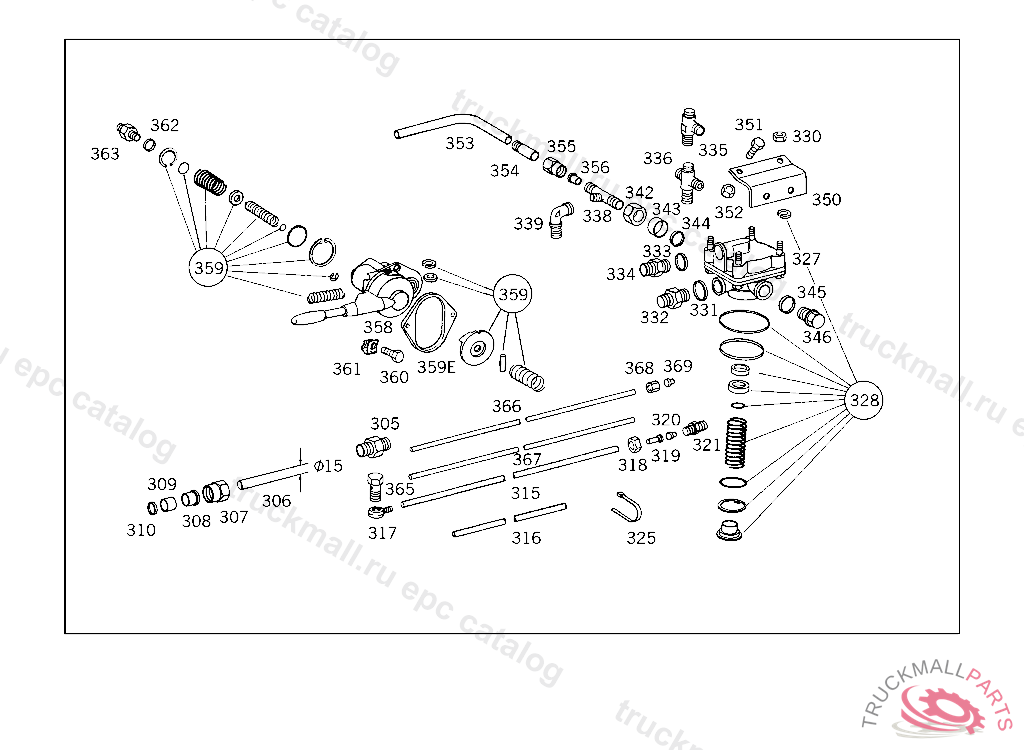

305
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
306
LINE , Replaced By: A0005516256
306
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
307
UNION NUT BUTT SCREW CONNECTION
308
GLAND LINE CONNECTION
309
THRUST RING BUTT SCREW CONNECTION
310
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
310
SEAL RING , Replaced By: N007603012121
315
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
316
INSULATING HOSE COLOR CODE BLUE,YB227219
317
BANJO UNION HEATING CONNECTION,K 169122
317
BANJO UNION , Replaced By: N915052006005
318
UNION NUT LINE CONNECTION
319
GLAND LINE CONNECTION
320
SLEEVE LINE CONNECTION
320
SLEEVE , Replaced By: N915062006000
321
FITTING , Replaced By: A0029905971
321
FITTING , Replaced By: A0039978972
321
FITTING (PARTS KIT),LINE RUPTURE
325
LOOM TIE LINE MOUNTING 280 MM
327
VALVE (RELAY VALVE) WABCO
328
REPAIR KITWABCO
330
NUT , Replaced By: N913004008001
330
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
331
O-RING CHECK VALVE TO AIR RESERVOIR
332
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
333
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
334
FITTING , Replaced By: A0029979572
334
FITTING RELAY VALVE,CONNECTION: "40",5 359430
335
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
336
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
339
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
339
T-FITTING RELAY VALVE,CONNECTION: "20"
342
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
343
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
344
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
345
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
346
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
353
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
354
FITTING DIAPHRAGM CYLINDER,CONNECTION:
355
UNION NUT LINE CONNECTION, Replaced By: N000000006239
356
SEAL CONE LINE CONNECTION
358
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
358
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
358
VALVE HAND BRAKE VALVE KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
359
REPAIR KIT , Replaced By: A0004305760
359
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
361
NUT RETAINER , Replaced By: A3229900091
361
NUT RETAINER BRACKET MOUNTING
362
SEAL RING FUEL LINE TO FEED PUMP
363
FITTING , Replaced By: A0019902771
363
ELBOW FITTING DELIVERY LINE TO PUMP
365
HOLLOW SCREW , Replaced By: N915036010108
365
HOLLOW SCREW FUEL LINE TO FEED PUMP
366
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
366
PLASTIC PIPE RISING PIPE 4X6 MM
367
INSULATING HOSE RED, ORDER BY THE METER
368
UNION NUT
369
GLAND , Replaced By: A0019901667
369
SEAL CONE
999
VALVE , Replaced By: A0024319306
999
PRESSURE REGULATOR , Replaced By: A0024314306
999
VALVE FOUR-CIRCUIT PROTECTIVE VALVE GRAU, MODELS 002,003,006,007,009,034,UP TO CHASSIS 4 424733,MODELS 134 UP TO CHASSIS 4 611513
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT SLAVE CYLINDER TO 006 420 15 18, UP TO SCHAEFER CHARACTERISTIC NO.489
999
REPAIR KIT VALVE DISC TO 001 431 43 05,002 431 05 05,BOSCH, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT BOOT TO 001 431 38 06,BOSCH, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT DIAPHRAGM CYLINDER TO 006 420 49 18
999
REPAIR KITTO 001 431 47 06,WABCO 2100, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITKNORR
999
REPAIR KIT , Replaced By: A0025865242
999
REPAIR KIT BOOT TO 001 431 15 06,BOSCH
999
REPAIR KIT SEAL RING TO 001 431 15 06,BOSCH
999
REPAIR KIT , Replaced By: A0024301560
999
REPAIR KIT , Replaced By: A0004201071
999
REPAIR KIT , Replaced By: A0004301109
999
REPAIR KITTO 001 431 30 06
999
REPAIR KITGRAU,5 148812
999
REPAIR KIT , Replaced By: A0034303881
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KITTO 001 431 14 12
999
FITTING (PARTS KIT),LINE RUPTURE
999
T-FITTING HOSE WIDTH, 9 MM,TO M 22
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 411810 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004202755
999
FITTING LINE CONNECTION TO AIR RESERVOIR,4 314180
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
999
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
999
FITTING DELIVERY LINE TO PUMP
999
FITTING DISTRIBUTOR,4 709826
999
FITTING TWO-CIRCUIT BRAKE VALVE,CONNECTION: "21", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING 3/2-WAY VALVE
999
VALVE (RELAY VALVE) BOSCH
999
VALVE (RELAY VALVE) KNORR
999
REPAIR KIT
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KITTO 000 430 66 81,000 430 67 81, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GASKET KIT SEAL RING TO 001 431 58 06,BOSCH
999
RESERVOIR20L,246 MM,12.5 BAR
999
SEAL RING LINE CONNECTION
999
SEAL RING BRAKE HOSE
999
GROMMET LINE THRU FRAME,4 189545
999
WHEEL BRAKE CYLINDER ,4 326656, Replaced By: A0064200418, +002N913004016004
999
SEAL RINGBOSCH
999
FITTING , Replaced By: A0029906171
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
HOSE CLAMP LINE MOUNTING
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING 25.3X2.4 MM,TO 001 431 68 06, 002 431 02 06
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
WHEEL BRAKE CYLINDER ,4 326657 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 404254, Replaced By: A0064701118
999
SEAL RINGTO 001 431 68 06,19.3X2.4 MM,GRAU37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGTO 001 431 43 05
999
SEAL RING , Replaced By: A0049970248
999
HOSE , Replaced By: A0009872827
999
HOSE LEVER TO SUPPORT
999
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
999
VALVE CLUTCH SLAVE CYLINDER
999
CLAMP 3/2-WAY SOLENOID VALVE
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
ELBOW FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
999
CLAMP LINE MOUNTING
999
LINE , Replaced By: A6194290801
999
LEVER , Replaced By: A6204310439
999
BRACKET ,4 270413
999
LINE FROM FITTING TO RIGHT FRONT BRAKE CYLINDER,929799
999
LINE FROM FITTING TO LEFT FRONT BRAKE CYLINDER,929799
999
LINE , Replaced By: A3874299502, +001N003861012006, +001N003870012104
999
LINE , Replaced By: A3874299502, +001N003861012006, +001N003870012104
999
LINE FROM FRONT BRAKE HOSE TO RIGHT BRAKE CYLINDER,929798
999
LINE FROM FRONT BRAKE HOSE TO LEFT BRAKE CYLINDER,929798
999
LINE , Replaced By: A0004291401
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
999
BRACKET , UP TO CHASSIS 4 241133
999
LINE , Replaced By: A3874299502
999
BRACKET ,4 360020
999
BRACKET PLASTIC LINES TO FRAME
999
LINE , Replaced By: A3834290801
999
STRAP , 974676 MODELS 002,006 UP TO CHASSIS 4 424733,MODELS 033,034,134 UP TO CHASSIS 4 611513
999
STRAP AIR RESERVOIR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SHIM VALVE TO CAB, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
ADHESIVE FOIL GUIDE SIGN
999
PLUG TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,4 367061
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
BRACKET METAL SPRING BELLOWS,4 270413
999
BRACKET METAL SPRING BELLOWS
999
BRACKET BRAKE POWER REGULATOR,395.312,325,326,412,425 4 424733395.315,316,322,342,344,352,354,372,415,422,442,443,444,452,453,454,472 4 611513
999
BEARING BRACKET TRISTOP CYLINDER, 312,322,412,422 4 426005 315,325,415,425 4 423552 316,326 4 426856 342,352 4 404477 372 4 405996 442,452 4 405201 472 4 406809 344,354,444,454 4 408959 EXCEPT FOR 4 399276,4 404254,4 404885,4 405657,4 405954,4 405964. ALSO INSTALLED ON 4 410954,4 411003,4 411069,4 411174,4 411659,4 412434,4 412569,4 412918,4 413350,4 414258,4 414573,4 415804,4 415914,4 415988, 4 416173,4 416367,4 416554,4 416564,4 417864,4 417912,4 418330,4 418363,4 418368, NOT AVAILABLE ON VEHICLES FOR ALGERIA
999
BRACKET BRAKE HOSE
999
BRACKET BRAKE HOSE
999
LEVER , Replaced By: A3854310439
999
ROD , Replaced By: N900331008261
999
BRACKET , Replaced By: A6514310240
999
BRACKET BRAKE POWER REGULATOR
999
GUIDE SIGN
999
GUIDE SIGN LOAD-DEPENDING BRAKE,4 490410 - 4 6008404 614071
999
GUIDE SIGN LOAD-DEPENDING BRAKE,4 600841-4 614070
999
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
999
BRACKET LINE MOUNTING,4 270413
999
LINE FRON FITTING TO REAR BRAKE HOSE
999
BEARING BRACKET TRISTOP CYLINDER, 312,322,412,422 4 426006 315,325,415,425 4 423553 316,326 4 426857 342,352 4 404478 372 4 405997 442,452 4 405202 472 4 406810 344,354,444,454 4 408960 472 4 406810 ALSO INSTALLED ON 4 399276,4 404254,4 404885,4 405657,4 405954,4 405964. EXCEPT FOR 4 410954,4 411003,4 411069,4 411174,4 411659,4 412434,4 412569,4 412918,4 413350,4 414258,4 414573,4 415804,4 415914,4 415988, 4 416173,4 416367,4 416554,4 416564,4 417864,4 417912,4 418330,4 418363,4 418368, AS WELL AS ON VEHICLES FOR ALGERIA4 497301
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF STEEL AXLE
999
BRACKET LINE MOUNTING,4 4389724 691315
999
BRACKET , Replaced By: A6205243040
999
BRACKET
999
BRACKET METAL SPRING BELLOWS
999
BRACKET ROD TO BRACKET,4 270414
999
LINE , Replaced By: A6254293501
999
BRACKET , NOT USED
999
BRACKET BRACKET TO CROSS MEMBER
999
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW CLAMP MOUNTING M 6X16
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
