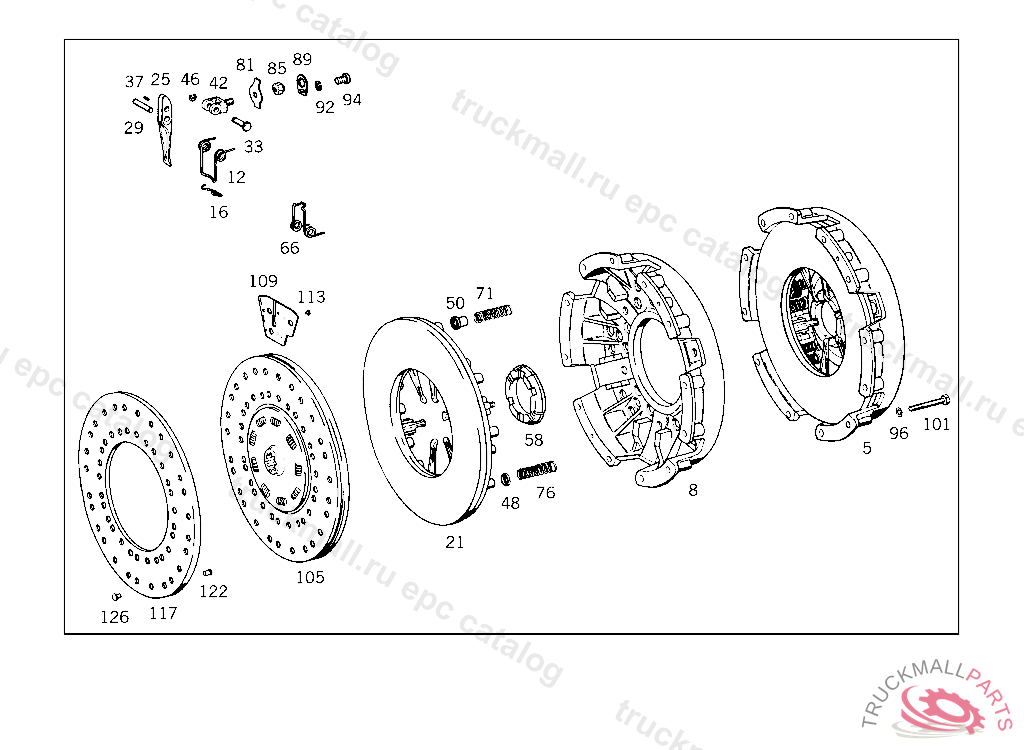

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
CLUTCH PRESSURE PLATE , Replaced By: A0032502504
8
HOUSING
12
SPRING SUSPENDED BELOW LEAF SPRING
12
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
16
CLAMP RELEASE FLANGE TO RELEASE LEVER
16
CLAMP , Replaced By: A0002523227
21
PRESSURE PLATE
25
RELEASE LEVER CLUTCH ACTUATION
29
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
33
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
33
SPINDLE , Replaced By: A0002522816, +001A1249945241
37
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
42
BRACKET RELEASE LEVER
46
LOCK PLATE RELEASE LEVER TO SHAFT
46
LOCK PLATE LEVER TO BRACKET
50
SLEEVE CLUTCH PRESSURE PLATE
58
FLANGE
58
FLANGE , Replaced By: A0002522145
66
SPRING SUSPENDED BELOW LEAF SPRING
66
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
66
SPRING , Replaced By: A0002523227
71
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
76
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
81
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
81
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
85
NUT FOR BRACKETS
85
NUT , Replaced By: A0002523072
89
LOCK FOR BRACKETS
92
LOCK WASHER BRACKET TO STEERING COLUMN END
94
SCREW RELEASE LEVER,BRACKET
94
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
96
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
101
SCREW , Replaced By: N304017010055
101
SCREW , Replaced By: N304017010050
105
CLUTCH DISC
105
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0072500803
105
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504503
105
CLUTCH DISC
105
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504603
105
CLUTCH DISC , Replaced By: A0052506403
105
CLUTCH DISC , Replaced By: A0022509803
105
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
105
CLUTCH DISC ASBESTOS-FREE LINING
109
LEAF SPRING
109
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
113
RIVET LEAF SPRING TO CLUTCH DISC
113
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
113
RIVET , Replaced By: A0002522075
117
CLUTCH LINING
117
CLUTCH LINING , Replaced By: A0012522910
117
CLUTCH LINING , Replaced By: A0012522910
122
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
122
RIVET LINING WITH INTERMEDIATE SPRING
126
RIVET LINING WITH CLUTCH DISC,5 563495
126
RIVET LEAF SPRING TO CLUTCH DISC
999
PLUG BELL HOUSING
999
PRESSURE PLATE
999
VALVE , Replaced By: A3075530107
999
CLUTCH LINING ASBESTOS-FREE
999
LEVER CLUTCH ACTUATION,4 601610
999
VALVE CLUTCH SLAVE CYLINDER
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
