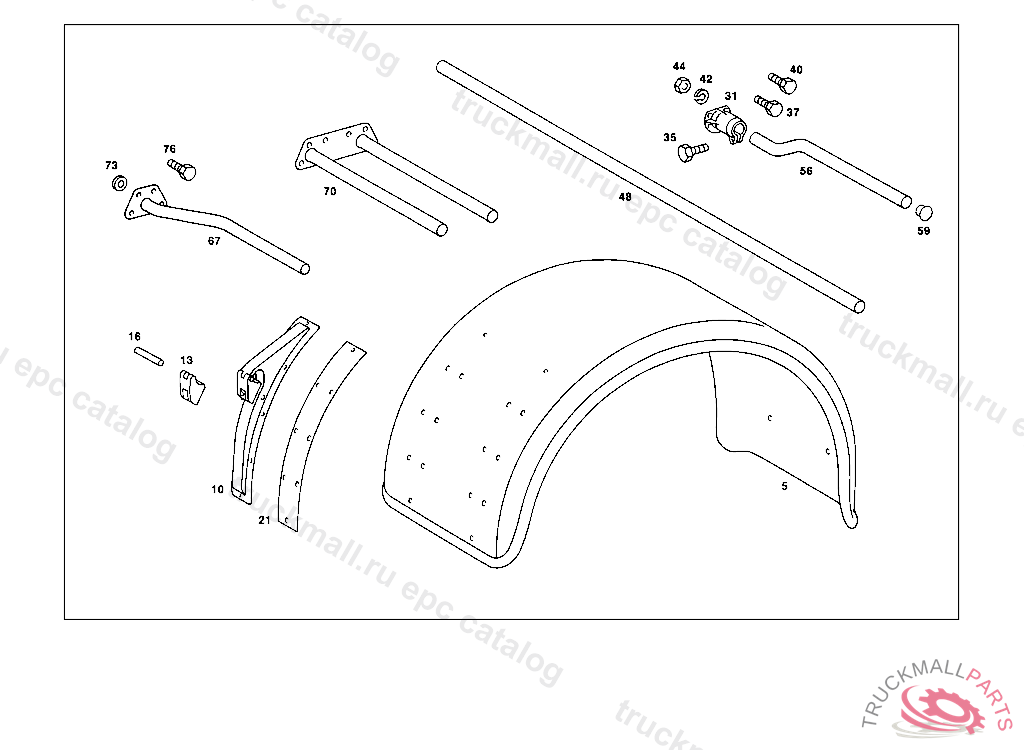

Поз.
Артикул
Описание
5
FENDER REAR WHEEL 660X660,5 952572
10
BRACKET FENDER
10
BRACKET FENDER
10
BRACKET FENDER
10
BRACKET FENDER
10
BRACKET FENDER
10
BRACKET FENDER
13
CLAMPING PIECE
16
RIVET9X48 MM
21
REINFORCEMENT FENDER
21
REINFORCEMENT FENDER
21
REINFORCEMENT FENDER
21
REINFORCEMENT FENDER
21
REINFORCEMENT FENDER
31
BEARING BRACKET AT FRAME 90X64 MM
31
BEARING BRACKET AT FRAME 90X64 MM
35
SCREW EXHAUST PIPE TO BRACKET
37
SCREW END PIECE TO EXHAUST PIPE M 10X25
37
SCREW END PIECE TO EXHAUST PIPE M 10X25
37
SCREW END PIECE TO EXHAUST PIPE M 10X25
40
SCREW BRACKET TO SIDE MEMBER
40
SCREW , Replaced By: N304017010002
42
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
42
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
42
LOCK WASHER , Replaced By: N912004010102
44
NUT STRAP TO BRACKET
44
NUT , Replaced By: N910113010000
48
BRACKET TAIL LAMP
48
BRACKET , Replaced By: A6525220040
48
SUPPORT , Replaced By: A6175221040
56
BRACKET TAIL LAMP
56
BRACKET , Replaced By: A6525222240
59
EXPANSION PLUG BRACKET
67
BRACKET LEFT FRONT AND RIGHT REAR
67
BRACKET LEFT FENDER, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
70
BRACKET , NOT USED
73
SPACER WASHER BRACKET TO FRAME, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
76
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
999
FENDER STEERED AXLE,5 952572
999
ANGLE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3915220440
999
ANGLE. SUPPORT , Replaced By: A3935220140
999
BRACKET RIGHT FENDER, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
999
BRACKET RIGHT FRONT,LEFT REAR
999
BEARING BRACKET , Replaced By: A3875220292
999
BEARING BRACKET , 393.311 UP TO CHASSIS 4 450302,393.321 UP TO CHASSIS 4 453 074,395.312,322,412,422 UP TO CHASSIS 4 426005
999
BRACKET , Replaced By: A3355200341
999
BRACKET , Replaced By: A6525222240
999
MOUNTING PLATE BEARING BRACKET,4 344455
999
BEARING BRACKET , Replaced By: A3465225092
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A3935220140
999
BRACKET , Replaced By: A3935220140
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6205205241
999
REINFORCEMENT FENDER
999
BRACKET LEFT AND RIGHT,5 453765
999
BRACKET , Replaced By: A6525222840
999
BRACKET TAIL LAMP, UP TO IDENT NO. K 279038, FROM IDENT NO. SEE STANDARD VERSION
999
BRACKET LEFT AND RIGHT FRONT
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
EYEBOLT
999
SCREW BRACKET TO REAR FENDER
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW RADIATOR M 10X45
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
999
GROOVED PIN SHIFTING DOME,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
NUT
999
RIVET
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW VALVE TO BRACKET
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
