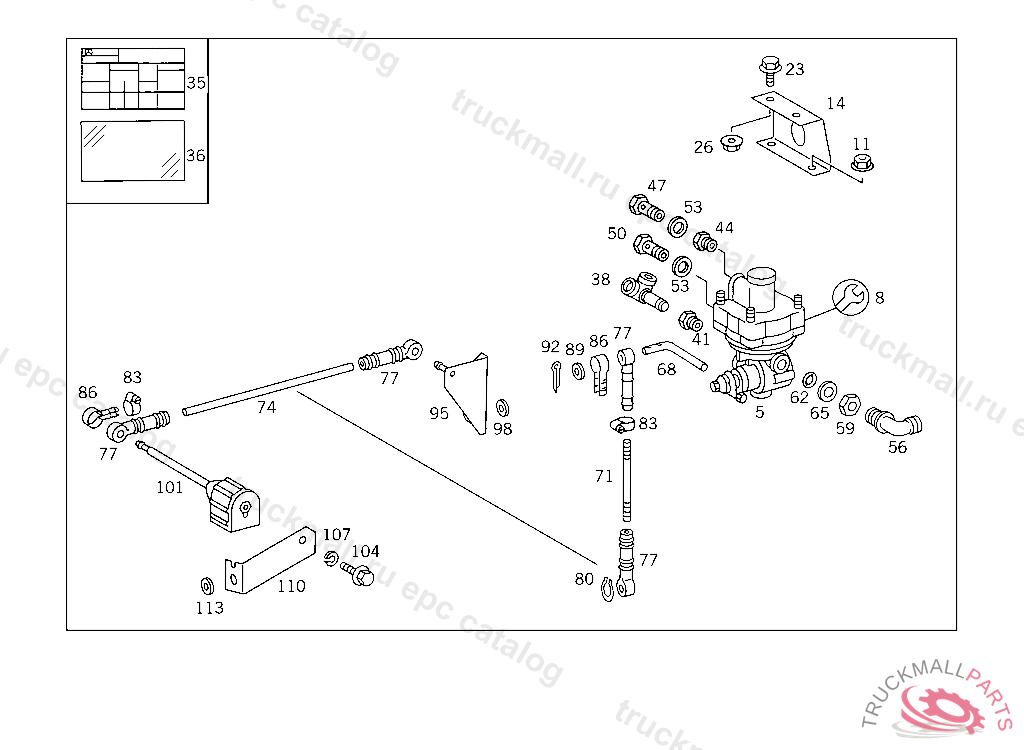

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
8
REPAIR KIT BRAKE POWER REGULATOR KNORR
11
NUT BRACKET TO BRACKET
11
NUT , Replaced By: N913004008001
14
BRACKET BRAKE POWER REGULATOR
23
SCREW , Replaced By: N910142008001
23
SCREW , Replaced By: N910143008002
26
NUT BRACKET TO BRACKET
26
NUT , Replaced By: N913004008001
35
GUIDE SIGN
36
ADHESIVE FOIL GUIDE SIGN
38
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
41
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW , Replaced By: A0009973734
68
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
71
PULL ROD BRAKE POWER REGULATOR CONTROL 8X85
74
ROD BRAKE POWER REGULATOR CONTROL
77
CONNECTOR PULL ROD TO LEVER
80
LOCK RING PULL ROD TO LINK
83
CLAMP , Replaced By: N000000000665
86
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
89
WASHER , Replaced By: N000125008443
92
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
95
BRACKET LINK
98
WASHER , Replaced By: N000125015019
101
METAL SPRING BELLOWS BEARING BRACKET TO REAR AXLE,K 006315
104
SCREW STRUT TO CONSOLE
104
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
107
LOCK WASHER FITTING TO BRACKET
110
BRACKET METAL SPRING BELLOWS,REAR AXLE I
113
WASHER , Replaced By: N000125017016
999
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X55
