Mercedes
ENGINE
OM 421
421.906 MANNHEIM
03 MOVING PARTS
001 RADIATOR,TRANSMISSION OIL COOLER,OIL FILTER,POWER SAVER FAN,LINES AND MOUNTING P IL.2

Mercedes N304017006018 - Болт

OM 421 421.906 MANNHEIM

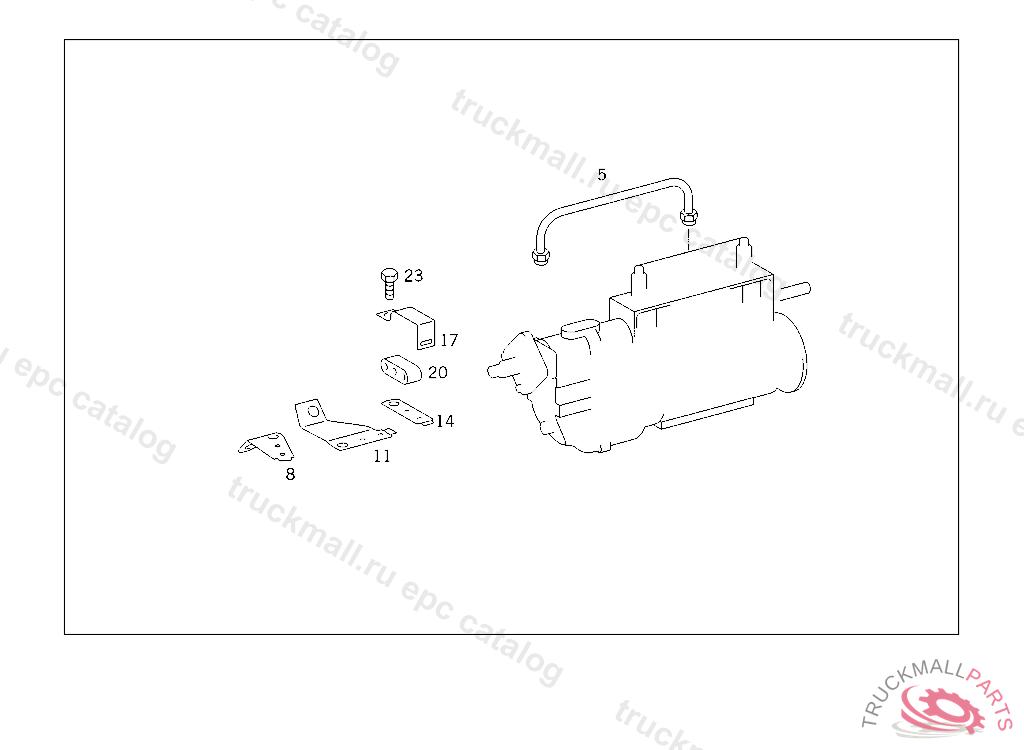

03 MOVING PARTS - 001 RADIATOR,TRANSMISSION OIL COOLER,OIL FILTER,POWER SAVER FAN,LINES AND MOUNTING P IL.2

Поз.
Артикул
Описание
5
A4220707533
LINENO.4,264669
5
A4230700833
LINE CYLINDER NO.1
5
A4230700533
LINE CYLINDER NO.5
5
A4030704933
LINENO.8
5
A4030702733
LINENO.2,264668
5
A4030702633
LINENO.3
5
A4030702533
LINENO.4
5
A4220707633
LINENO.3,264669
5
A4230701033
LINE CYLINDER NO.3
5
A4030705133
LINENO.6
5
A4230700633
LINE CYLINDER NO.12
5
A4220707733
LINENO.2,264669
5
A4030700434
LINE UNBENT
5
A4230700433
LINE CYLINDER NO.8
5
A4030706033
LINENO.7
5
A4230700933
LINE CYLINDER NO.2
8
A4220700566
CLAMPING PIECE LEFT
11
A4420785841
BRACKET RIGHT,264669
11
A4220700366
CLAMPING PIECE RIGHT
11
A4220701940
BRACKET , Replaced By: A4420785841
14
A4220700266
CLAMPING PIECE
17
A4229950122
CLAMP
17
A4229950042
CLAMP , FROM ENGINE 461719 YEAR OF MANUFACTURE 1998, Replaced By: A0009951407
20
A4220780186
SHIM , Replaced By: A3660780286, +001A3660780285
20
A4220780386
SHIM , 340.930 FROM ENGINE 084456
23
N000933006103
SCREW , Replaced By: N304017006018
23
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
23
N910105006002
HEXAGON HEAD BOLT
