Поз.
Артикул
Описание

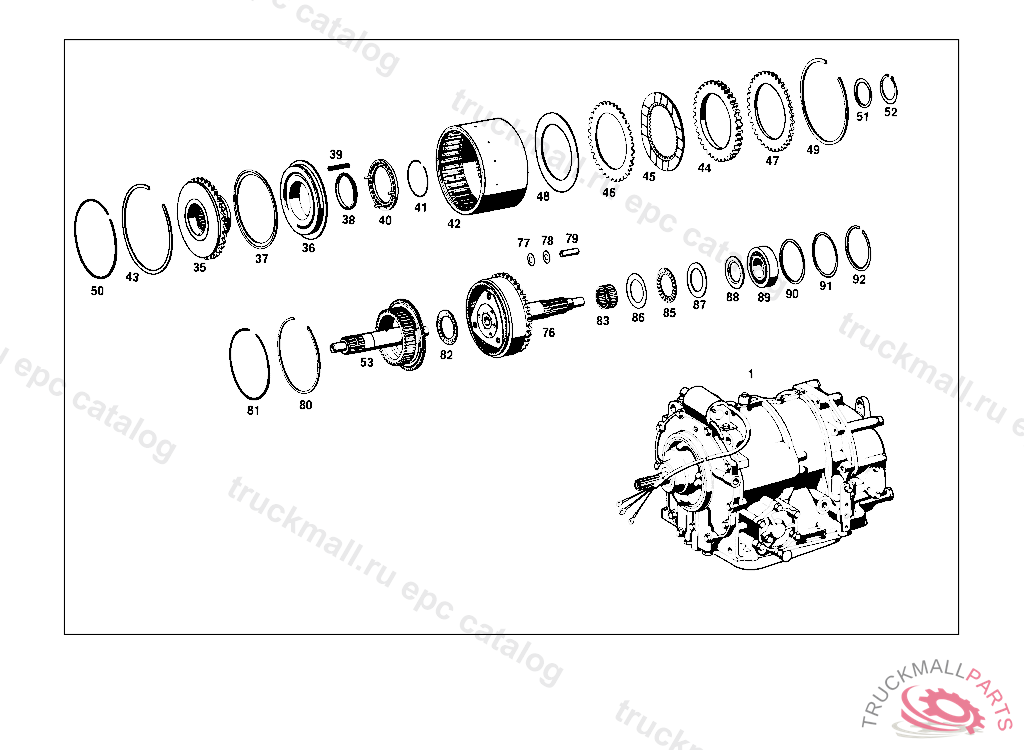

1
AUTOMATIC TRANSMISSION , 016: UP TO CHASSIS 027622 EXCEPT FOR, SEE FOOTNOTE 3, 018: UP TO CHASSIS 028985 EXCEPT FOR, SEE FOOTNOTE 4, 019: UP TO CHASSIS029325 ON SPECIAL REQUEST IN CASE OF R.H.D. RANGE OF DELIVERY INCLUDE: 1 AUXILIARY LEVER 112 270 06 56 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
35
FLANGE , 015 FROM TRANSMISSION 005208
36
PISTON
37
BOOT
38
BOOT
39
SPRING
40
SPRING RETAINER
41
SNAP RING
42
DISC SUPPORT
43
LOCK
44
OUTER DISC , 012,014 FROM TRANSMISSION 001945
44
OUTER DISC , 043 UP TO TRANSMISSION 001944, Replaced By: A1122720726, +001A1122721126, +001A1122721226
45
INNER DISC
45
INNER DISC , 003528, Replaced By: A1122720225, +002A1092720826
46
OUTER DISC 2.0 MM
47
OUTER DISC , 012, 014 FROM TRANSMISSION 001945, 015 FROM TRANSMISSION 007429
48
GUARD PLATE 0.6 MM
49
LOCK
50
WIRE RING
51
SPACER WASHER AS REQUIRED 0.5 MM
52
LOCK RING
53
DRIVE SHAFT
76
PLANETARY CARRIER REAR PLANETARY GEAR TRAIN
77
GUARD PLATE , NO LONGER AVAILABLE
78
GUARD PLATE , NO LONGER AVAILABLE
79
PIN
80
LOCK
81
SNAP RING ,031316
82
NEEDLE BEARING
83
NEEDLE BEARING , NO LONGER AVAILABLE
85
NEEDLE BEARING
86
GUARD PLATE , 015 FROM TRANSMISSION 005208
87
SPACER WASHER AS REQUIRED 0.1 MM
88
GUARD PLATE , NO LONGER AVAILABLE
89
GROOVED BALL BEARING
90
SPACER WASHER
91
SPACER WASHER 0.20 MM
92
SNAP RING
999
BEARING BRACKET , 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 80, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 81
999
LEVER
999
LEVER , UP TO CHASSIS 088724
999
LEVER
999
SEAL RING
999
SEAL RING
999
BALL
999
LINE
999
BUSHING
999
BUSHING , 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 80, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 81
999
SHAFT
999
GUIDE PIVOT , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
999
BOOT , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
999
RUBBER PAD
999
RUBBER RING
999
LEVER , 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 120, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 121, 015 UP TO CHASSI S 002590
999
BREATHER TRANSFER CASE
999
LEVER
999
SCREW , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1159900238
999
BRACKET , 015 FROM CHASSIS 001194
999
BRACKET OIL LINE
999
OUTER DISC , 017664 EXCEPT FOR 015709-017194
999
OUTER DISC
999
LINE
999
LINE
999
OIL FILLER PIPE , 001329
999
OIL FILLER PIPE , 015 UP TO CHASSIS 000705, Replaced By: A1092700184, +001A1122700183
999
GEAR INDICATOR , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
999
LEVER , 016 UP TO CHASSIS 027622 EXCEPT FOR, SEE FOOTNOTE 3, 018 UP TO CHASSIS 012 FROM CHASSIS 058444 ALSO INSTALLED ON, SEE FOOTNOTE 80, 014 FROM CHASSIS 045294 ALSO INSTALLED ON, SEE FOOTNOTE 81
999
LOCK
999
HOUSING
999
SHIFTING TUBE
999
SHIFTING TUBE
999
LEVER
999
BEARING BRACKET
999
SHIFTING TUBE , 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 120, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 121, 015 UP TO CHASSI S 002590
999
BALL SOCKET
999
LEVER
999
BALL SOCKET
999
GEAR INDICATOR , 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 120, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 121, 015 UP TO CHASSI S 002590
999
GEAR INDICATOR , 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 120, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 121, 015 UP TO CHASSI S 002590
999
SHIFT LEVER , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON, SEE FOOTN.36,002,003,005,011,017 FROM CHASSIS 034217 ALSO INSTAL- LED ON,SEE FOOTN.37 AND FOOTN.41
999
KNOB , UP TO CHASSIS: 000,002,010 007280 015 004403 100,102,103,110,112 017470 115 007978
999
BOOT , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTN.36,002,003,005,011,017 FROM CHASSIS 034217 ALSO INSTALLED ON SEE FOOTN.37 AND FOOTN.49
999
BOOT , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTN.36,002,003,005,011,017 FROM CHASSIS 034217 ALSO INSTALLED ON SEE FOOTN.37 AND FOOTN.47
999
GUIDE PIVOT , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON, SEE FOOTN.36,002,003,005,011,017 FROM CHASSIS 034217 ALSO INSTAL- LED ON,SEE FOOTN.37 AND FOOTN.41
999
SPACER WASHER AS REQUIRED 0.2 MM, 015 FROM TRANSMISSION 005208
999
OUTER DISC , Replaced By: A1092721826
999
SEAL RING , 015 UP TO TRANSMISSION 005207
999
SWITCH,AUTOMATIC
999
SWITCH,AUTOMATIC
999
SWITCH,AUTOMATIC
999
SEAL RING FUEL LINE TO SIDE MEMBER
999
BALL SOCKET
999
NUT RETAINER HEATER CASE TO FIRE WALL
999
NEEDLE BEARING
999
NEEDLE BEARING
999
SWITCH BACK-UP LIGHT, UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6
999
BALL SOCKET , 016 UP TO CHASSIS 027622 EXCEPT FOR, SEE FOOTNOTE 3, 018 UP TO CHASSIS
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT
999
EXPANSION PLUG , 015 UP TO TRANSMISSION 001179
999
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
SPRING WASHER , 000029
999
NUT BRACKET MOUNTING
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW PUMP TO BRACKET
999
SECURING CLIP. CIRCLIP
999
NUT
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW PLUG FUEL TANK
999
SCREW PLUG , Replaced By: N007604014110
999
SEAL RING
999
SEAL RINGTO 001 431 72 14
999
WOODRUFF KEY PRIMARY PUMP TO CONVERTER HOUSING
999
LOCK PLATE INTERMEDIATE BEARING
999
NUT
999
NUT BALL PIVOT TO LEVER
999
NUT TACHOGRAPH TO BRACKET
999
NUT , Replaced By: N304032003001
999
SCREW , Replaced By: N304017008034
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008016
999
SCREW
999
SCREW
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
SCREW OIL TANK TO BRACKET
999
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
999
GROOVED BALL BEARING , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
999
LOCK RING , 024,025 UP TO CHASSIS 002863 EXCEPT FOR, SEE FOOTNOTE 3
999
LOCK RING
999
WASHER
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
999
LOCK WASHER
999
LOCK WASHER CLAMP TO BRACKET
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
LOCK WASHER , 002755, Replaced By: A1122772475, +001A1122700079, +002A1122770977, +001A1129932402
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
WASHER , FROM CHASSIS: 005,007,008,015,017 10/50,12/52 009573, ALSO INSTALLED ON: 009319,009323,009404,009444,009449,009450,009454-009456,009458,009459,009461-009472,009475-009477, 009479-009494,009496-009571. 010 10/50,12/52 013397, ALSO INSTALLED ON: 013289,013348,013354,013356,013358,013361-013367,013370-013381,013384-013388,013390-013395. 005,007,008,015,017 20/60,22/62 012727 010 20/60,22/62 015672
999
COTTER PIN , 014,10/50,12/52 UP TO CHASSIS 049461 NOT INSTALLED ON,SEE FOOTN. 15,014,20/60,22,62 UP TO CHASSIS 049390 NOT INSTALLED ON,SEE FOOTN.16AND 19
999
SCREW STEERING COLUMN PANELLING M 5X12
999
SCREW , 015 UP TO TRANSMISSION 005207
999
REINFORCEMENT RIGHT
999
REINFORCEMENT LEFT
999
REINFORCEMENT RIGHT
999
WASHER
999
PIN
999
LOCK
999
SEAL RING
999
SHIFT LEVER , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
999
WASHER
999
COVER
999
PIN
999
SEAL RING
999
BOOT
999
FILTER RANGE OF DELIVERY COMPRISES:, 021,023 FROM TRANSMISSION 006751-009935, FROM TRANSMISSION 023011
999
PLUG , 014 FROM TRANSMISSION 000904, 015 FROM TRANSMISSION 006447
999
SCREW PLUG , 014 UP TO TRANSMISSION 000903
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING , NO LONGER AVAILABLE
999
SPRING , TO 112 270 09 07
999
SPRING , NO LONGER AVAILABLE 015 FROM TRANSMISSION 005208
999
SPRING OUTSIDE, NO LONGER AVAILABLE
999
SPRING
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING , 002755
999
SPRING , NO LONGER AVAILABLE
999
SPRING , TO 112 270 09 07
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING
999
SPACER TUBE
999
PIN REPAIR SIZE 5.5 MM, NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16
999
SCREW , 009013
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
BRACKET , 001193
999
ROD , 000029
999
PISTON , 043 UP TO TRANSMISSION 002079 NO LONGER AVAILABLE
999
SHIFT VALVE , NO LONGER AVAILABLE
999
BUSHING
999
SHIFT VALVE , 015 UP TO TRANSMISSION 005207
999
SHIFT VALVE , 015 UP TO TRANSMISSION 005207
999
BUSHING , 021,023 UP TO TRANSMISSION 002079
999
PISTON , NO LONGER AVAILABLE 015 UP TO TRANSMISSION 005207
999
SHIFT VALVE , NO LONGER AVAILABLE
999
PIN AS REQUIRED 82 MM
999
PISTON , NO LONGER AVAILABLE 012 UP TO CHASSIS 003649
999
PIN AS REQUIRED 81 MM, 015 FROM TRANSMISSION 002756
