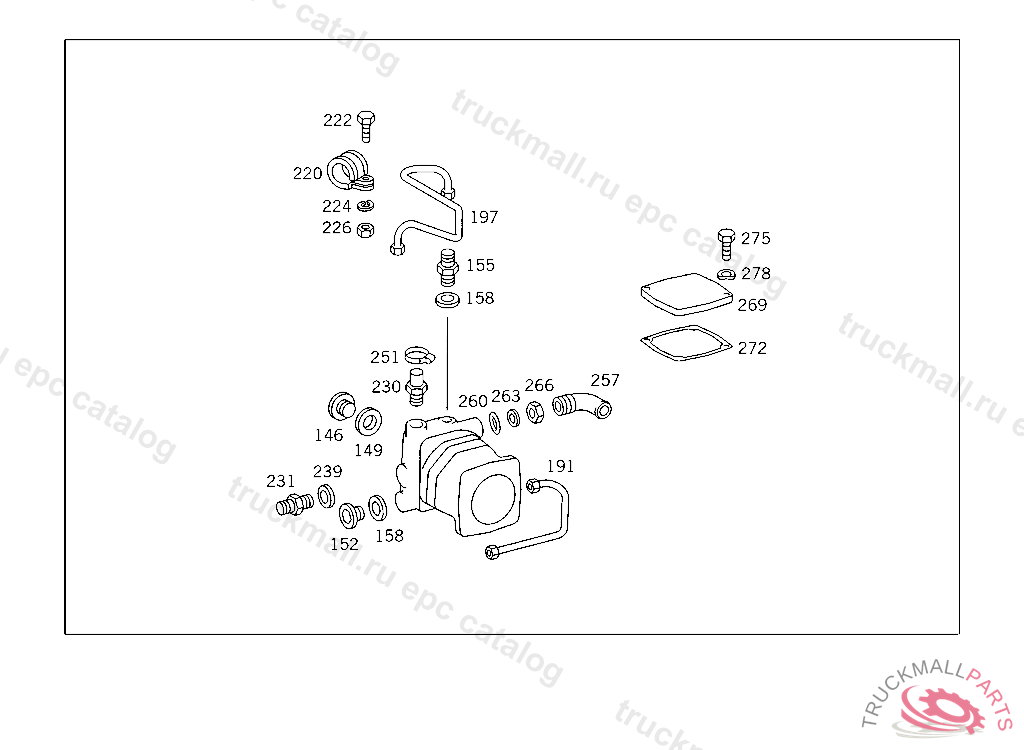

Поз.
Артикул
Описание
146
SCREW PLUG OIL COOLER,5 360280
146
SCREW PLUG , Replaced By: A0009973532
149
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
152
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
152
SCREW PLUG , Replaced By: N000908022011
155
ADAPTER FITTINGTO 376 131 74 01
158
SEAL RING LINE CONNECTION
191
LINE ,053699, Replaced By: A4422008552
197
LINE CRANKCASE,AIR COMPRESSOR
220
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
222
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
222
SCREW , Replaced By: N304017008016
224
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
226
NUT
231
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
239
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
257
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
260
SEAL RING LINE CONNECTION
263
THRUST RING SUCTION LINE TO OIL PUMP
266
NUT SUCTION LINE TO OIL PUMP
269
CAP TO PLUG AIR COMPRESSOR OPENING,128243
269
CAP , Replaced By: A4421310021
272
GASKET
272
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
272
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
272
GASKET OIL FILTER TO CYLINDER CRANKCASE
272
GASKET OIL FILTER TO CYLINDER CRANKCASE
275
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
278
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
278
SPRING WASHER , Replaced By: N000137008212
