Поз.
Артикул
Описание

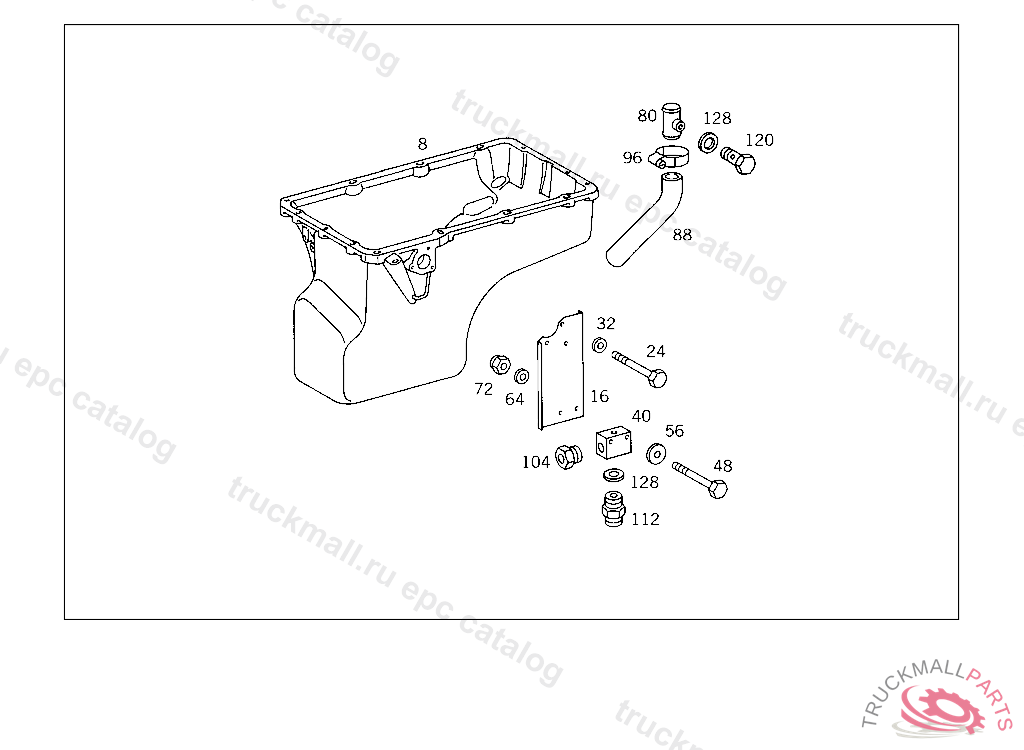

8
OIL PAN
8
OIL PAN
8
OIL PAN
16
BRACKET ENGINE OIL LEVEL CHECK
24
SCREW VALVE TO BRACKET
24
SCREW VALVE TO BRACKET, Replaced By: N304014008002
32
WASHER , Replaced By: N000125008443
32
WASHER EXHAUST MUFFLER TO STRAP
40
BRACKET ENGINE OIL LEVEL CHECK
48
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
48
SCREW , Replaced By: N304017008028
56
WASHER , Replaced By: N009021008213
56
WASHER BRACKET TO LEFT SIDE MEMBER
64
WASHER EXHAUST MUFFLER TO STRAP
64
WASHER , Replaced By: N000125008443
72
NUT , Replaced By: N913004008001
72
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
PIPE ELBOW ENGINE OIL LEVEL CHECK
88
HOSE , Replaced By: A6205280182
88
HOSE CONNECTION OF OIL FILLER PIPES
96
CLAMP , Replaced By: N000000000670
104
FITTING TWO-WAY VALVE "12",4 4121264 691315
112
FITTING LINE CONNECTION
112
FITTING LINE CONNECTION, Replaced By: N000000006446
120
HOLLOW SCREW HEATING CONNECTION
128
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
BRACKET ENGINE OIL LEVEL CHECK
999
BRACKET ENGINE OIL LEVEL CHECK
999
HOSE
999
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
