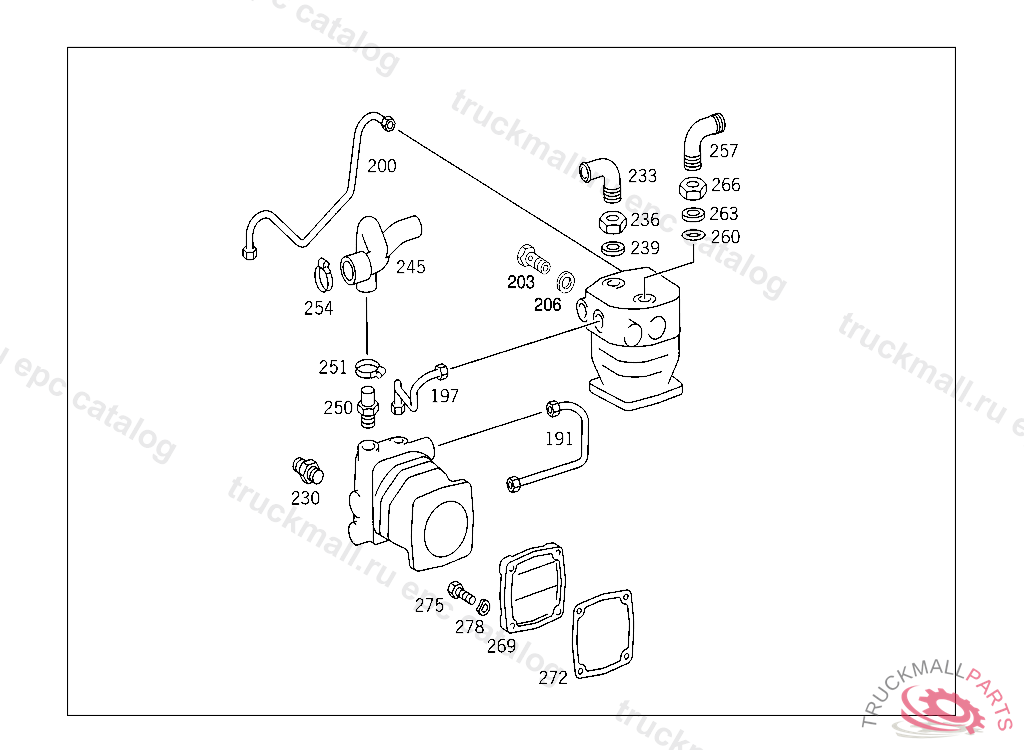

Поз.
Артикул
Описание
191
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR,650332
191
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
191
LINE , Replaced By: A4422000553
197
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR
200
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR
200
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
203
HOLLOW SCREW FUEL LINE TO FEED PUMP
206
SEAL RINGTO 000 553 03 05,000 553 18 05,
230
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
230
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
233
PIPE BEND AT AIR COMPRESSOR
233
PIPE BEND
236
NUT MANUAL CONTROL
239
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
239
SEAL RING OIL DRAIN 30X36 MM
239
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
245
HOSE MOLDED HOSE
245
HOSE AIR-COMPRESSOR AIR INTAKE
245
HOSE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
250
FITTING AIR COMPRESSOR,CONNECTION: "10"
250
FITTING AT AIR COMPRESSOR
251
LOOM TIE , Replaced By: N000000000668
251
CLAMP , Replaced By: A0069970490
251
CLAMP25-40X13 MM
254
LOOM TIE
254
CLAMP , Replaced By: A0069970590
257
ELBOW FITTING , Replaced By: A0039901671
260
SEAL RING LINE CONNECTION
263
THRUST RING SUCTION LINE TO OIL PUMP
266
NUT MANUAL CONTROL
266
NUT 3/2-WAY VALVE TO CAB,4 685151
269
CAP TO PLUG AIR COMPRESSOR OPENING,128243
272
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
272
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
272
GASKET OIL FILTER TO CYLINDER CRANKCASE
272
GASKET OIL FILTER TO CYLINDER CRANKCASE
275
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
278
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
278
SPRING WASHER , Replaced By: N000137008212
999
GASKET , Replaced By: A4421310080
999
GASKET , Replaced By: A4421311980
999
GASKET , Replaced By: A4421310680
999
REPAIR KIT , Replaced By: A4421300720
