Поз.
Артикул
Описание

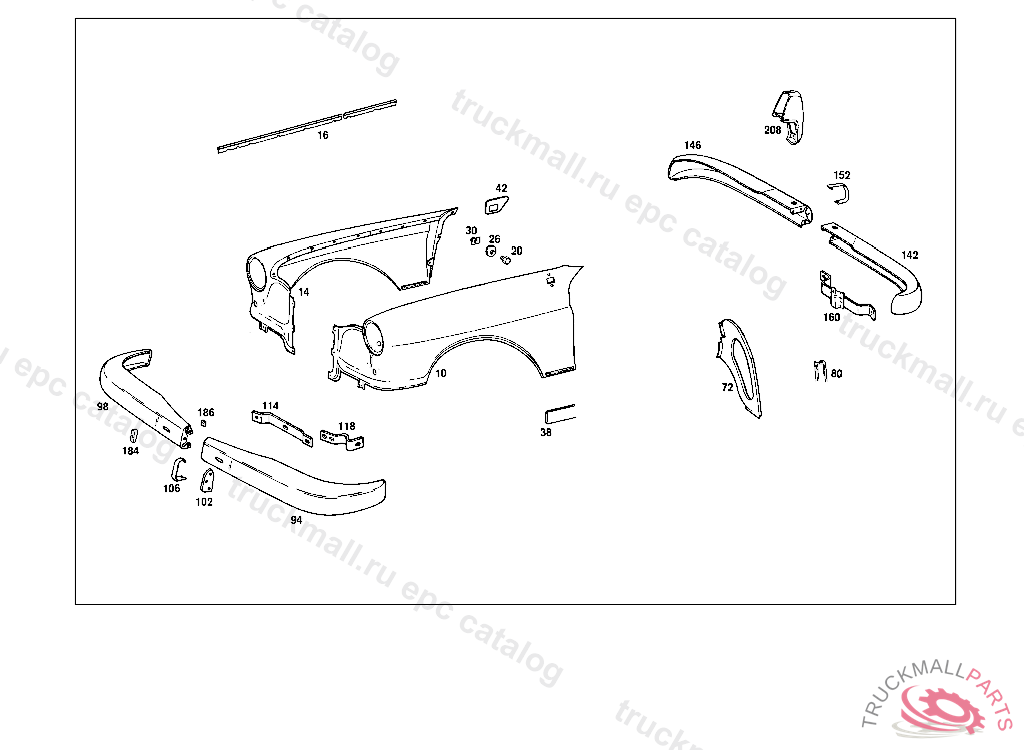

10
FRONT FENDER LEFT, 000,001,004,010,002,003,005,011 FROM CHASSIS 130558,100,101,104,110 FROM CHASSIS 225648
14
FRONT FENDER RIGHT, 000,001,004,010,002,003,005,011 FROM CHASSIS 130558,100,101,104,110 FROM CHASSIS 225648
16
ADHESIVE TAPE (SEAL),BETWEEN OUTSIDE REAR PILLAR AND ROOF 560 MM, ORDER BY THE METER
20
SCREW PUMP TO BRACKET
20
SCREW COVER PLATE TO BRACKET
26
WASHER
30
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
38
PAD 2 MM
38
INTERMEDIATE LAYER , Replaced By: A1158810997
42
RUBBER SEAL
72
PARTITION PANEL LEFT
80
SEAL 770 MM ORDER BY THE METER
94
FRONT BUMPER FACE BAR LEFT
98
FRONT BUMPER FACE BAR RIGHT
102
REINFORCEMENT
106
BUMPER JOINT COVER
114
BRACKET
118
BRACKET
142
REAR BUMPER FACE BAR LEFT
146
REAR BUMPER FACE BAR RIGHT
152
BUMPER JOINT COVER
160
BRACKET LEFT
184
PAD LICENSE PLATE TO FRONT BUMPER
186
PAD LICENSE PLATE TO FRONT BUMPER
999
SHEET METAL NUT , Replaced By: N913008006300
999
PLUG , Replaced By: A0009974886
999
RUBBER SEAL , Replaced By: A1108840098
999
RUBBER RING LICENSE PLATE TO FLAP
999
RUBBER SEAL , FROM CHASSIS:110.010 155808 110.011 013995 110.110 274548 111.010 088651 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0039895485
999
ADHESIVE TAPE , Replaced By: A0019875646
999
WASHER
999
WASHER
999
PLATE , Replaced By: A0009902048
999
WASHER
999
SCREW
999
NUT RETAINER DRIVE TO REAR PILLAR
999
LOCK
999
LOCK FRAME TO REINFORCEMENT FRAME
999
LOCK
999
PLUG
999
SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER
999
ADHESIVE TAPE , Replaced By: A0019875646
999
MERCEDES BADGE
999
REPAIR KIT FRONT FENDER, 000,001,004,010 UP TO CHASSIS 161049,002,003,005,011 UP TO CHASSIS 016719,100,101,104,110 UP TO CHASSIS 287153
999
REPAIR KIT , Replaced By: A1115860188
999
SAFETY HOOK , Replaced By: A1108800264
999
RADIATOR GRILLE , Replaced By: A1108800085, +003A0019886178, +020A0019887578
999
BRACKET RIGHT
999
SUPPORT RIGHT
999
ENGINE HOOD RELEASE CABLE , Replaced By: A1108800559
999
ENGINE HOOD CATCH , Replaced By: A1158870006
999
ENGINE HOOD CATCH , Replaced By: A1158800160
999
REAR BUMPER FACE BAR REAR LEFT, UP TO CHASSIS: 111.010 069692
999
REAR BUMPER FACE BAR REAR RIGHT, UP TO CHASSIS: 110.010 130557 110.110 225647 111.010 069692
999
FRONT FENDER , 000,001,004,010,002,003,005,011 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647, Replaced By: A1108802318, +001A1109871344
999
FRONT FENDER , 000,001,004,010,002,003,005,011 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647, Replaced By: A1108802418, +001A1109871344
999
FRONT FENDER , Replaced By: A1105860088
999
FRONT FENDER , Replaced By: A1105860188
999
WASHER , Replaced By: A0009878651
999
INTERMEDIATE LAYER , Replaced By: A0039895485
999
INTERMEDIATE LAYER , Replaced By: A1158810997
999
COVERING RIGHT ENGINE HOOD SUPPORT
999
LEVER RIGHT, 000,001,004,010 FROM CHASSIS 108183,100,101,104,110 FROM CHASSIS 180688
999
WASHER
999
WASHER
999
REPAIR KIT FRONT FENDER, 000,001,004,010 FROM CHASSIS 161050,002,003,005,011 FROM CHASSIS 016720,100,101,104,110 FROM CHASSIS 287154
999
PARTITION PANEL RIGHT, 000,001,004,010 FROM CHASSIS 064106 ALSO INSTALLED ON,SEE FOOTNOTE 009,100,101,104,110 FROM CHASSIS 099642 ALSO INSTALLED ON,S EE FOOTNOTE 010 EXCEPT FOR 099892
999
SPRING , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1808880034
999
MERCEDES STAR , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1808880109
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SCREW LICENSE PLATE TO FLAP
999
SCREW LICENSE PLATE TO FRONT BUMPER
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER
999
WASHER , FROM CHASSIS: 005,007,008,015,017 10/50,12/52 009573, ALSO INSTALLED ON: 009319,009323,009404,009444,009449,009450,009454-009456,009458,009459,009461-009472,009475-009477, 009479-009494,009496-009571. 010 10/50,12/52 013397, ALSO INSTALLED ON: 013289,013348,013354,013356,013358,013361-013367,013370-013381,013384-013388,013390-013395. 005,007,008,015,017 20/60,22/62 012727 010 20/60,22/62 015672
999
WASHER MOUNTING PLATE TO BODY FLOOR
999
WASHER
999
LOCK WASHER BRACKET TO COVERING
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006020
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO SIDE MEMBER
999
NUT PLUG SOCKET TO BRACKET,5 906887
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT TACHOGRAPH TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032008006
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO WINDOW SILL
999
SHEET METAL SCREW6.3X16
999
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
999
SHEET METAL SCREW HOSE TO FIRE WALL
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SHEET METAL SCREW , Replaced By: N007981004233
999
SHEET METAL SCREW CONTROL UNIT TO CAB B 5.5X19
999
SHEET METAL SCREW
999
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
999
SCREW , Replaced By: N007985004107
999
SCREW REGULATOR AND CUT-OUT M 6X12
999
WASHER , Replaced By: N009021006208
999
WASHER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO COVERING
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
NUT BATTERY CABLE
999
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
