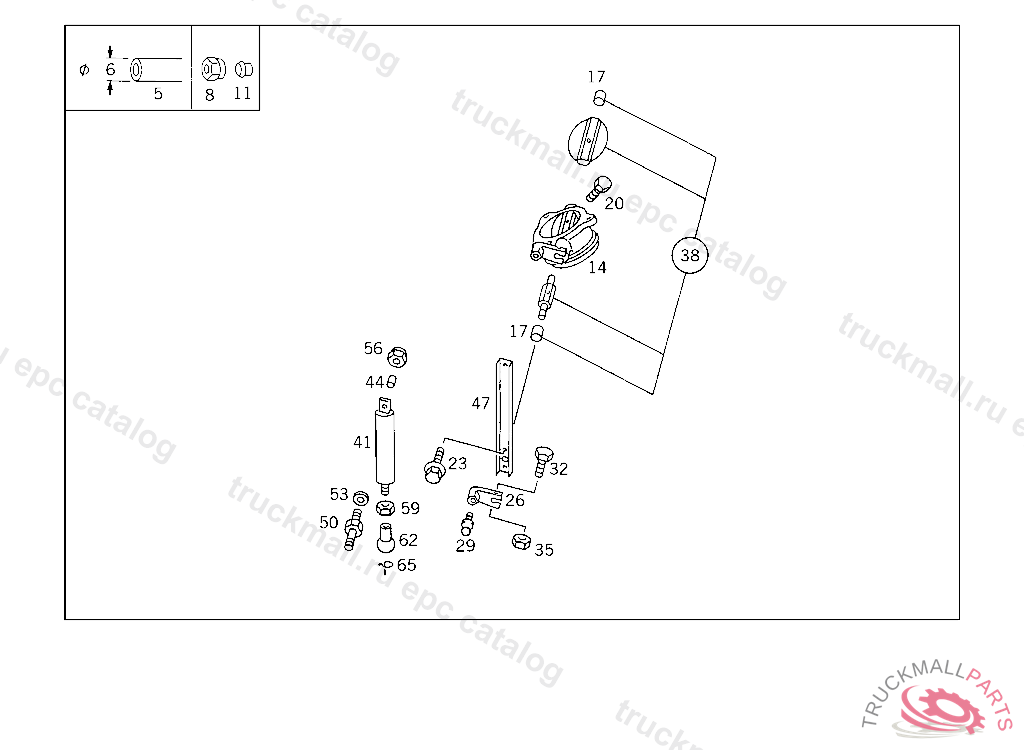

Поз.
Артикул
Описание
5
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
5
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
8
UNION NUT
11
GLAND , Replaced By: A0019901667
11
SEAL CONE
14
THROTTLE HOUSING RIGHT
17
BUSHING
20
SCREW SHAFT TO THROTTLE VALVE
20
SCREW , Replaced By: N000933008390
23
SCREW BRACKET TO THROTTLE HOUSING
26
LEVER LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT
29
BALL PIVOT POWER CYLINDER TO THROTTLE VALVE LEVER
32
SCREW LEVER TO THROTTLE VALVE SHAFT
35
NUT BATTERY MOUNTING
35
NUT CYLINDER TO BRACKET TO0002902112
38
VALVE PARTS KIT
41
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
41
CYLINDER , Replaced By: A0004305926
41
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
44
BUSHING"WABCO"
47
BRACKET EXHAUST-BRAKE POWER CYLINDER
50
PIN POWER CYLINDER TO BRACKET
53
WASHER INTERMEDIATE SPEED STOP
56
NUT POWER CYLINDER TO BRACKET
59
NUT , Replaced By: N304032008006
59
NUT
62
BALL SOCKET POWER CYLINDER TO THROTTLE VALVE LEVER
65
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
