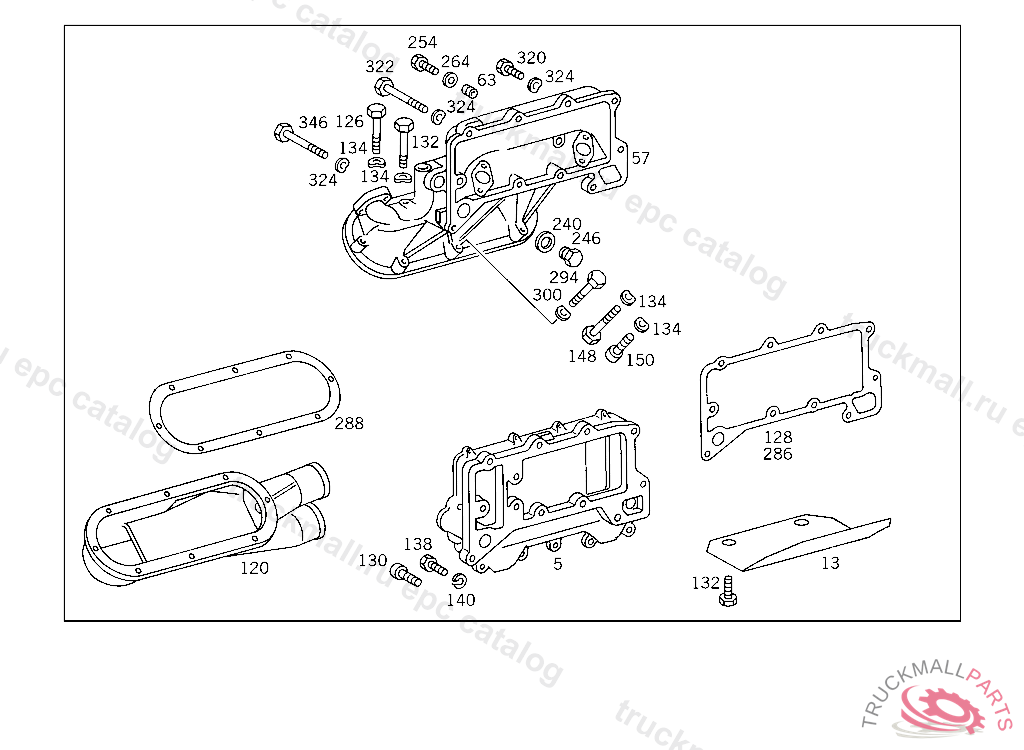

Поз.
Артикул
Описание
5
COVER OIL FILTER, FROM ENGINE 404 001957 ALSO INSTALLED ON 001645-001716,001720-001729,001732-001740,001748,001782-001786,001797-001801,001818,001832-001836, 001870-001879,001902-001903,001905-001907,001910-001914,001928-001933,001949-001952,001955.
5
COVER OIL FILTER, UP TO ENGINE 404 001956 EXCEPT FOR 001645-001716,001720-001729,001732-001740,001748,001782-001786,001797-001801,001818,001832-001836, 001870-001879,001902-001903,001905-001907,001910-001914,001928-001933,001949-001952,001955. 401-403 129660 404 001964 407 017497
13
SEAL RING VALVE TO VALVE,K 025179
57
COVER OIL FILTER
63
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
63
THREADED INSERT
63
THREADED UNION OIL FILTER
63
THREADED INSERT
63
THREADED INSERT
120
HOUSING SUPPLEMENTARY OIL COOLER
126
SCREW VALVE TO BRACKET M 8X55
126
SCREW , Replaced By: N304017008043
128
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
130
SCREW OIL COOLER TO CYLINDER CRANKCASE
132
SCREW BAFFLE PLATE TO OIL COOLER HOUSING
132
SCREW VALVE TO BRACKET
132
SCREW VALVE TO BRACKET, Replaced By: N304014008002
134
SPRING WASHER , Replaced By: N000137008212
134
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
138
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
138
SCREW , Replaced By: N304017010047
138
SCREW BRACKET TO SIDE MEMBER M10X35
140
SPRING WASHER
148
SCREWM 8X40
150
SCREW SPRING STOP
240
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
240
SEAL RING
240
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
246
SCREW PLUG OIL COOLER,5 360280
246
SCREW PLUG , Replaced By: N000908026008
246
SCREW PLUG , Replaced By: A0009973532
254
SCREW PLUG , Replaced By: A1119970330
254
SCREW PLUG , Replaced By: N007604014110
254
SCREW PLUG FUEL TANK
254
SEAL RING FROM FUEL TANK TO FUEL TANK
254
SCREW PLUG, FILLING OIL DRAIN
264
SEAL RING FUEL LINE TO FEED PUMP
264
SEALING RING. SEAL RING ENGINE BREATHING
264
SEAL RING INJECTION PUMP
264
SCREW PLUG FUEL TANK
264
SCREW PLUG , Replaced By: N007604014110
286
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
288
GASKET OIL COOLER TO COVER
294
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
300
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
300
SPRING WASHER , Replaced By: N000137008212
320
SCREW , Replaced By: N304017010047
320
SCREW BRACKET TO SIDE MEMBER M10X35
320
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
320
SCREW OIL FILTER TO CYLINDER CRANKCASE
320
SCREW SUPPORT WITH EDDY CURRENT BRAKE TO SUPPORT
320
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
322
SCREW SHIFTING ROD TO SHIFT LEVER
322
SCREW , Replaced By: N000933010192
324
SPRING WASHER STEERING COLUMN BRACKET TO CAB
324
SPRING WASHER
346
SCREW BRACKET TO REAR AXLE
999
PART NAME MISSING OIL FEED LINE TO OIL FILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
ROUND SECTION SEAL RING INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
ROUND SECTION SEAL RING INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
SCREW CLAMP ON BRACKET
999
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
999
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
999
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
999
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
LOCKING CONE
999
SCREW FITTING , Replaced By: A4039971172
999
UNION NUT
999
FITTING WATER SEPARATOR
999
GASKET , Replaced By: N917003026003
999
CLAMPING PIECE OIL FEED LINE TO OIL FILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
CLAMPING PIECE OIL FEED LINE TO OIL FILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
PIPE ELBOW OIL RETURN LINE TO OIL PAN, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
PIPE ELBOW OIL LINES ON LONG-LIFE OIL FILTER
999
SCREW CONNECTOR TO REAR SHIFTING ROD
999
SCREW CLUTCH OPERATION,4 282707
999
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
999
SCREW SUPPORT TO FENDER
999
SCREW LINE MOUNTING M 10X50
999
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
999
SEAL RING
999
SEAL RING FILTER BOWL TO FILTER HEAD
999
SEAL RING
999
SEAL RING BRAKE POWER REGULATOR,CONNECTION: "41,42",067640
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010047
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304014010004
999
SCREW , Replaced By: N304017008018
999
CAP BOLT. SCREW BUMPER TO BRACKET,5 398606
999
SCREW INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
SCREW PLUG OIL FILLING
999
SCREW PLUG FRONT COVER
999
SCREW PLUG TO PLUG THE OIL PASSAGES
999
LOCK RING SHIFT LEVER BEARING
999
WASHER VIBRATION ABSORBER TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW PLUG , Replaced By: A1119970330
999
BRACKET OIL FEED LINE TO OIL FILTER
999
SCREW PLUG OIL LINES ON LONG-LIFE OIL FILTER
999
OIL LINE OIL LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
OIL LINE OIL FEED LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
OIL LINE OIL FEED LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
FITTING OIL FEED LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SPACER
999
OIL FILTER COVER
999
BRACKET OIL FEED LINE TO OIL FILTER
999
SCREW PLUG SHIFTING SHAFT DETENT
999
GASKET , Replaced By: A4421880580
999
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
999
HOUSING , Replaced By: A4241800037
999
COVER
999
BRACKET OIL LINES
999
BRACKET OIL LINES
999
CLAMPING BRACKET OIL FILTER TO BRACKET,5 218089
999
COVER , Replaced By: A4441801538
999
COVER
999
COVER , Replaced By: A4071800438
999
LINE
999
BAFFLE PLATE OIL COOLER HOUSING,001965
999
GASKET , Replaced By: A4441880080
999
GASKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 401-403, 421-423, 441-443 735001 404, 424, 444 051301 407, 447015077, Replaced By: A4441840080
999
COVER OIL COOLER HOUSING
999
COVER OIL FILTER
999
HOUSING , Replaced By: A4041800637
999
PARTITION PANEL ,001964
999
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
999
SCREW PLUG
999
GASKET , Replaced By: N917003026000
999
GASKET , Replaced By: A4421880280
999
GASKET , Replaced By: A4031840380
999
VALVE , Replaced By: A4031840132
999
FILTER ELEMENT , Replaced By: A4021800009
999
COVER OIL FILTER,OIL COOLER
999
COVER , Replaced By: A0011840408
999
OIL FILTER , Replaced By: A0011840408
999
COVER , Replaced By: A4031801438
999
FILTER BOWL OIL FILTER BOWL
999
GASKET
999
FILTER ELEMENT RANGE OF DELIVERY
999
FILTER ELEMENT , Replaced By: A4011800009
999
OIL FILTER , Replaced By: A0011840408
999
FLANGE HEATING CONNECTION LOCK,5 301949
999
SCREW PLUG , Replaced By: A4429970030
999
SCREW PLUG , Replaced By: A4039970230
999
FITTING , Replaced By: A0029977472
999
SCREW INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
SEAL RING FILTER BOWL TO FILTER HEAD
999
SPRING
999
SPRING
999
SCREW , Replaced By: N910105016029
999
OIL COOLER
999
OIL FILTER , Replaced By: A4011800210
999
OIL FILTER , Replaced By: A4031801110
999
FILTER ELEMENT
999
FILTER ELEMENT , Replaced By: A0001801809
999
VALVE , NOT USED
999
SEAL RING , Replaced By: A0009976049
999
OIL COOLER ,907 845891
999
OIL COOLER , ORDER NUMBER 001 188 40 01/29, Replaced By: A0021882301
999
OIL COOLER , ORDER NUMBER 001 188 37 01/29, Replaced By: A0011888901
999
OIL COOLER
999
OIL COOLER , ORDER NUMBER 001 188 30 01/29, Replaced By: A0011883701
999
OIL COOLER , Replaced By: A0011884001
999
OIL COOLER , Replaced By: A0011883101
999
OIL COOLER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0011883001
999
OIL COOLER , Replaced By: A0011883101
999
OIL COOLER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 121799, Replaced By: A0011883101
999
OIL COOLER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0001886401
999
FILTER ELEMENT , Replaced By: A4011840025
999
FILTER ELEMENT , Replaced By: A4011840025
999
FILTER ELEMENT
999
FILTER ELEMENT , Replaced By: A0011843825
999
FILTER ELEMENT , Replaced By: A4011840025
999
FILTER ELEMENT , Replaced By: A4011840025
999
FILTER ELEMENT , Replaced By: A4011840025
999
SCREW SCREENING PLATE TO CYLINDER HEAD
999
SCREW FLANGE TO PIPE SOCKET
999
OIL COOLER , Replaced By: A0011883101
999
OIL COOLER , Replaced By: A0011881201
999
OIL COOLER , Replaced By: A0011881101
999
OIL COOLER , Replaced By: A0011883001
999
HOUSING , Replaced By: A4011800011
999
HOUSING OIL FILTER BOWL
999
SCREW FILTER BOWL TO FILTER HEAD
999
VALVE
999
STRAINER , Replaced By: A4031840025
999
STRAINER , Replaced By: A4011840025
999
STRAINER , Replaced By: A4011840025
999
SEAL RING , ELIMINATED,NO LONGER REQUIRED
999
VALVE
999
LEVER THREE-WAY FAUCET,025346
999
COVER OIL FILTER
999
FILTER ELEMENT
