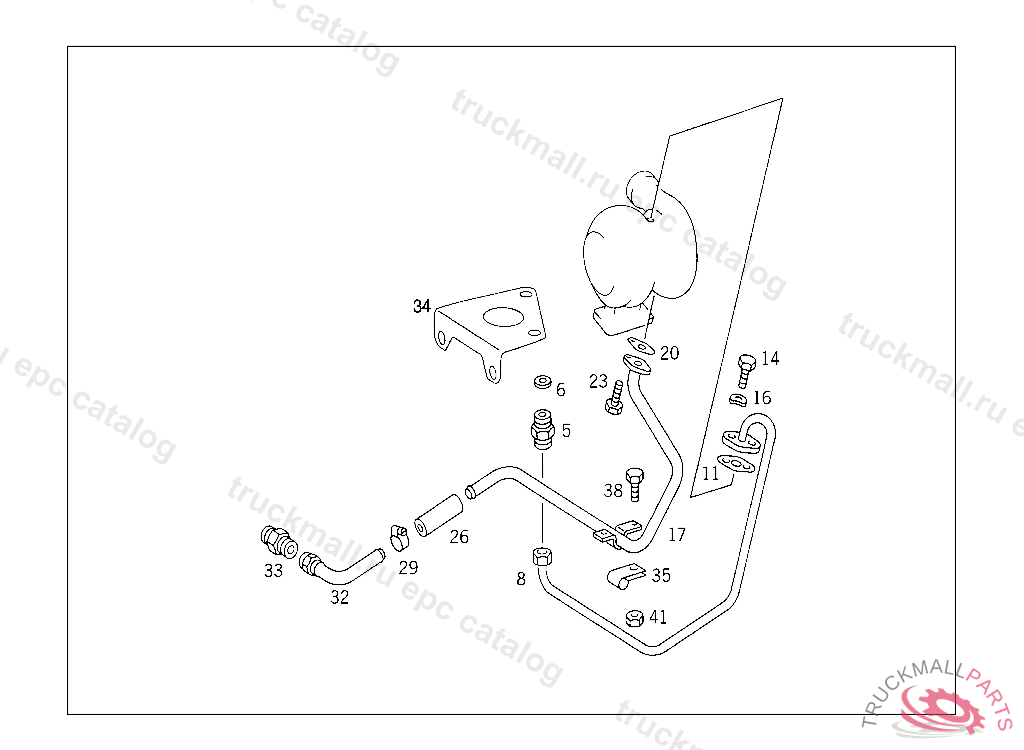

Поз.
Артикул
Описание
5
FITTING COOLING WATER LINE TO TURBOCHARGER
6
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
8
OIL LINE TURBOCHARGER OIL FEED
11
GASKET FLANGE TO TURBOCHARGER
14
SCREW FITTING TO TRANSMISSION M8X32
16
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
16
SPRING WASHER , Replaced By: N000137008212
17
OIL LINE TURBOCHARGER OIL RETURN
20
GASKET OIL RETURN LINE TO TURBOCHARGER
23
SCREW PIPE BEND TO BRACKET
26
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, ORDER BY THE METER FROM ENGINE 230908 YEAR OF MANUFACTURE 1992 UP TO ENGINE 432713 YEAR OF MANUFACTURE 1996
26
HOSE , Replaced By: A4279971282
29
CLAMP PRESSURE REGULATOR
32
OIL LINE OIL RETURN LINE TO OIL PAN
33
FITTING OIL RETURN LINE TO OIL PAN
34
BRACKET OIL DELIVERY LINE TO OIL RETURN LINE
35
CLAMP DE-AERATION LINE TO CHARGING AIR TRANSVERSE PIPE
35
CLAMP LINE MOUNTING
35
CLAMP LINE MOUNTING SA 088202/01
38
SCREW STOP TO BATTERY CASE
41
NUT ENGINE MOUNTING M8
41
HEXAGON NUT. NUT , Replaced By: N913023008002
