Поз.
Артикул
Описание
10

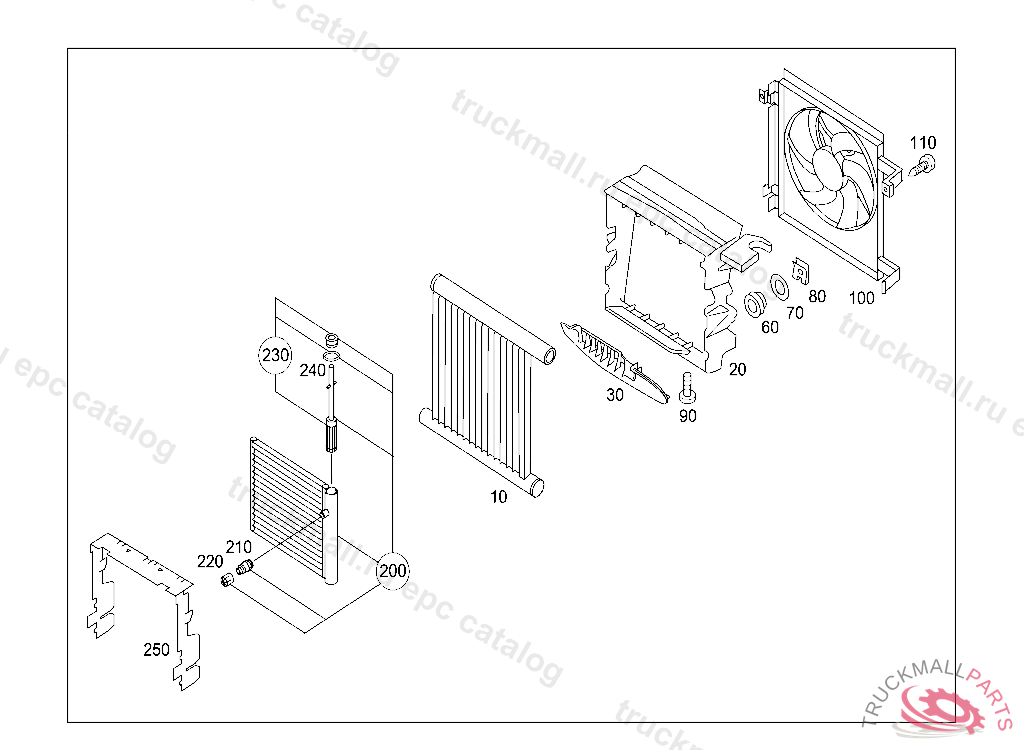

RADIATOR COOLING WATER SYSTEM
10
RADIATOR COOLING WATER SYSTEM, Replaced By: Q0003428V007000000
20
MODULE CARRIER MCO RADIATOR, H 50002120020211 H 99999820021230 J 00000020021230
20
MODULE CARRIER RADIATOR, 20021230
30
INTAKE AIR DUCT MCO AT SUPPORT
60
RUBBER GROMMET AT SUPPORT
70
WASHER AT SUPPORT
80
SPRING CLIP AT SUPPORT
90
HEXALOBULAR BOLT GROUND LINE TO GRID HEATER M6X25
90
BOLT , Replaced By: N000000002439, +001N000000003260
100
FAN AC
100
FAN
110
PLASTIC SCREW TORX M6 X 1
200
A/C CONDENSER 16 MM , 20021230, Replaced By: Q0013198V002000000
200
A/C CONDENSER 16 MM , H 99999820021230 J 00000020021230
200
A/C CONDENSER 16 MM , J 00000120021230
210
FILLER VALVE YP 13-1001-0
210
VALVE INSERT TO INDUCTION LINE
220
PROTECTIVE CAP
220
PROTECTIVE CAP
230
DRYER CARTRIDGE , J 00000120021230
230
DRYER CARTRIDGE , J 00000020021230
240
O-RING N 3837 34.65X1.78 , NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY
250
AMBIENT SEAL
