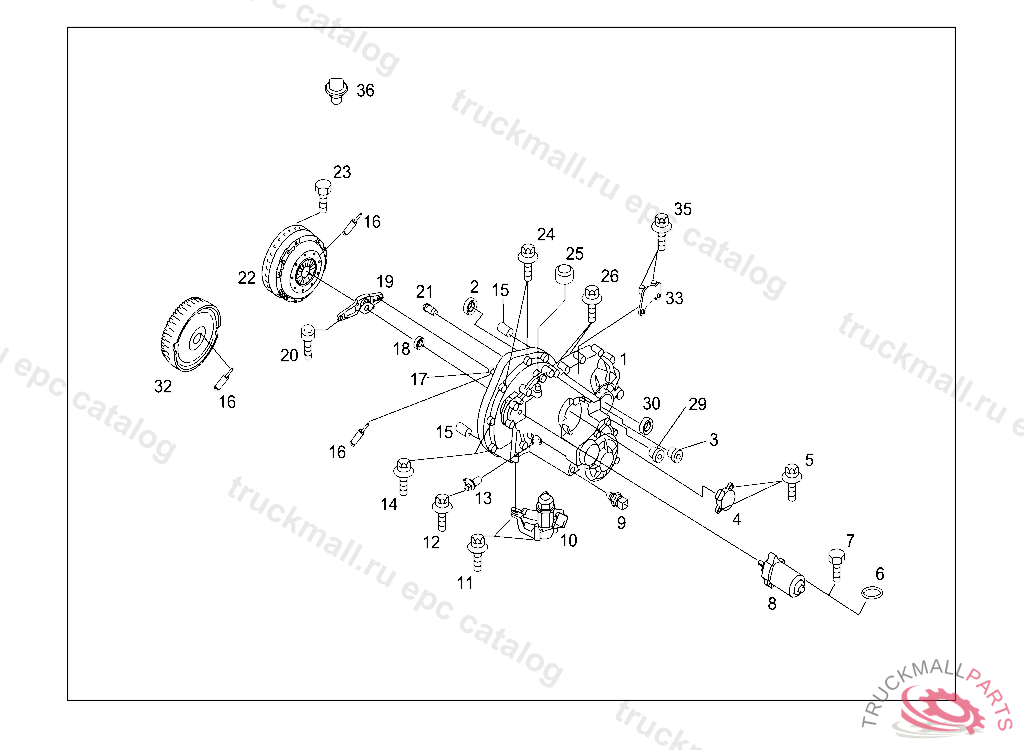

Поз.
Артикул
Описание
1
REPLACEMENT TRANSMISSION , 20021230
1
REPLACEMENT TRANSMISSION
1
TRANSMISSION MCT 1 45 KW
1
REPLACEMENT TRANSMISSION , 20021230
2
ROTARY SHAFT SEAL
3
SCREW PLUG M18 X 1.5
4
ANGLE SENSOR , Replaced By: Q0003254V009000000
4
ANGLE SENSOR
5
SCREW MALE BIHEX M14 X 1.
6
O-RING 55 X 2
7
TORX SCREW M6 X 20 - 8.8M6 X 35
8
ELECTRIC MOTOR , Replaced By: Q0003227V009000000
8
ELECTRIC MOTOR
9
TEMPERATURE SENSOR
10
CLUTCH ACTUATOR , Replaced By: Q0003226V016000000
10
CLUTCH ACTUATOR
11
BOLT
12
SCREW MALE BIHEX M14 X 1.
13
SPEED SENSOR 37/45 KW
13
SPEED SENSOR 37/45 KW
14
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
15
CENTERING SLEEVE
16
LUBRICATING GREASE TRANSMISSION
17
MUSHROOM-SHAPED BUTTON
18
ROTARY SHAFT SEAL
19
RELEASE SYSTEM , Replaced By: Q0001709V007000000
19
RELEASE SYSTEM
20
SCREW MALE BIHEX M14 X 1.
21
DRUM CONTROLLER DETENT
22
MODULE CLUTCH , H 51850620020325, Replaced By: Q0003231V014000000
22
MODULE CLUTCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20020701, Replaced By: Q0003231V015000000
22
MODULE CLUTCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 00000020030103, Replaced By: Q0003231V016000000
23
SCREW HEX M8X20 - 8.8
23
BOLTM10 X 18 - 8.8
24
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
25
BREATHER CAP
26
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
26
TORX SCREW M6 X 20 - 8.8M8 X 70 - 8.8 E12, 20020701
29
SCREW PLUG M18 X 1.5
30
ROTARY SHAFT SEAL
32
MODULE CLUTCH
32
MODULE CLUTCH DIESEL MODE
32
MODULE CLUTCH DIESEL MODE , 20020701, Replaced By: Q0001454V010000000
32
MODULE CLUTCH DIESEL MODE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20020701, Replaced By: Q0009856V001000000
32
MODULE CLUTCH DIESEL MODE , Replaced By: Q0009856V002000000
33
HOLDER MIXING HOUSING
35
SCREW TORX M7 X 23M6 X 50
