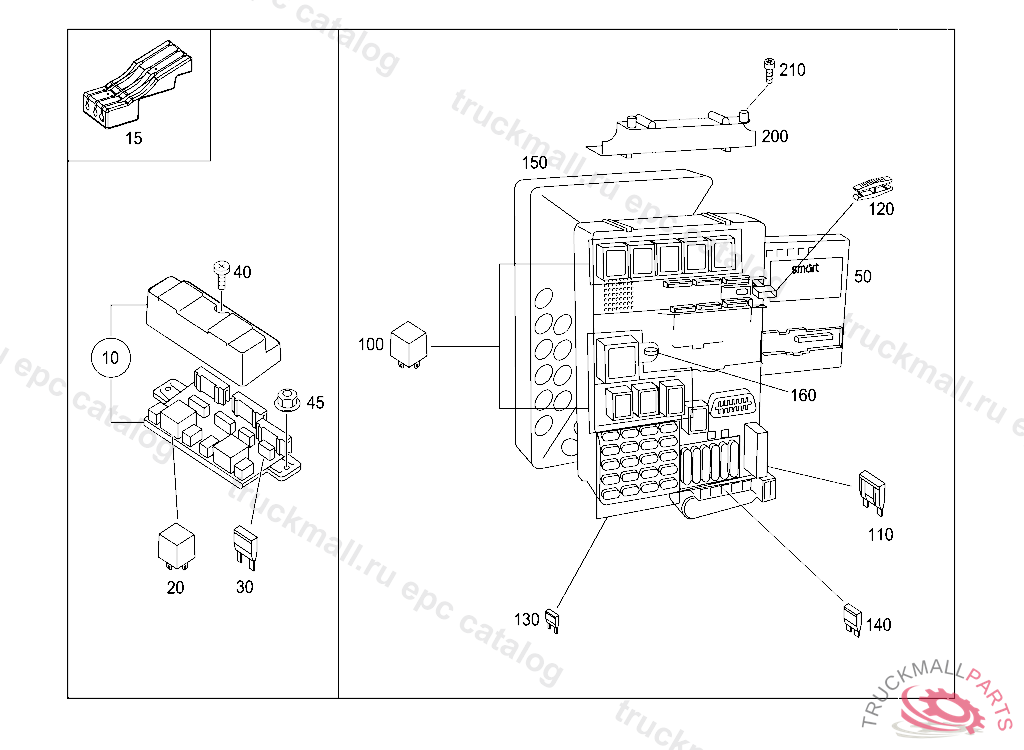

Поз.
Артикул
Описание
10
RELAY BOX AC
10
FUSE- A. RELAYBOX , CAUTION!COVER NOT INCLUDED IN SCOPE OF SUPPLY. PLEASE REUSE OLD COVER.
10
RELAY BOX AC , Replaced By: A4505450001
15
CABLE DUCT RELAY BOX AT RELAY BOX
20
RELAY CHANGER MICRO FOLDING TOP
20
CONTACTOR FUEL PUMP
20
RELAY N/O CONTACT MICRO BLINKER,LEFT AND RIGHT, H 10000419991115
30
ATO FUSE 15A15A
30
FUSE10A
40
SHEET METAL SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 00440320030120, Replaced By: Q0013412V000000000
45
NUT PLASTIC AT RELAY BOX
50
ELECTRICAL CENTER , H 10000419991112 H 99999820030102 J 00000020030102
100
N/O CONTACT MICRO TRUNK LID FUNCTION
100
RELAY CHANGER MICRO WIPER INTERMITTENT ACTION
100
RELAY CHANGER MICRO FOLDING TOP
100
SILENT RELAY FAN MOTOR
110
FUSE LINK MAXIMUM FUSE 50A
120
FUSE PULLER FUSES
130
MINI FUSE 15A15A
130
MINI FUSE 25A25A
130
MINI FUSE 7.5A7,5A
130
FUSE LINK10A,MINI
140
FUSE LINK20 A
140
ATO FUSE 15A15A
140
FUSE LINK30 A, Replaced By: N000000007654
140
ATO FUSE 40A40A
140
ATO FUSE 7.5A7,5A
150
CAGE CENTRAL ELECTRICAL SYSTEM
160
LOCKING PIN CENTRAL ELECT CENTRAL ELECTRICAL SYSTEM
200
HINGE MAIN UNIT CENTRAL ELECTRICAL SYSTEM
210
BOLT FASTENER, CENTER NOZZLE AT CENTER CONSOLE REINFORCEMENT
