Mercedes A4547200408 - РАМА

SMART FORFOUR 454.033

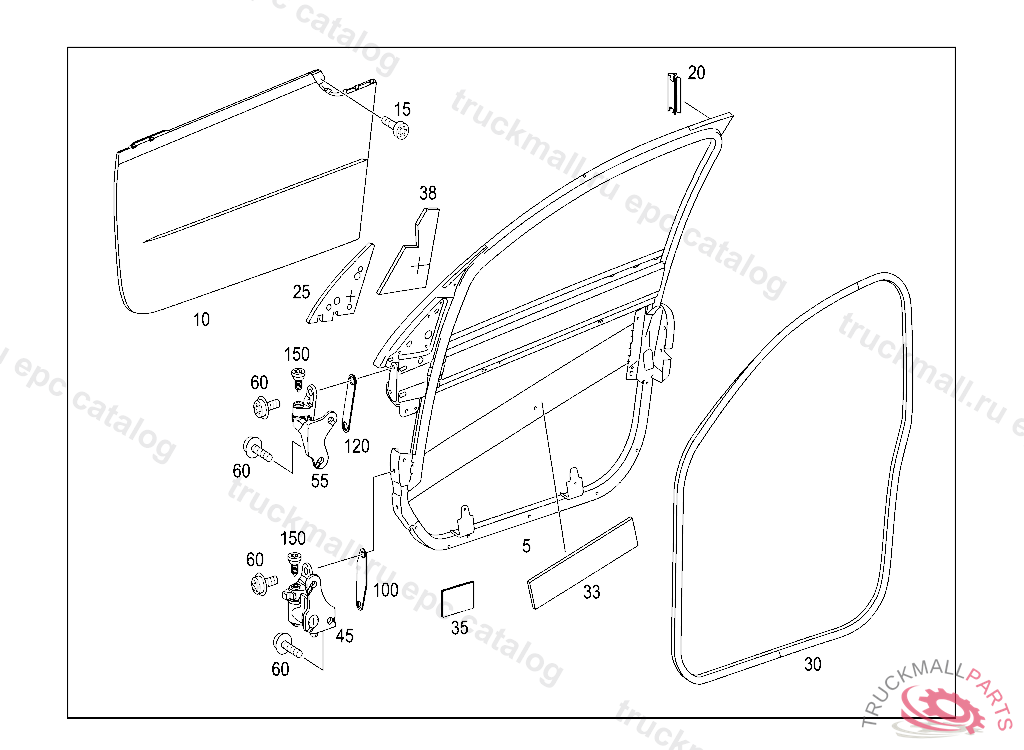

72 FRONT DOORS - 015 FRONT DOORS

Поз.
Артикул
Описание
5
A4547200408
FRAME RIGHT FRONT
5
A4547200308
FRAME LEFT FRONT
5
A4547200008
DOOR FRAME RIGHT FRONT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. B 10667320050627, Replaced By: A4547200408
5
A4547200108
DOOR FRAME LEFT FRONT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. B 10667320050627, Replaced By: A4547200308
10
A4547220009
PANELLING RIGHT
10
A4547220109
PANELLING LEFT
15
A0089906304
BOLT PANELLING, DOOR, LEFT
20
A0009919870
SPRING CLAMP RIGHT
25
A4547250026
ELASTOMER-MOLDED SEAL LEFT DOOR FRAME
25
A4547250126
ELASTOMER-MOLDED SEAL RIGHT DOOR FRAME
30
A4547200578
WEATHERSTRIP LEFT
33
A4547220642
DAMPING MATERIAL RIGHT
35
A4547270090
INSULATION LEFT
38
A4547270190
INSULATION LEFT
38
A4547270590
INSULATION RIGHT
45
A4547200337
HINGE BOTTOM LEFT
45
A4547200237
HINGE BOTTOM RIGHT
55
A4547200137
HINGE TOP LEFT
55
A4547200037
HINGE TOP RIGHT
60
N000000003816
HEXALOBULAR BOLT HINGES AT A-PILLAR, RIGHT 8X21/10.9
100
A4547230305
PAD LOWER HINGE 1.0 MM
120
A4547230005
PAD UPPER HINGE 1.0 MM
150
A0009905902
BOLT HINGE
