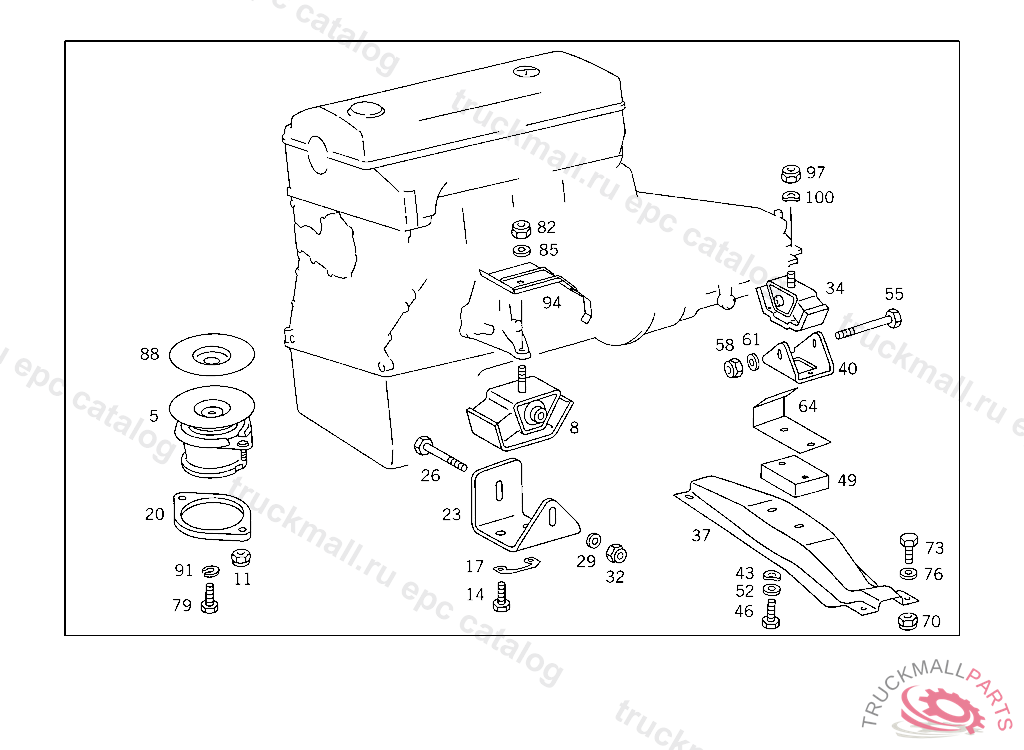

Поз.
Артикул
Описание
8
RUBBER MOUNTING ENGINE FRONT MOUNTING
8
RUBBER MOUNTING FRONT
11
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
11
NUT , Replaced By: N913004008001
14
SCREW ENGINE FRONT MOUNTING TO FRAME
17
SUPPORTING PLATE ENGINE FRONT MOUNTING TO FRAME
17
SUPPORTING PLATE , Replaced By: A4602410610
20
FLANGE RUBBER MOUNTING TO FRAME
23
BRACKET FRONT RUBBER MOUNTING
26
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
29
WASHER , Replaced By: N000125010532
29
WASHER RADIATOR TO RUBBER MOUNTING
32
HEXAGON NUT
32
NUT , Replaced By: N910113010002
34
RUBBER MOUNTING REAR
37
SUPPORT ENGINE REAR MOUNTING
40
BRACKET ENGINE REAR MOUNTING
43
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
43
SPRING WASHER , Replaced By: N000137008212
46
SCREW , Replaced By: N007984008003
46
SCREW BRACKET TO INTAKE MANIFOLD
52
WASHER EXHAUST MUFFLER TO STRAP
52
WASHER , Replaced By: N000125008443
55
SCREW REAR AXLE REGULATING SOLENOID VALVE
58
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
58
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
58
NUT , Replaced By: N913004008001
61
WASHER , Replaced By: N000125008443
61
WASHER EXHAUST MUFFLER TO STRAP
64
SCREENING PLATE ENGINE REAR MOUNTING
70
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
70
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
NUT , Replaced By: N913004008001
73
SCREW , Replaced By: N304017008021
73
SCREW PIPE CLAMP
76
WASHER , Replaced By: N000125008443
76
WASHER EXHAUST MUFFLER TO STRAP
79
SCREW VIBRATION ABSORBER TO BRACKET
88
WASHER ENGINE TO RUBBER MOUNTING
91
LOCK WASHER FITTING TO BRACKET
94
SCREENING PLATE , Replaced By: A4602400045, +001A1029900201
94
PROTECTIVE PLATE
97
NUT PLATFORM MOUNTING
100
SPRING WASHER CAB FLOOR
100
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
