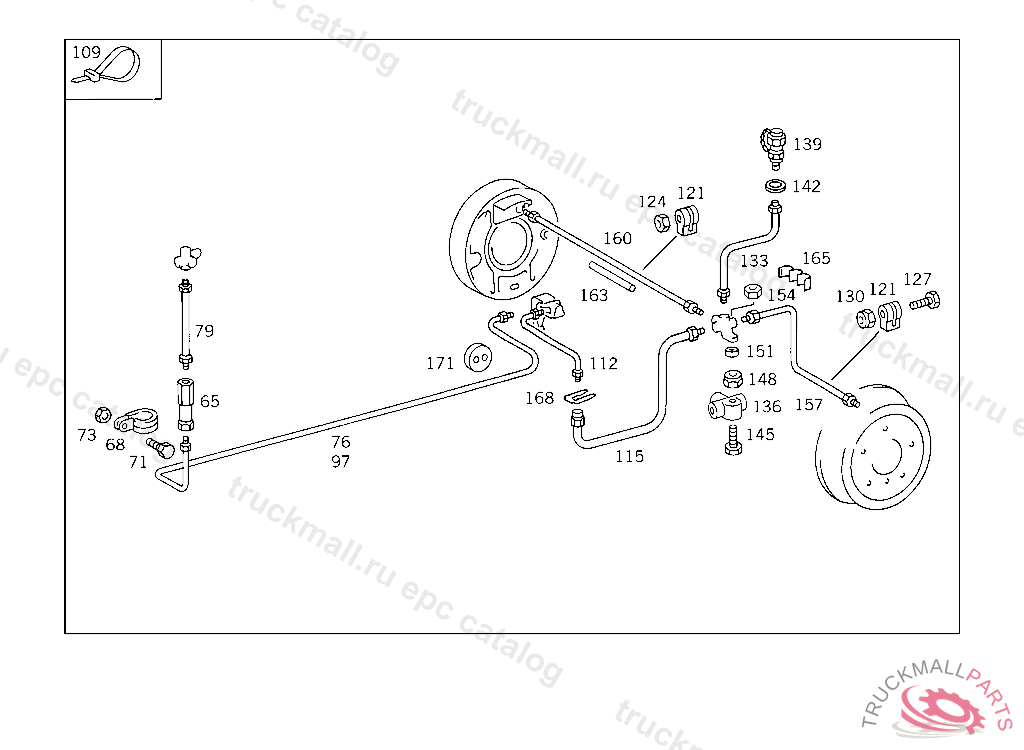

Поз.
Артикул
Описание
65
VALVE , Replaced By: A1214290134
68
CLAMP HOSE TO FLANGE AND TO VALVE
71
SCREW PUMP TO BRACKET
71
SCREW , Replaced By: N304017006016
73
NUT , Replaced By: N913002006009
73
NUT OIL TANK TO BRACKET
73
NUT BALL PIVOT TO LEVER
76
LINE FROM PRESSURE RETAINING VALVE TO RIGHT REAR BRAKE HOSE 3090 MM,P 136599
79
LINE
79
LINE FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE, FROM CHASSIS: 005,007,008,015,017 154396 011 022325 060 018681 062 013421
79
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
79
LINE TO RIGHT FRONT WHEEL, 000,001,010 UP TO CHASSIS 107476,100,101,110 UP TO CHASSIS 179099
97
LINE FROM PRESSURE RETAINING VALVE TO RIGHT REAR BRAKE HOSE 3090 MM,P 136599
109
LOOM TIE LINE MOUNTING 280 MM
112
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
115
BRAKE HOSE10X450 MM
121
CLAMP BRAKE LINE TO SIDE MEMBER
124
NUT BALL PIVOT TO LEVER
127
SCREW LICENSE PLATE TO BRACKET
127
SCREW , Replaced By: N304017006020
130
NUT , Replaced By: N913004006001
130
NUT PUMP TO BRACKET
139
TEST CONNECTION , Replaced By: A0004318731
139
TEST CONNECTION AT DISTRIBUTOR
151
SPRING WASHER , Replaced By: N000137008212
151
SPACER RING
154
NUT , Replaced By: A0009903250
154
NUT POWER CYLINDER TO BRACKET
157
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
160
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039532 TO BE ADAPTED DURING ASSEMBLY
160
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039531
163
HOSE BELL HOUSING BREATHING, ORDER BY THE METER
165
BRACKET FROM MASTER CYLINDER TO DISTRIBUTOR,028191
165
BRACKET AT SIDE MEMBER
168
BRACKET BRAKE HOSE TO BRACKET
171
DISC BRAKE LINE MOUNTING,055306
