Поз.
Артикул
Описание

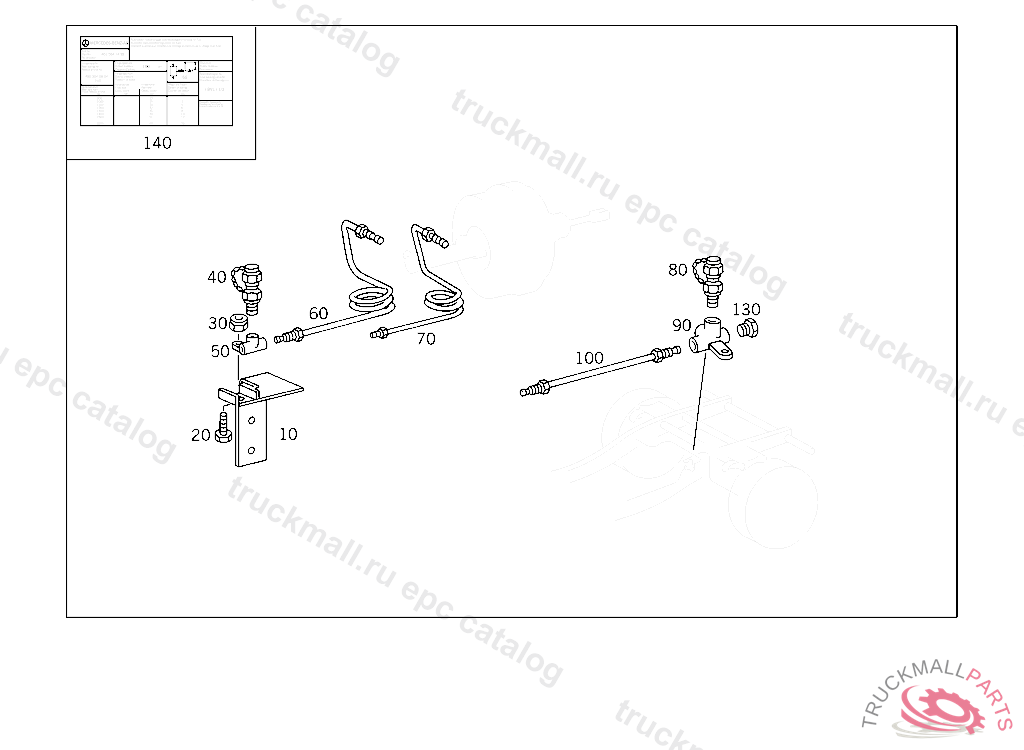

10
BRACKET FRONT TEST CONNECTION, 029789 900767
20
SCREW , Replaced By: N304017006016
20
SCREW PUMP TO BRACKET
30
NUT , Replaced By: N913004006001
30
NUT PUMP TO BRACKET
40
TEST CONNECTION AT DISTRIBUTOR
40
TEST CONNECTION , Replaced By: A0004318731
50
DISTRIBUTOR , Replaced By: A0004284224
60
LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
70
LINE FROM HEIGHT CONTROL VALVE TO LEFT SPRING-LOAD ACCUMULATOR
80
TEST CONNECTION AT DISTRIBUTOR
80
TEST CONNECTION , Replaced By: A0004318731
90
DISTRIBUTOR
100
LINE FROM PRESSURE RETAINING VALVE TO BRAKE POWER REGULATOR 230 MM
130
SCREW PLUG
140
GUMMED LABEL AUTOMATIC LOAD-DEPENDING BRAKE 2300 KG
999
BRAKE CABLE
999
BRAKE CABLE
999
LINE , Replaced By: A1234207328
999
LINE
999
LINE
