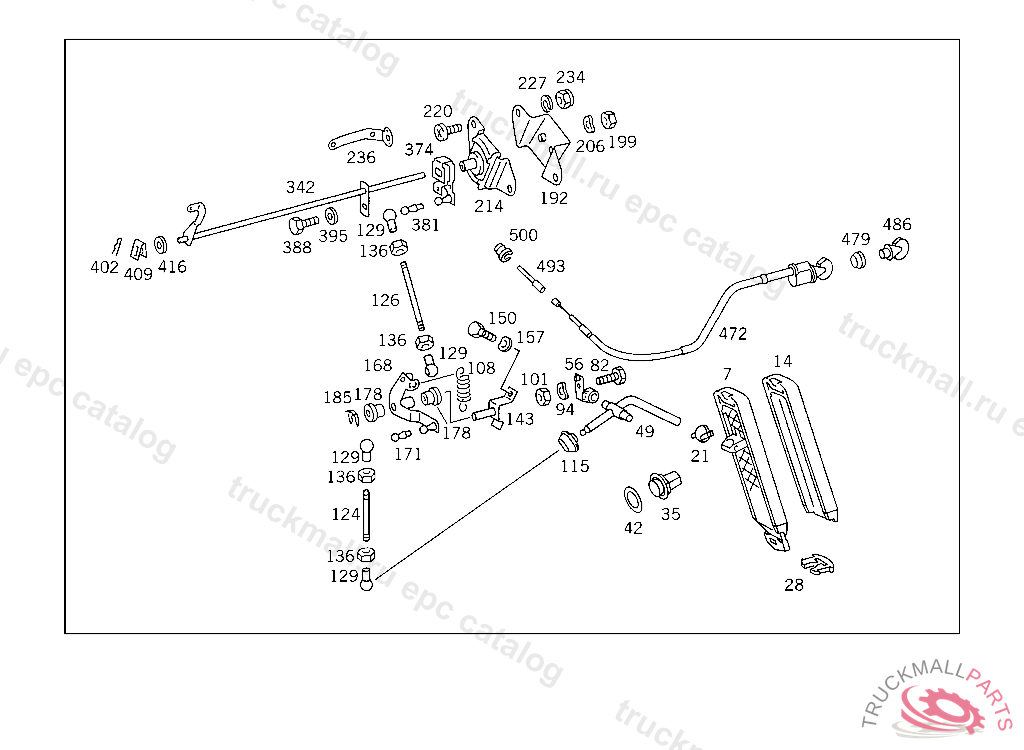

Mercedes A4609930010 - Пружина

240 GD 460.331

30 CONTROL - 015 CONTROL IL. 1

Поз.
Артикул
Описание
7
A1233000204
ACCELERATOR PEDAL
14
A1233010082
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
21
A1233010022
JOINT ,B 859430
28
A1249888678
CLIP
35
A1153010241
STOP
42
A1159970640
SEAL RING KICK-DOWN SWITCH
49
A4603000725
LEVER
56
A1233010118
BEARING
82
N000933006102
SCREW COVER PLATE TO BRACKET
82
N000933006127
SCREW CAB FLOOR COVERING M 6X25
94
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
101
N000934006007
NUT BALL PIVOT TO LEVER
108
A4609930010
SPRING LEVER,823342
115
A1233010497
BOOT ACCELERATOR PEDAL TO FIRE WALL, 026 079273 ALSO INSTALLED ON 078726,078728,078730,078733,078735,078739,078741-078745,078749-078754,078756-078758,078760-078770, 078773,078774,078776,078777,078779,078784,078787-078797,078799-078801,078804,078806,078808-078811, 078813-078823,078825-078834,078836-078852,078854,078855,078857-078860,078969-078975,078978-079018, 079020-079069,079072,079074-079093,079095,079097,079098,079100-079105,079107-079115,079117-079119, 079121-079129,079131-079144,079147-079166,079168-079208,079210-079246,079249-079271. 028 079247 ALSO INSTALLED ON 079167
115
A1233010297
BOOT , Replaced By: A1233010497
124
A4603011115
ROD FROM ACCELERATOR PEDAL TO SHAFT
126
A4603011215
ROD FROM ACCELERATOR PEDAL TO SHAFT
129
A0009918922
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
129
A0009930461
CONICAL CUPTO 102 070 09 75
136
N000934005008
NUT TACHOGRAPH TO BRACKET
143
A4603000136
BEARING BRACKET
150
N000933006207
SCREW BRACKET ON LOAD SENSOR
150
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
157
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
168
A4603001028
LEVER BEARING BRACKET TO FIRE WALL
168
A4603000028
LEVER
171
N071803008202
BALL PIVOT , UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
178
A1102910750
BUSHING
185
N912001008000
LOCK HOSE FASTENING
192
A4603000140
BRACKET
199
N000934006007
NUT BALL PIVOT TO LEVER
206
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
214
A1233000040
BRACKET
214
A4603000240
BRACKET MOUNTING
220
N007985005504
SCREW CONTROL UNIT TO CAB
227
N912004005103
LOCK WASHER BRACKET TO STEERING COLUMN END
234
N000934005008
NUT TACHOGRAPH TO BRACKET
342
A4603001420
SHAFT CONTROL
342
A4603000620
SHAFT
374
A1233001925
LEVER
381
N071803008204
BALL PIVOT
388
N000561006115
SCREW CONTROL LEVER TO CONTROL SHAFT
395
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
395
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
402
A1233010273
LOCK LEVER TO ADJUSTER LINK
409
A1233010140
BRACKET
416
A1093010051
SPACER RING CONTROL SHAFT TO ENGINE
472
A4603000032
WIRE CABLE IDLING ADJUSTMENT
479
A1105450272
NUT
486
A1105451137
BUTTON. KNOB
493
A1233020209
SLEEVE
500
A1163020150
BUSHING IDLING ADJUSTMENT WIRE CABLE
