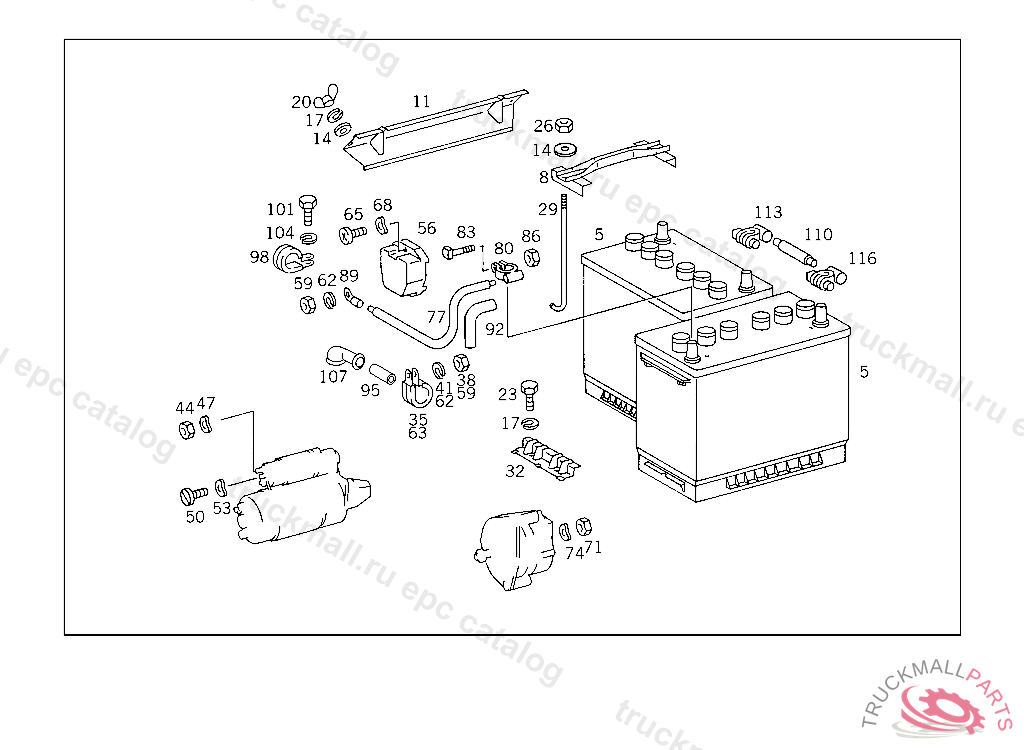

Поз.
Артикул
Описание
5
BATTERY
8
BRACKET
11
BRACKET
14
WASHER COMPRESSED AIR LINE TO BRACKET
14
WASHER , Replaced By: N009021006208
17
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
20
NUT BATTERY MOUNTING
23
SCREW COVER PLATE TO COVER PLATE M 6 X 12
26
NUT BALL PIVOT TO LEVER
29
HOOK
32
BRACKET
35
CLAMP WIRE CABLE TO SIDE MEMBER AND TO TRANSMISSION
38
NUT BALL PIVOT TO LEVER
41
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
44
NUT
47
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
47
SPRING WASHER , Replaced By: N000137008212
50
SCREW ,374026
50
SCREW CABLE TO STARTING MOTOR,TERMINAL 16
53
SPRING WASHER ALTERNATOR CONNECTION D+
53
SPRING WASHER ALTERNATOR CONNECTION D+
56
CABLE CONNECTOR SIDE MEMBER,RIGHT
59
NUT
62
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
63
CLAMP BRAKE HOSE BRACKET
65
SCREW REFLECTOR TO BRACKET
65
SCREW JUNCTION BOX TO BRACKET
68
SPRING WASHER ALTERNATOR CONNECTION D+
71
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
71
NUT BALL PIVOT TO LEVER
74
SPRING WASHER ALTERNATOR CONNECTION W
74
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
77
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
77
POS.CABLE , Replaced By: N922004035202, +001N040621018200, +001N046234008004, +001N072332009100
80
SOLDERING TERMINAL FROM BATTERY TO STARTING MOTOR,D 001717
83
SCREW CLAMPING PIECE
86
NUT
89
CABLE SHOE NEG. CABLE
92
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
95
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
98
CLAMP LINE MOUNTING
101
SCREW COVER PLATE TO BRACKET
104
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
107
BOOT BATTERY MASTER SWITCH
110
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
113
SOLDERING TERMINAL FROM BATTERY TO STARTING MOTOR,D 001717
116
SOLDERING TERMINAL BATTERY CABLE
999
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR
