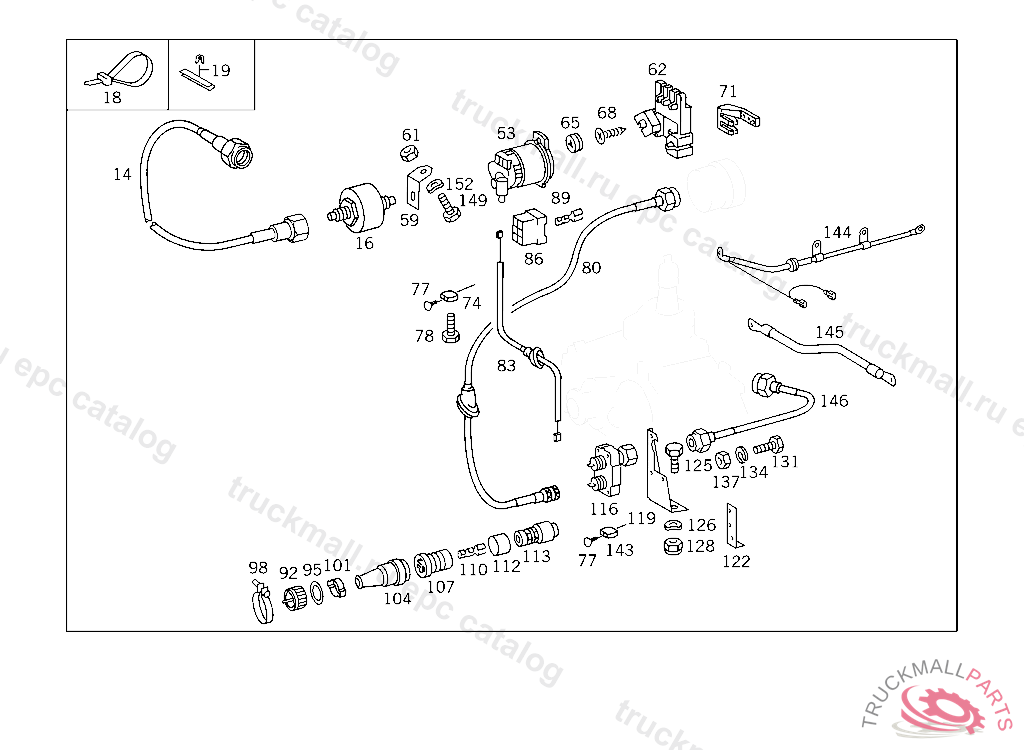

Поз.
Артикул
Описание
14
FLEXIBLE SHAFT
14
FLEXIBLE SHAFT SPEEDOMETER DRIVE
16
SWITCH,AUTOMATIC SPEED WARNING
18
LOOM TIE
18
LOOM TIE LINE MOUNTING 280 MM
19
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
53
TACHOGRAPH
59
BRACKET TACHOGRAPH TO CENTRAL CONSOLE
61
NUT , Replaced By: N000934005008
62
PROTECTIVE PLATE TACHOGRAPH, FROM IDENT NO. K 074703ALSO INSTALLED ON K 062141
65
BLIND CAP TACHOGRAPH LEAD SEALING
68
SHEET METAL SCREW SETSCREW LEAD-SEALING IN TACHOGRAPH
78
SCREW LEAD SEALING M 6X30
80
FLEXIBLE SHAFT BETWEEN ADAPTER GEARING AND SPEEDOMETER
83
ELECTRIC CABLE FROM TACHOGRAPH TO PULSE TRANSMITTER
86
PIN BUSHING HOUSING 4-POLE
89
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
89
PIN BUSHING , Replaced By: A0075458226
92
NUT
95
WASHER
98
LOOM TIE LINE MOUNTING 280 MM
98
LOOM TIE , Replaced By: A0019978390
101
CLIP
104
BOOT SPEEDOMETER SENDER UNIT BRANCH-OFF
107
COVERTO 009 545 54 28
110
PIN BUSHING , Replaced By: A0075458226
110
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
112
BUSHING2.5 MM2
113
SENDER UNIT LIMIT SENDER UNIT
116
ADAPTER
119
BRACKET
122
BRACKET
125
SCREW , Replaced By: N304017008016
125
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
126
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
126
SPRING WASHER BRAKE SHOE WITH LINING
126
SPRING WASHER , Replaced By: N000137008212
128
NUT , Replaced By: N913004008001
128
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
131
SCREW PUMP TO BRACKET
134
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
137
NUT BALL PIVOT TO LEVER
143
LEAD SEAL ROCKER SWITCH, Replaced By: A0009883070
143
LEAD SEAL ROCKER SWITCH
144
GROUND STRAP BODY 24 V
145
NEG. CABLE FROM SIDE MEMBER TO ENGINE
145
NEG. CABLE , Replaced By: A1165400531
146
FLEXIBLE SHAFT BETWEEN TRANSFER CASE AND ADAPTER GEARING
149
SCREW LEVER TO SHAFT
149
SCREW , Replaced By: N304017005002
152
SPRING WASHER ALTERNATOR CONNECTION D+
999
BRACKET TACHOGRAPH TO CENTRAL CONSOLE, NOT USED
999
BRACKET TACHOGRAPH TO CENTRAL CONSOLE
