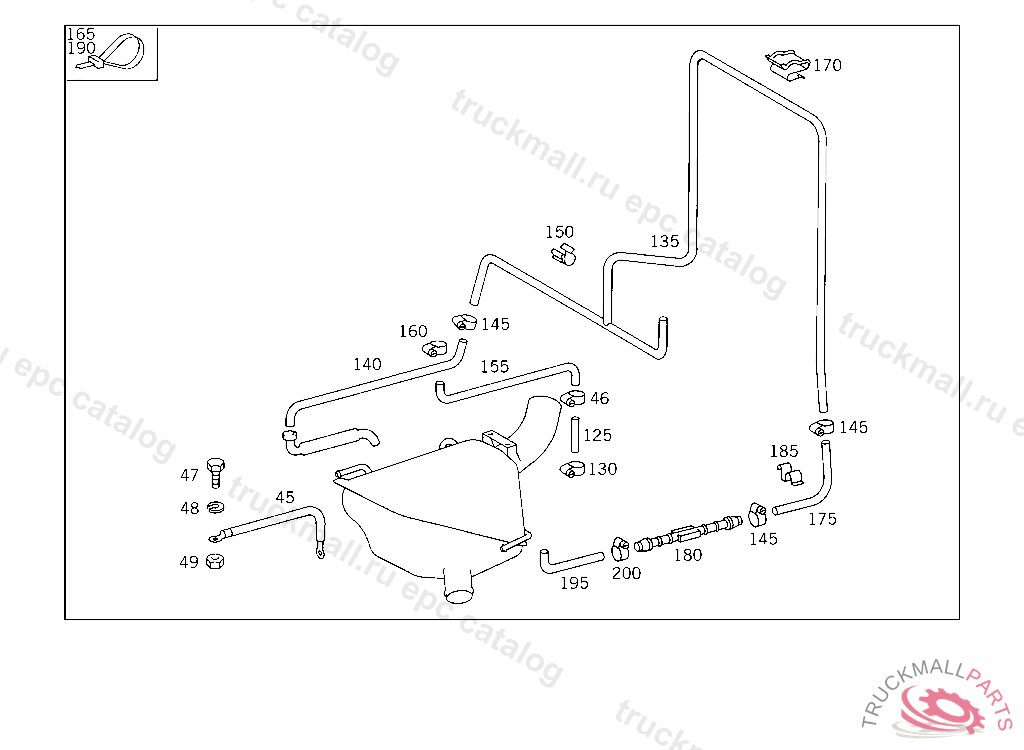

Поз.
Артикул
Описание
45
GROUND STRAP FROM ENGINE HOOD TO COWL
45
GROUND STRAP , Replaced By: A3305400241
46
CLAMP LINE MOUNTING SA 088202/01
46
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
47
SCREW LEVER TO SHAFT
47
SCREW BRACKET TO TAIL LAMP BRACKET
47
SCREW , Replaced By: N304017005002
48
LOCK WASHER BRACKET TO STEERING COLUMN END
49
NUT TACHOGRAPH TO BRACKET
125
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
130
HOSE CLAMP LINE MOUNTING
130
CLAMP , Replaced By: A0059970190
135
BREATHER ADDITIONAL FUEL TANK
140
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
145
HOSE CLAMP LINE MOUNTING
145
CLAMP , Replaced By: A0059970190
145
CLAMP , Replaced By: N000000000665
145
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
150
CLIP
150
BRACKET FUEL TANK BREATHING
155
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
160
HOSE CLAMP LINE MOUNTING
160
CLAMP , Replaced By: A0059970190
165
LOOM TIE , Replaced By: A0019978390
165
LOOM TIE LINE MOUNTING 280 MM
170
CLIP CABLE HARNESS TO ROOF RAIL
175
HOSE FUEL HOSE TO FUEL PUMP 120 MM, ORDER BY THE METER
175
HOSE LEAK LINE, ORDER BY THE METER
175
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
180
CONNECTOR BREATHER LINE
185
CLIP
185
CLIP , Replaced By: A0119887678
190
CLAMP LINE CONNECTION
190
HOSE CLAMP HOSE FASTENING 9/13MM
190
CLAMP LINE CONNECTION
195
HOSE FROM BREATHER VALVE TO BREATHER PIPE
195
HOSE (VENT VALVE), 055662 903941
195
HOSE (VENT VALVE)
200
CLAMP LINE CONNECTION
999
SEAL RING SPEEDOMETER DRIVE
999
SCREW FILLER CAP
999
FILLER NECK
999
FUEL TANK PARTS KIT, CONVERSION TO PLASTIC FUEL TANK POSSIBLE WITH MANUFACTURER'S CONFIRMATION
999
FUEL TANK PARTS KIT, CONVERSION TO PLASTIC FUEL TANK POSSIBLE WITH MANUFACTURER'S CONFIRMATION ORDER ADDITIONALLY: A 463 476 24 26
999
HOSE BETWEEN T-FITTING AND BREATHER VALVE
999
PROTECTIVE PLATE AT TANK, 059607(WHC: WDB) 904078(WHC: VAG)
999
FILLER NECK
999
FUEL TANK , Replaced By: A4604701201
999
BREATHER
999
FUEL FILLER CAP. FILLER CAP LESS BREATHING, LESS KEYS, LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
999
FILLER NECK
999
STRAP , Replaced By: A4634700340
999
FUEL TANK REAR RIGHT 15 L,008340
999
FUEL TANK , Replaced By: A4604700701
999
HOUSING
999
FUEL TANK
999
FUEL TANK BRACKET TO FRAME
999
FUEL STRAINER
999
DAMPING STRIP40.5X18X18 MM
999
HOSE FROM RETURN LINE TO FUEL TANK, 059608(WHC: WDB) 904079(WHC: VAG)
999
CONNECTOR FROM FUEL TANK TO FUEL TANK,008339
999
INTERMEDIATE PIECE FUEL TANK BREATHING,008339
