Mercedes N304017008021 - АВТОЗАПЧАСТЬ

G 270 CDI 461.332 TO CHASSIS 144790

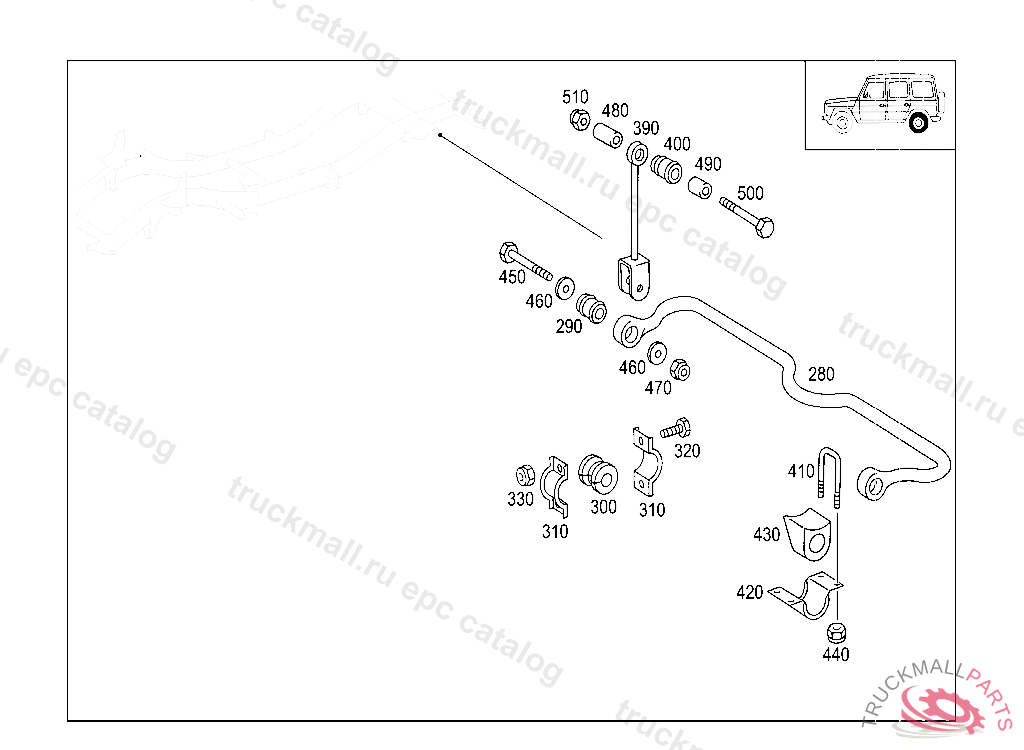

32 SPRINGS AND SUSPENSION - 165 TORSION BAR,REAR

Поз.
Артикул
Описание
280
A4633260065
TORSION BAR REAR
290
A3093200073
BEARING TORSION BAR BEARING
300
A1293230185
RUBBER MOUNTING TORSION BAR TO FRAME
310
A1243231140
BRACKET
320
N304017008021
SCREW PIPE CLAMP
330
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
390
A4613200032
LINK REAR
400
A3093200073
BEARING TORSION BAR BEARING
410
A4603230126
CLAMP
420
A4623230040
BRACKET FRONT STABILIZER
430
A4603230185
RUBBER MOUNTING TORSION BAR
440
N910113010000
NUT STRAP TO BRACKET
450
N000931012051
SCREW MOUNTING PLATE TO SUBSTRUCTURE M 12X40, FIXTURE A/C COMPRESSOR MAKE KONVEKTA
460
A4603170076
WASHER
470
N913002012004
NUT END PIECE TO EXHAUST PIPE
480
A4633260050
BUSHING LINK TO CONSOLE
490
A4633260150
BUSHING LINK TO CONSOLE
500
N000931012175
SCREW SPRING CLAMP,5 533057
510
N913002012004
NUT END PIECE TO EXHAUST PIPE
