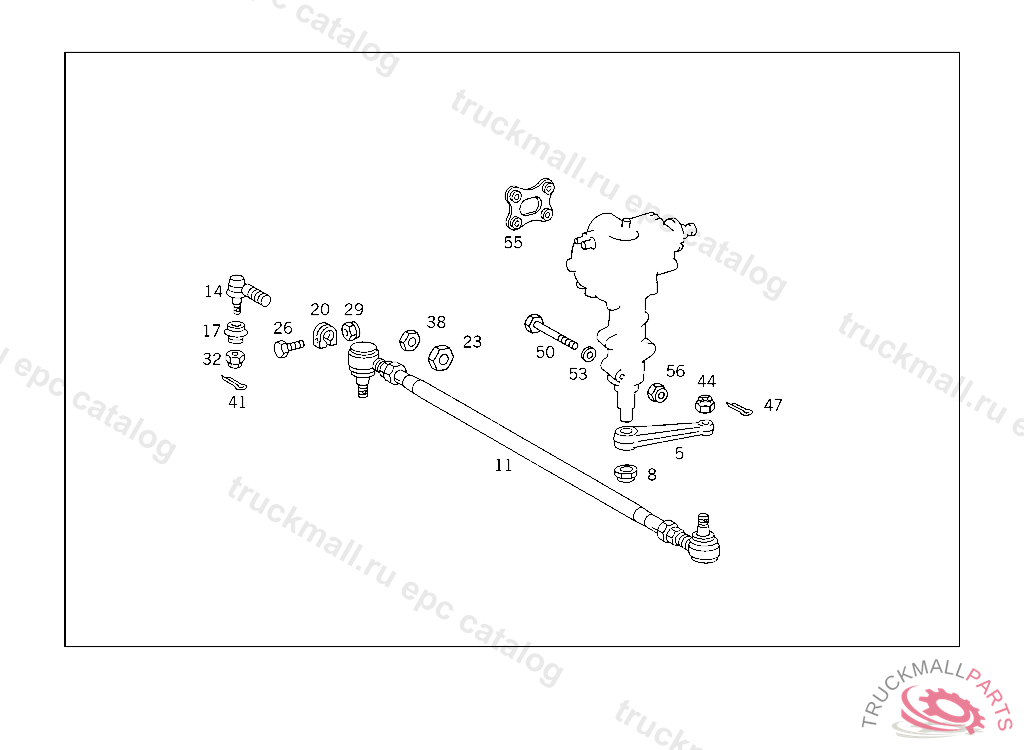

Поз.
Артикул
Описание
5
PITMAN ARM ,007239
5
PITMAN ARM ,007239
8
NUT DRAG LINK TO LEVER
11
DRAG LINK
11
DRAG LINK
11
DRAG LINK
11
DRAG LINK
11
DRAG LINK
14
JOINTTO 463 463 03 15,463 463 06 15
14
BALL JOINTTO 463 463 04 15
14
BALL JOINTTO 463 463 00 15,463 463 04 15
14
DRAG LINK ENDTO 463 463 04 15, Replaced By: A0024601648
14
DRAG LINK ENDTO 463 460 01 05,02 05,463 463 04 15, Replaced By: A0024601948
17
BOOTLEMFOERDER
17
BOOT
20
CLAMP
20
CLAMP BALL JOINT TO TIE ROD
20
CLAMPTO 463 463 03 15,463 463 06 15
23
CLAMPING PIECETO 463 460 01 05,463 460 02 05
26
SCREW
29
HEXAGON NUT
29
NUT , Replaced By: N913004010010
29
NUT , Replaced By: N910113010002
32
NUT , Replaced By: N000979016008
32
NUT LEVER
41
COTTER PINROCKINGER TYP 260 G140
44
NUT SHOCK ABSORBER TO CROSS MEMBER
47
COTTER PIN STRAP TO SUPPORT
50
SCREW STEERING TO FRAME M 12X1.5X155
53
WASHER
56
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
56
NUT , Replaced By: N910113012003
