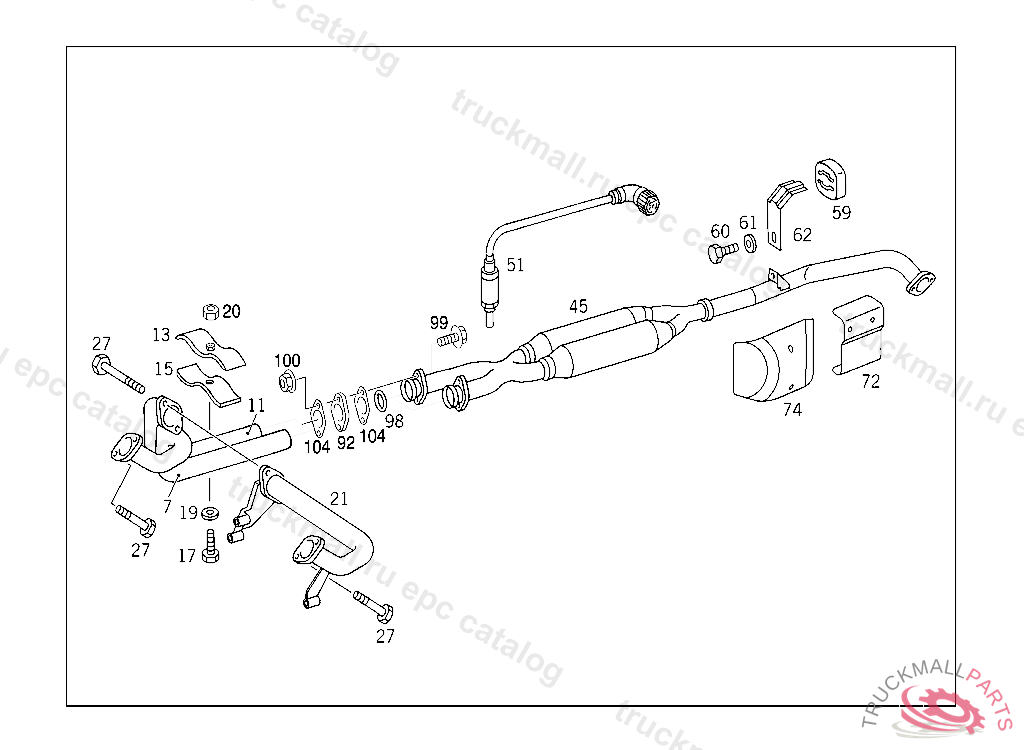

Поз.
Артикул
Описание
7
EXHAUST PIPE FRONT LEFT
11
EXHAUST PIPE FRONT RIGHT
13
CLAMP ABOVE FLEX HOSE ACHSABSTAND 74 MM
13
CLAMP , Replaced By: A4634920040, +001N910113008002
15
CLAMP , Replaced By: A4634920140, +001N910113008002
15
CLAMP UNDERNEATH FLEX HOSE ACHSABSTAND 70 MM
17
SCREW VALVE TO BRACKET M 8X55
19
WASHER EXHAUST MUFFLER TO STRAP
20
HEXAGON NUT. NUT BRACKET TO FRAME
21
EXHAUST MANIFOLD
27
BOLT W FLANGE FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
27
SCREW 3/2-WAY VALVE TO BRACKET
45
CATALYST
51
SENDER UNIT LEFT,A 132402
59
DAMPING PAD PARTICLE FILTER
60
SCREW CLAMP TO BRACKET AND TO PIPE
60
SCREW IGNITION COIL TO BRACKET
61
WASHER , Replaced By: N000125008443
61
WASHER EXHAUST MUFFLER TO STRAP
62
BRACKET EXHAUST PIPE FRONT RIGHT ON FRAME
62
BRACKET RIGHT REAR EXHAUST PIPE
62
BRACKET REAR EXHAUST PIPE TO DAMPING PAD,5 193595
72
PROTECTIVE PLATE CATALYST
74
PROTECTIVE PLATE SHIELDING TO BEARING BRACKET, TO BE ADAPTED DURING ASSEMBLY
92
FLANGE FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE
98
SEAL RING , Replaced By: A1269970141
99
BOLT W FLANGE FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
100
HEXAGON NUT SCREENING PLATE,5 163561
999
BRACKET , NOT USED
