Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 55 AMG
›
463.246 FROM CHASSIS 144226
›

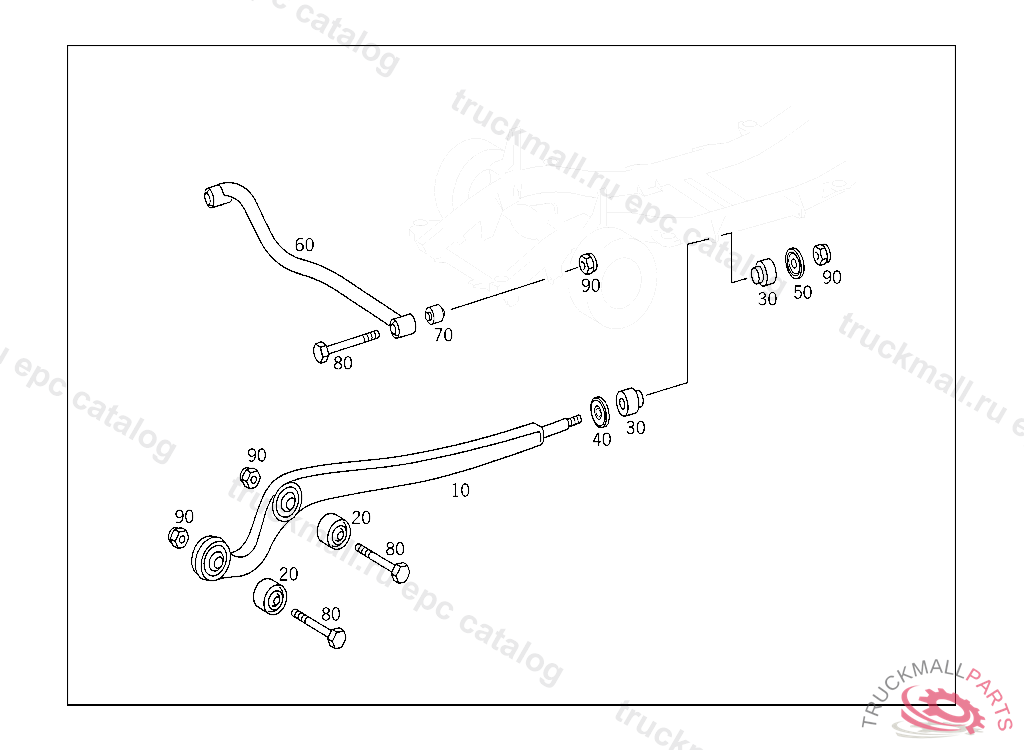

33 FRONT AXLE
›
105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
Mercedes A4603300111 - РЫЧАГ
G 55 AMG 463.246 FROM CHASSIS 144226
33 FRONT AXLE - 105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
Поз.
Артикул
Описание
10
A4603300111
THRUST ARM FRONT AXLE
20
A4603330314
BEARING
30
A4613520565
CONTROL ARM SUSPENSION THRUST ROD TO FRAME
30
A4603520465
RUBBER MOUNTING THRUST ROD TO FRAME
40
A4603520276
WASHER THRUST ROD TO FRAME
50
A4603520476
WASHER LONGITUDINAL CONTROL ARM TO FRAME
60
A4633300707
TRANSVERSE CONTROL ARM FRONT AXLE
70
A4603520565
RUBBER MOUNTING , 034856 901180
80
N910105016006
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
80
N000960016105
SCREW RUBBER MOUNTING TO SUPPORTING ARM M16X80,5 566418
90
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
90
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
