Поз.
Артикул
Описание

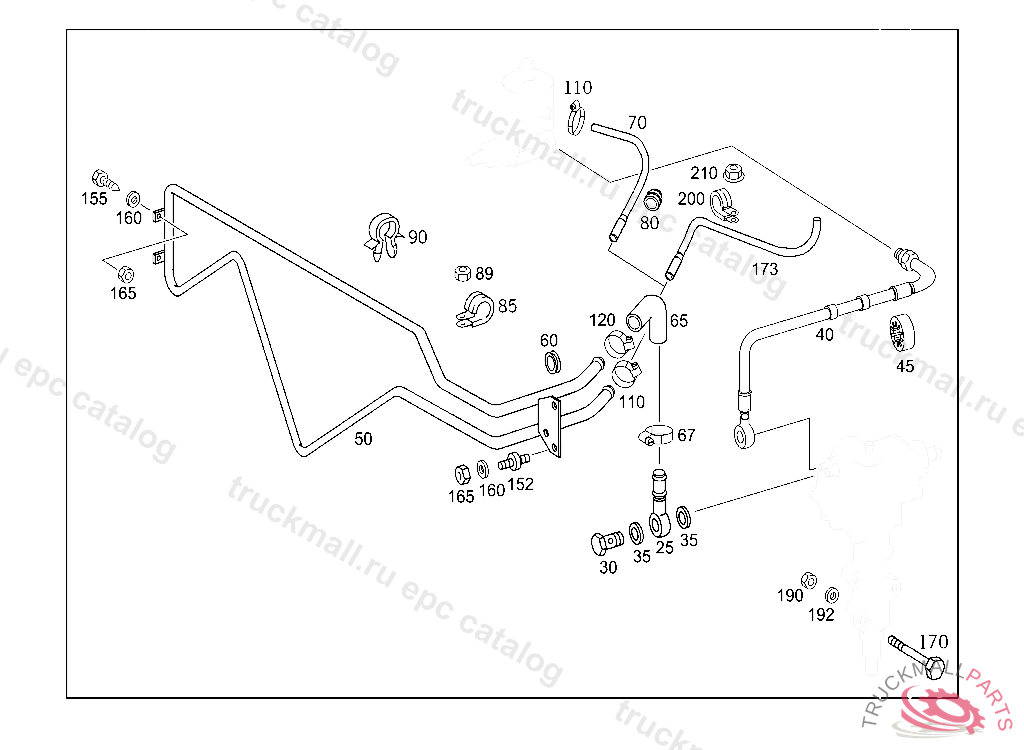

25
LINE COOLING LINE
30
SCREW. BANJO BOLT AIR RESERVOIR,CONNECTION: "33",4 872664
35
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
40
HOSE DELIVERY LINE
40
HIGH-PRS. EXPANSION HOSE FROM POWER STEERING PUMP TO STEERING, X 18800720101222
45
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
50
LINE COOLING LINE, X 16755220060929
50
LINE COOLING LINE
60
GROMMET RIGHT FRONT SIDE MEMBER, A 438645 F 419551
65
HOSE FROM STEERING GEAR ON COOLING LINE
67
CLAMP
70
HOSE FROM COOLING LINE TO POWER STEERING PUMP, X 16755120060929
85
CLAMP CABLE HARNESS MOUNTING
89
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
90
CLAMP22.2 MM
110
HOSE CLAMP LINE MOUNTING
120
CLAMP
155
SCREW PUMP TO BRACKET M 6X20
155
SCREW PUMP TO BRACKET
160
WASHER COMPRESSED AIR LINE TO BRACKET
160
WASHER COMPRESSED AIR LINE TO BRACKET
160
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
165
NUT SPRING-LOADED PUSH ROD
165
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
170
HEXAGON HEAD BOLT STEERING TO FRAME M12X160, 20131220
170
HEXAGON HEAD BOLT. SCREW CONSOLE TO ENGINE CROSS MEMBER
170
HEXAGON HEAD BOLT STEERING TO FRAME M12X1.5X240
170
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
190
HEXAGON NUT CONSOLE TO REAR CROSS MEMBER
192
WASHER
192
WASHER
200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
210
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
