Поз.
Артикул
Описание

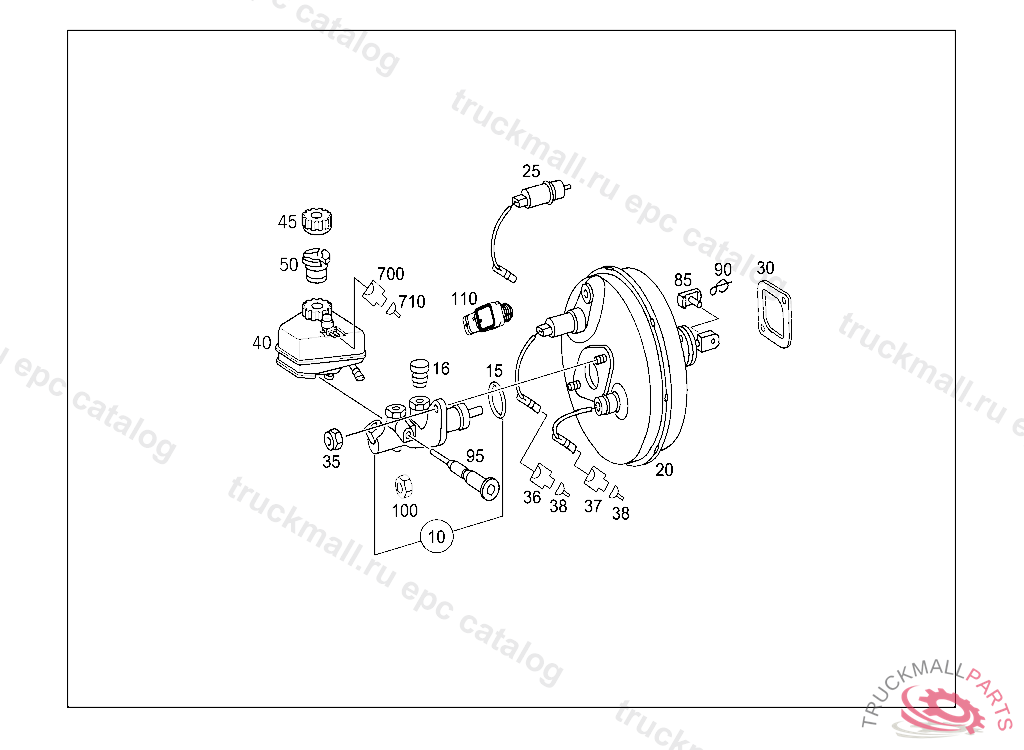

10
MASTER BRAKE CYLINDER
10
TS MASTER BRAKE CYLINDER , A 03833220050630806, Replaced By: A0064301701
10
BRAKE MASTER CYLINDER
15
CIRCUMFERENTIAL GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
15
SEAL RING
16
BUSHING
20
BRAKE BOOSTER
20
BRAKE BOOSTER
20
BRAKE BOOSTER ASSEMBLY PARTS KIT,F 187941 EXEPT FOR VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM F 187942 WITH CODE 809
25
SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS
30
GASKET BRAKE BOOSTER TO BEARING BRACKET
30
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
35
NUT MASTER BRAKE CYLINDER AT BRAKE BOOSTER
36
CLUTCH. PIN BUSHING HOUSING SIREN
37
CLUTCH. PIN BUSHING HOUSING RADAR SENSOR 6 PIN, CODE B,TO A0004460449
38
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
38
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
38
GASKET YELLOW 0.2-0.5MM2,126373
40
RESERVOIR , A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057 ORDER WHEN USING CASE OR STRAINER
40
TS EXPANSION RESERVOIR
45
COVER
50
STRAINER BRAKE FLUID RESERVOIR
50
STRAINER
85
PIN BRAKE PEDAL TO BRAKE BOOSTER, B 843549
85
PEDAL HINGE PIN BRAKE BOOSTER ASSEMBLY TO PEDAL, X 19620920111222
90
COTTER PIN LEVER TO ROD
90
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
95
TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564
100
NUT MASTER BRAKE CYLINDER AT BRAKE BOOSTER
110
PRESSURE SENSOR VACUUM SENSOR IN BRAKE UNIT
700
PIN BUSHING HOUSING BIPOLAR
710
ROUND PIN BUSHING4 MM2
