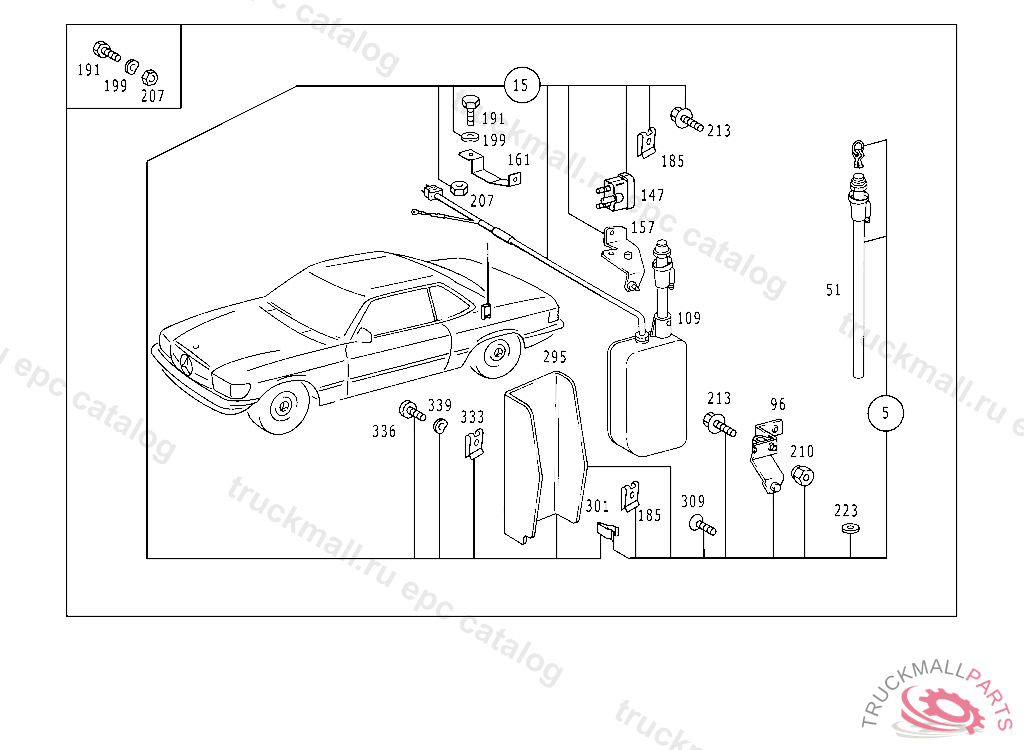

Поз.
Артикул
Описание
5
ANTENNA
15
ANTENNA , LESS BASE ANTENNA
51
ANTENNA MECHANICAL
51
MECHANICAL MECHANICAL
51
PART NAME MISSING MECHANICAL ANTENNA, 107.042 017640 045 029280 046 003551 123.A 001878
51
MECHANICAL ANTENNA MECHANICAL ANTENNA
96
BRACKET ANTENNA
109
ANTENNA , BASE ANTENNA
109
AUTOMATIC ANTENNA AUTOMATIC ANTENNA
147
PLUG HOUSING DOUBLE
157
BRACKET ANTENNA
161
BRACKET ANTENNA, 107.042 017640 045 029280 046 003551 123.A 001878
185
LOCK
191
SCREW COVER PLATE TO BRACKET
191
SCREW LEVER TO SHAFT
199
SPRING WASHER LICENSE PLATE TO BRACKET
207
NUT BALL PIVOT TO LEVER
210
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
213
COMBINATION BOLT
213
COMBINATION BOLT BRACKET TO WHELHOUSE FLANGE
223
SEAL BETWEEN ANTENNA AND FENDER
223
SEAL UNDER ANTENNA CONNECTOR, 107.042 017639 045 029279 046 003550 123.A 001877
223
SEAL BETWEEN ANTENNA AND FENDER, 107.042 017640 045 029280 046 003551 123.A 001878
295
COVERING
301
SPRING
309
SCREW
333
NUT RETAINER GROUND CABLE TO REAR PILLAR
336
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
339
LOCK WASHER T-FITTING TO BRACKET
