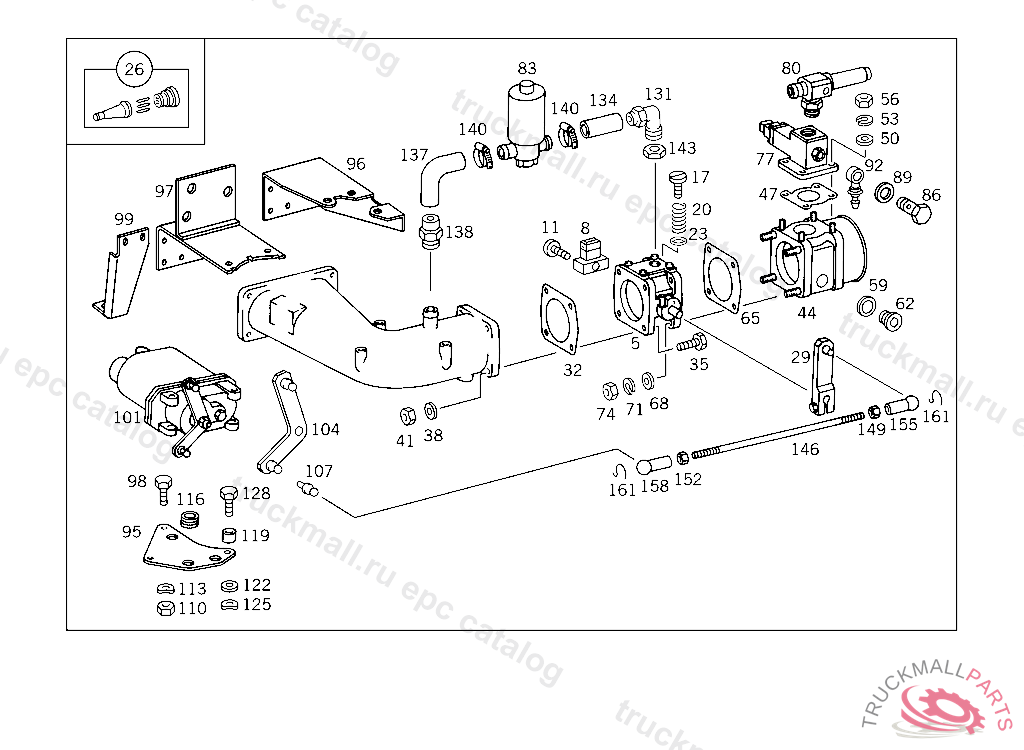

Поз.
Артикул
Описание
5
THROTTLE VALVE
5
THROTTLE VALVE , Replaced By: A4470710210
8
SENDER UNIT
11
SCREW
17
SCREW
17
SCREWTO 447 071 00 10
20
SPRING
23
SEAL RING
23
SEAL RINGTO 447 071 00 10
26
PLUG
29
LEVER THROTTLE VALVE LEVER
29
LEVER , Replaced By: A4470710214
32
GASKET
35
SCREW BRACKET TO CONSOLE M 8X25
38
WASHER , Replaced By: N000125008443
44
MIXTURE CONTROLLER
47
GASKET
50
WASHER
53
SNAP RING
56
NUT
59
SEAL RING
62
SCREW
65
GASKET
65
GASKET , Replaced By: A4470710080
68
WASHER
71
SNAP RING
74
NUT
77
VALVE CONTROL VALVE, COMPONENT PARTS NOT AVAILABLE
80
VALVE SHUT-OFF VALVE, COMPONENT PARTS NOT AVAILABLE
83
VALVE IDLE SPEED ACTUATOR
86
HOLLOW SCREW SHUT-OFF VALVE
86
HOLLOW SCREW SHUT-OFF VALVE,D 291812
89
SEAL RING SHUT-OFF VALVE
92
BANJO UNION SHUT-OFF VALVE
131
ELBOW
134
HOSE HOSE TO OIL FILLER PIPE AND TO PIPE SOCKET ON OIL PAN 135 MM, ORDER BY THE METER
137
HOSE FROM VALVE TO INTAKE MANIFOLD 110 MM
138
FITTING INTAKE MANIFOLD
140
LOOM TIE25-36 MM
140
LOOM TIE , Replaced By: N916017020000
140
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
143
NUT
