Поз.
Артикул
Описание
5

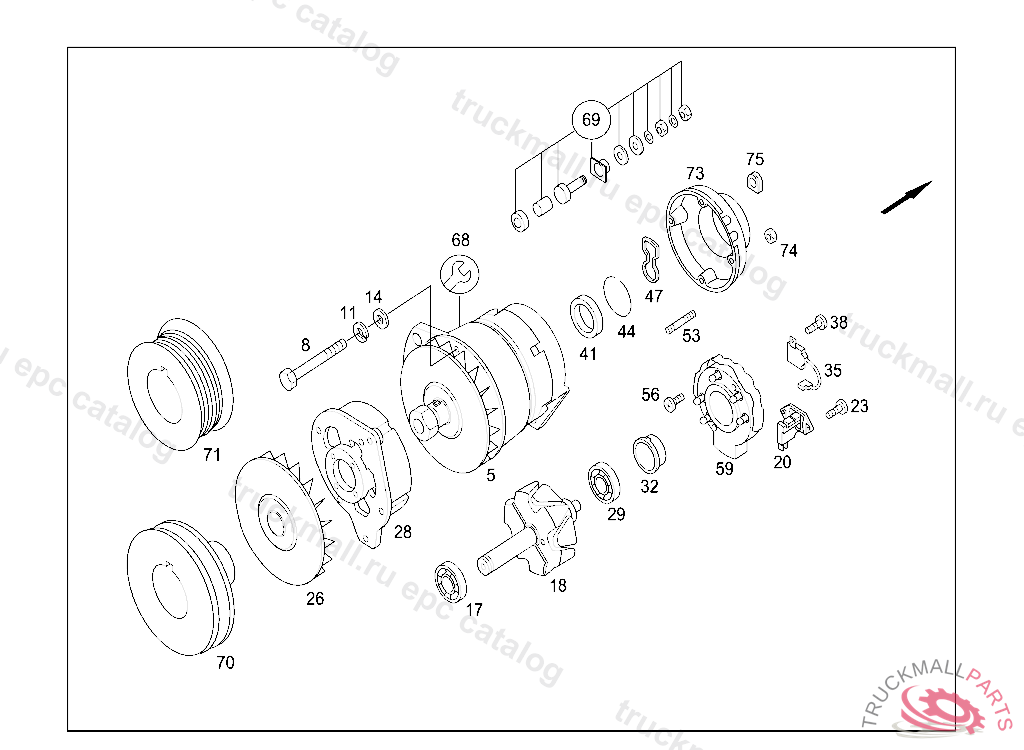

ALTERNATOR28V/140A
5
ALTERNATORBOSCH 28V 70/140A
8
SCREW
11
LOCK WASHER
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
BALL BEARING
18
ROTOR
20
REGULATOR
20
REGULATOR AND CUT-OUT
23
SCREW REGULATOR MOUNTING TO 009 154 07 02
26
FANTO 011 154 50 02
28
BEARING
29
CYLINDR. ROLLER BEARING
32
SPACER RING
35
CONDENSER
38
SCREW APPARATUS PLATE TO CAB,K 062140
41
SEAL RING
44
SNAP RING
47
GASKET
56
SCREW
56
SCREW T-FITTING TO BRACKET M4X25
59
RECTIFIERTO 009 154 08 02,008 154 78 02
68
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
69
REPAIR KIT TERMINAL
70
PULLEY ALTERNATOR BOTTOM,093699
70
PULLEY ALTERNATOR BOTTOM
71
PULLEY ALTERNATOR
73
COVER
74
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
75
CABLE GROMMET. GASKETTO 011 154 50 02
