Mercedes A4229910022 - ШАРОВОЙ ПОДПЯТНИК
OM 447 LA 476.977

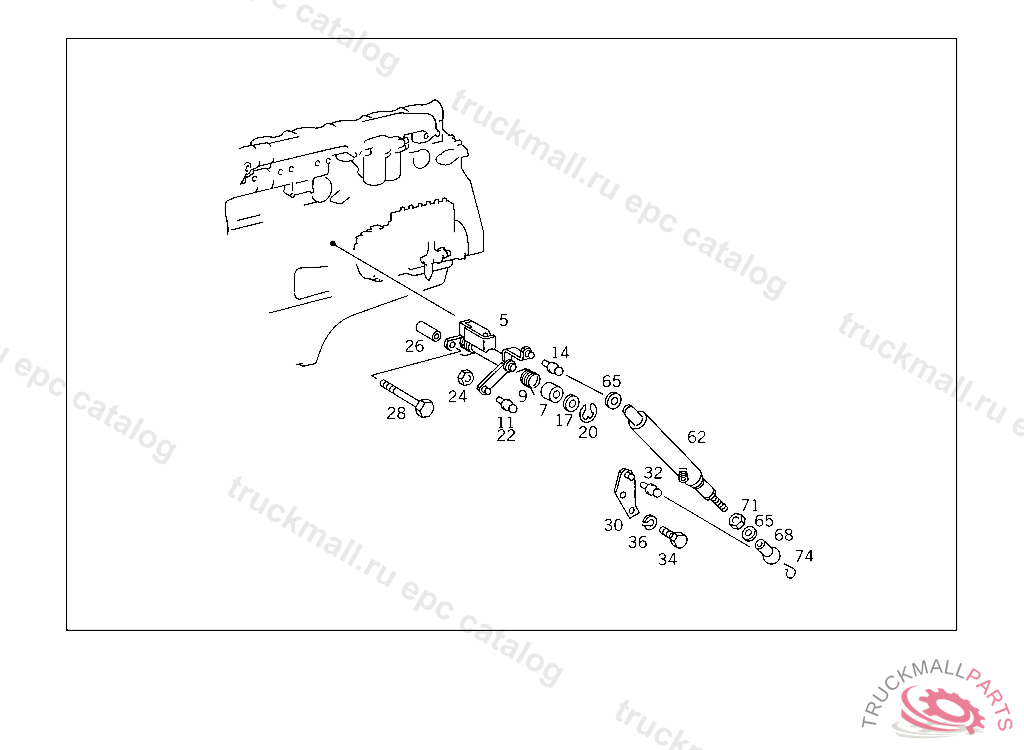

07 INJECTION PUMP - 135 MANUAL CONTROL IL. 1
Поз.
Артикул
Описание
5
A4760707140
BRACKET CONTROL
7
A4039920001
BUSHING MOUNTING
7
A3440727050
BUSHING CONTROL LEVER
9
A4039931110
SPRING
14
N071803010209
BALL PIVOT , Replaced By: A3129910120
17
N000433013000
WASHER
20
N006799009003
LOCK PLATE
22
A4759917015
BALL PIVOT
24
N000934006000
NUT , Replaced By: N304032006004
30
A4750700221
LEVER AT INJECTION PUMP
32
A4759910015
BALL PIVOT
34
N000933006148
SCREW BRACKET TO CONSOLE
36
N000127006206
LOCK WASHER CLAMP TO BRACKET
62
A0000721812
CYLINDER , Replaced By: A0000721512
62
A0000721512
CYLINDER INJECTION PUMP CONTROL
68
A4229910022
BALL SOCKET
68
A4769917022
BALL SOCKET
71
N900071008200
NUT , Replaced By: N900071008100
74
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
