Главная
Mercedes
ENGINE
OM 447 LA
476.992
15 ELECTRICAL EQUIPMENT
030 ALTERNATOR IL. 3

Mercedes A4761507950 - Генератор MB

OM 447 LA 476.992

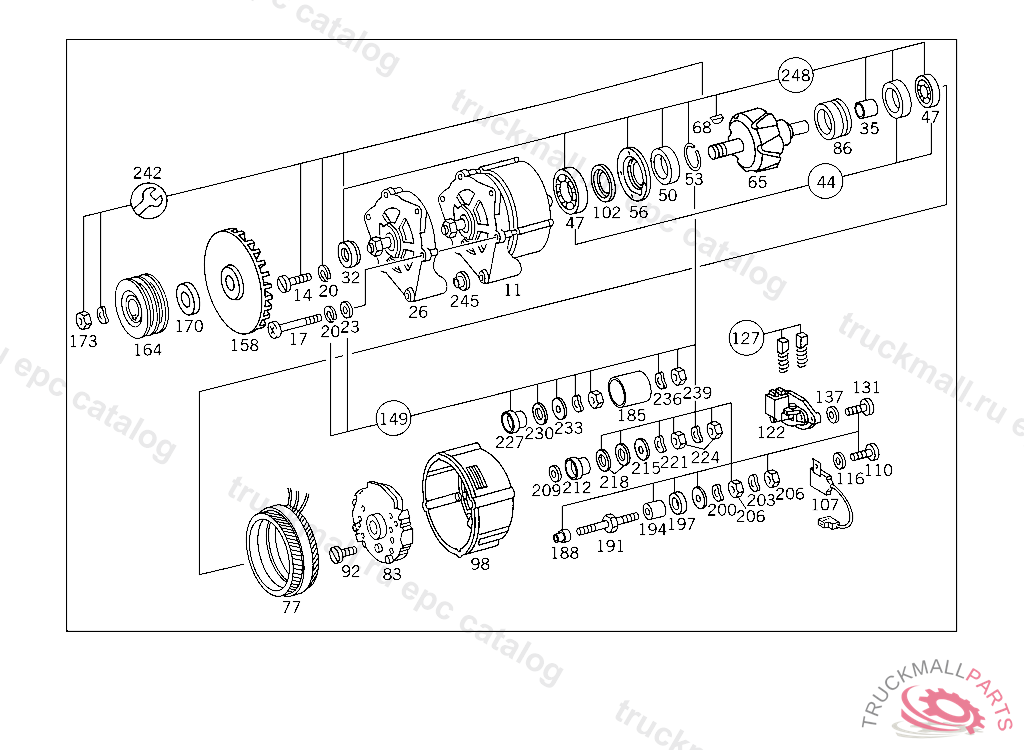

15 ELECTRICAL EQUIPMENT - 030 ALTERNATOR IL. 3

Поз.
Артикул
Описание
11
A4761507550
ALTERNATOR28V/140A, BOSCH
11
A4761507950
ALTERNATOR28V/140A, WAPSA
14
A0019907420
SCREW
17
A0009907721
SCREW
17
A0019902720
SCREW
20
A0009907747
LOCK WASHER
20
A0009907647
LOCK WASHER
23
A0059908540
WASHER
26
A0001541049
BEARING
26
A0001550802
COVER
32
A0001540257
RINGTO 009 154 72 02, 345 154 76 01
35
A0001540051
SPACER RING
44
A0059813225
BALL BEARING FRONT AND REAR
47
A0049811401
CYLINDR. ROLLER BEARING
47
A0059812125
BALL BEARING
50
A0009910150
SET COLLAR
53
A0019943535
SNAP RING
56
A0001540367
COVER
65
A0001546715
ROTOR
68
A0009911767
WOODRUFF KEY
77
A0001519955
EXCITER COIL
83
A0011542816
RECTIFIER
83
A0001545416
RECTIFIERTO 007 154 28 02
86
A0069977447
SEAL RING
92
A0019907620
SCREW
98
A0001541707
COVERTO 009 154 72 02
107
A0011569301
CONDENSER
110
A0019907320
SCREW
116
A0001541875
WASHER
122
A0031541006
REGULATOR AND CUT-OUT
127
A0001548514
CARBON BRUSH SET
131
A0019907520
SCREW
137
A0001541775
WASHER
149
A0001500083
INSULATOR TERMINALS: B+, B-, D+, W
158
A0001559118
FAN
164
A4751557215
PULLEYTO 345 154 76 01, 476 154 76 01
164
A0011552215
PULLEYTO 476 150 79 50
170
A0059908440
WASHER
173
A0039903751
NUT
185
A0001540335
COVER
188
A0009901194
RIVET
191
A0001511270
STUD
194
A0001590524
INSULATING BUSHING
197
A0001590424
INSULATING BUSHING
200
A0001541575
WASHER
203
A0001541875
WASHER
206
A0049908351
NUT
209
A0001541975
WASHER
212
A0001590724
INSULATING BUSHING
215
A0001541675
WASHER
218
A0001560685
INSULATING PLATETO 009 154 72 02,476 154 77 01
221
A0059908640
WASHER
224
A0049908251
NUT
227
A0001590624
INSULATING BUSHING
230
A0001560585
INSULATING PLATE
233
A0001510817
PLATE
236
A0001510917
PLATETO 476 154 77 01
239
N000934005000
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
242
A0001502072
CLAMPING BOLT
245
A0001500177
SPACER
248
A0001500051
REPAIR KIT ROTOR
