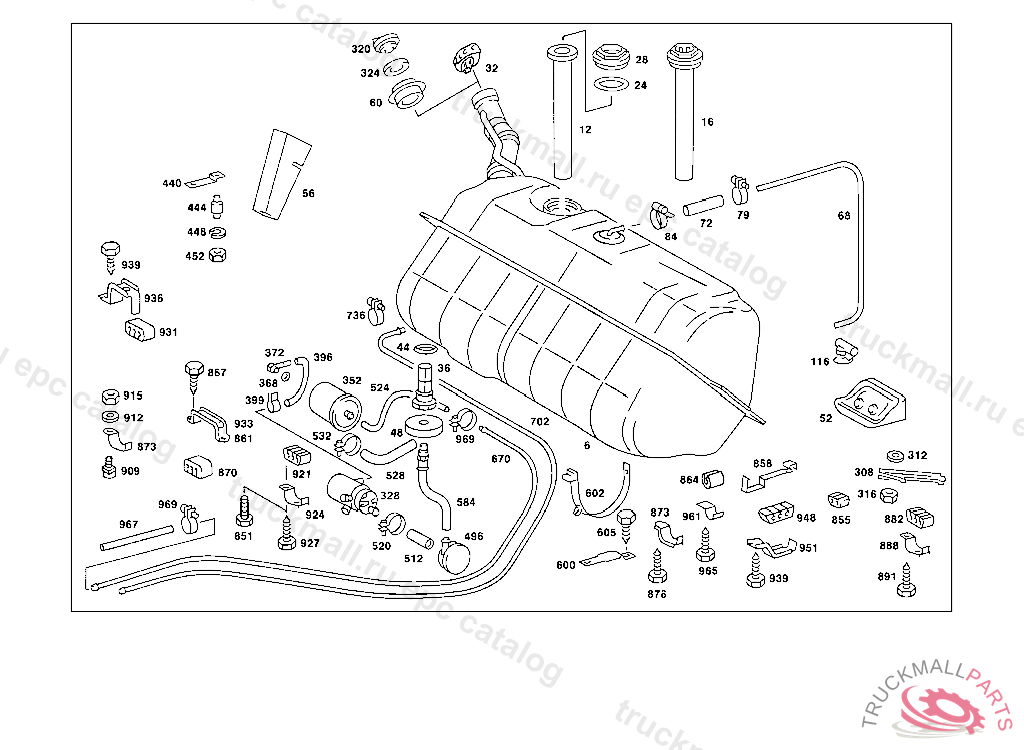

Поз.
Артикул
Описание
6
FUEL TANK
16
GAUGE SENDER UNIT ,116.028,029 035707
24
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
44
SEAL RING
48
GASKET
52
GASKET
56
PAD
60
GROMMET
68
BREATHER PIPE , FROM CHASSIS: 020 101166 024,025 113152 028,029 045936 032,033 079753 036 004031
72
HOSE ***
72
HOSE , Replaced By: A2019970852
84
CLAMP , Replaced By: N000000000665
84
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
116
BREATHER , 020 073526 023 090168 026,028 045001 030 022218 033 038910 120 104560 123,125 070948 126 040619 130,132 089299
308
REINFORCEMENT FUEL TANK TO CONSOLE
312
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
316
NUT
320
FILLER CAP , Replaced By: A0004700730
320
FILLER CAP , Replaced By: A1244700005
324
SEAL RING
600
BRACKET
602
LOOM TIE
605
SHEET METAL SCREW VALVE TO WINDOW SILL
736
CLAMP
870
DAMPING STRIP
873
CLAMP
876
SHEET METAL SCREW VALVE TO WINDOW SILL
888
CLAMP
891
SHEET METAL SCREW VALVE TO WINDOW SILL
909
SCREW LINES UNDER FUEL TANK
912
RUBBER RING SIGNAL LAMP TO ROOF
915
NUT CYLINDER TO BRACKET TO0002902112
915
NUT BATTERY MOUNTING
921
DAMPING STRIP , Replaced By: A1094760384
924
CLAMP
927
SHEET METAL SCREW VALVE TO WINDOW SILL
931
DAMPING STRIP
933
CLAMP
939
SHEET METAL SCREW VALVE TO WINDOW SILL
948
DAMPING STRIP , 107.022 005201 ALSO INSTALLED ON 005190-005192,005194-005199. 107.023 012497 107.024 021804 ALSO INSTALLED ON 021794,021804
951
CLAMP FORKED SUPPORT,TOP
999
FUEL FILTER
999
HOSE , Replaced By: A1074762426
999
HOSE8X12 MM, ORDER BY THE METER
999
FUEL HOSE , Replaced By: A1164701475
999
BREATHER
999
SCREW PLUG , Replaced By: A1234700506
999
FUEL STRAINER , Replaced By: A1234700186
999
FUEL STRAINER , Replaced By: A1234700606
999
DAMPING STRIP , Replaced By: A1094760384
