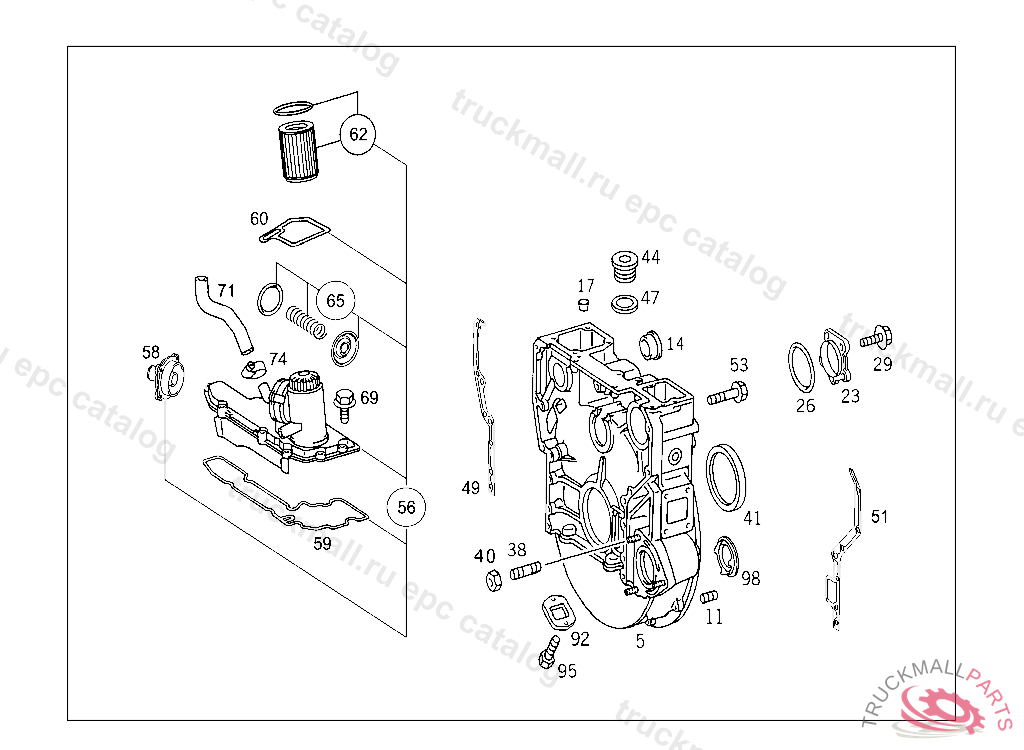

Поз.
Артикул
Описание
5
TIMING CASE
5
TIMING CASE , Replaced By: A5410103033
11
THREADED INSERT ,5 462573
14
FLANGE AIR COMPRESSOR BEARING
17
EXPANSION PLUG TRANSMISSION CASE,SIDE
23
EXPANSION PLUG P.T.O., 401 259615 402 259609 403 259824 404 006166 421 070919 422 070623 423 075287 424 000772
26
SEAL RING HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE
29
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
38
STUD STARTING MOTOR MOUNTING, Replaced By: A0029903314
38
STUD STARTING MOTOR MOUNTING M 12X35
38
STUD BOLT STARTING MOTOR MOUNTING
40
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
41
SEAL RING CRANKSHAFT SEALING,REAR,708527 I.D., 120MM
41
SEAL RING CRANKSHAFT SEALING,REAR,708528 IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: A 013 997 14 47 + A 403 032 03 09 I.D., 115MM
44
SCREW PLUG OIL COOLER,5 360280
47
SEAL RING
49
GASKET RIGHT
51
GASKET LEFT
53
SCREW CONVERTER HOUSING TO TRANSMISSION CASE
53
SCREW TIMING CASE TO CYLINDER CRANKCASE 167 MM, RECOMMENDED FOR TAKING ON STOCK
53
SCREW TIMING CASE TO CYLINDER CRANKCASE 105 MM
56
COVER WITH BREATHING
58
COVER WITH FITTING,*0089132
59
GASKET COVER TO TIMING CASE
60
GASKET
62
ELEMENT OIL SEPARATOR
65
DIAPHRAGM PARTS KIT,*0089132
69
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
71
BREATHER PIPE ENGINE BREATHING, USE UP OLD PART NUMBERS UP TO ENGINE 698866, Replaced By: A5410181512
71
BREATHER PIPE ENGINE BREATHING
71
VENT LINE ENGINE BREATHING
74
CLAMP25-40X13 MM
92
COVER TIMING CASE
95
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
98
PLUG , 401-403 263713 404 006589 421-423 111256 424 001820
