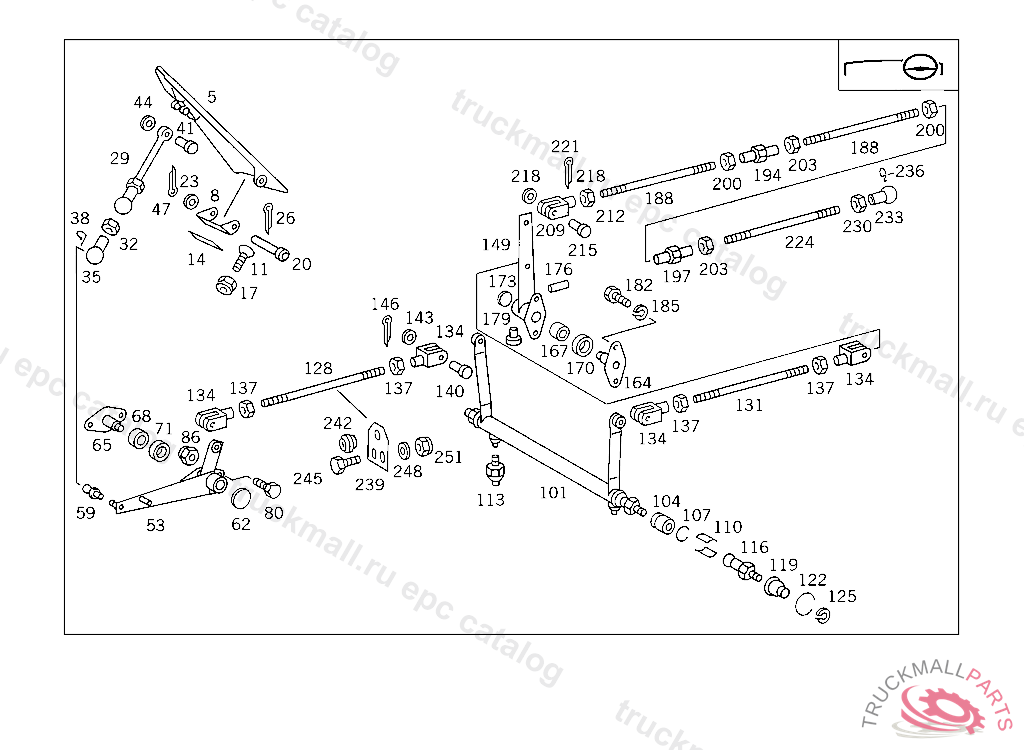

Поз.
Артикул
Описание
5
PEDAL PLATE ACCELERATOR PEDAL
8
ARTICULATION PIECE ACCELERATOR PEDAL
11
SCREW ARTICULATION ELEMENT TO FLOOR
17
NUT , Replaced By: N913004008001
20
PIN ACCELERATOR PEDAL TO JOINT
23
WASHER RADIATOR TO RUBBER MOUNTING
23
WASHER , Replaced By: N000125010532
26
COTTER PIN CYLINDER TO BRACKET
29
ROD ACCELERATOR PEDAL
32
NUT , Replaced By: N304032008006
35
BALL SOCKET ROD TO BALL PIVOT
38
SECURING CLIP. CIRCLIP
41
PIN ROD TO PEDAL PLATE
44
WASHER COMPRESSED AIR LINE TO BRACKET
44
WASHER , Replaced By: N009021006208
47
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
59
BALL PIVOT BOTTOM B13X5 MM
62
EXPANSION PLUG
65
PIN INTERMEDIATE LEVER
68
BUSHING ,950252
71
SEAL RING
80
SCREW CLAMP TO BRACKET AND TO PIPE
134
YOKE OPERATING ROD TO BRACKET
134
YOKE OPERATING ROD TO BRACKET
137
NUT BALL PIVOT TO LEVER
137
NUT BALL PIVOT TO LEVER
140
PIN PULL ROD TO LEVER
140
PIN PULL ROD TO LEVER
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
146
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
146
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
149
LEVER INTERMEDIATE LEVER,950252
149
LEVER , Replaced By: A6973000025
164
PIN INTERMEDIATE LEVER
167
BUSHING ,950252
170
SEAL RING
173
EXPANSION PLUG
176
CYLINDRICAL PIN
179
GREASE NIPPLE
182
SCREW CLAMP TO BRACKET AND TO PIPE
185
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
188
PULL ROD FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT 3500 MM
188
PULL ROD FROM DOUBLE LEVER TO TURNBUCKLE NUT 2400 MM
194
TURNBUCKLE
197
TURNBUCKLE FROM TURNBUCKLE IN FRONT OF REAR AXLE TO TURNBUCKLE BEHIND REAR AXLE
200
NUT BALL PIVOT TO LEVER
203
NUT L.H. THREAD
209
YOKE OPERATING ROD TO BRACKET
212
NUT BALL PIVOT TO LEVER
215
PIN PULL ROD TO LEVER
218
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
221
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
224
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
230
NUT BALL PIVOT TO LEVER
233
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
236
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
239
BRACKET PULL ROD
242
BUSHING MANUAL CONTROL CABLE
245
SCREW CLAMP TO BRACKET AND TO PIPE
248
WASHER EXHAUST MUFFLER TO STRAP
248
WASHER , Replaced By: N000125008443
251
NUT , Replaced By: N913004008001
