Поз.
Артикул
Описание

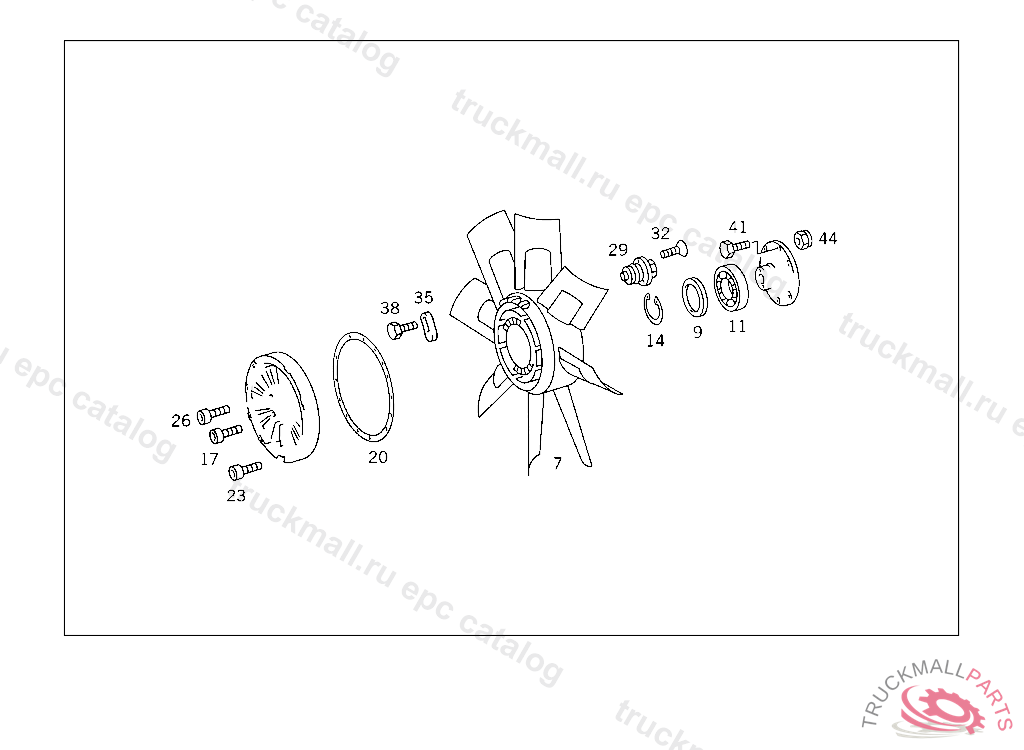

7
FAN POWER SAVER FAN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
9
SEAL RINGTO 000 205 58 06
11
BALL BEARINGTO 002 205 19 06,63 06, TO BE ADAPTED DURING ASSEMBLY
14
LOCK AS REQUIRED 2.3 MM
14
LOCK AS REQUIRED 2.2 MM
14
LOCK AS REQUIRED 2.1 MM
14
LOCK AS REQUIRED 2.0 MM
17
SCREW
20
GASKETTO 002 205 19 06,63 06
23
SCREW OIL PIPE TO SLEEVE VALVE
26
SCREW FUSE BOX TO SIDE MEMBER,5 097182
26
SCREW
29
CLAMPING PIECE (SLIDE)
32
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
35
GUIDE
38
SCREW
41
SCREW , Replaced By: N304017008024
44
NUT BRACKET TO SIDE MEMBER
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
